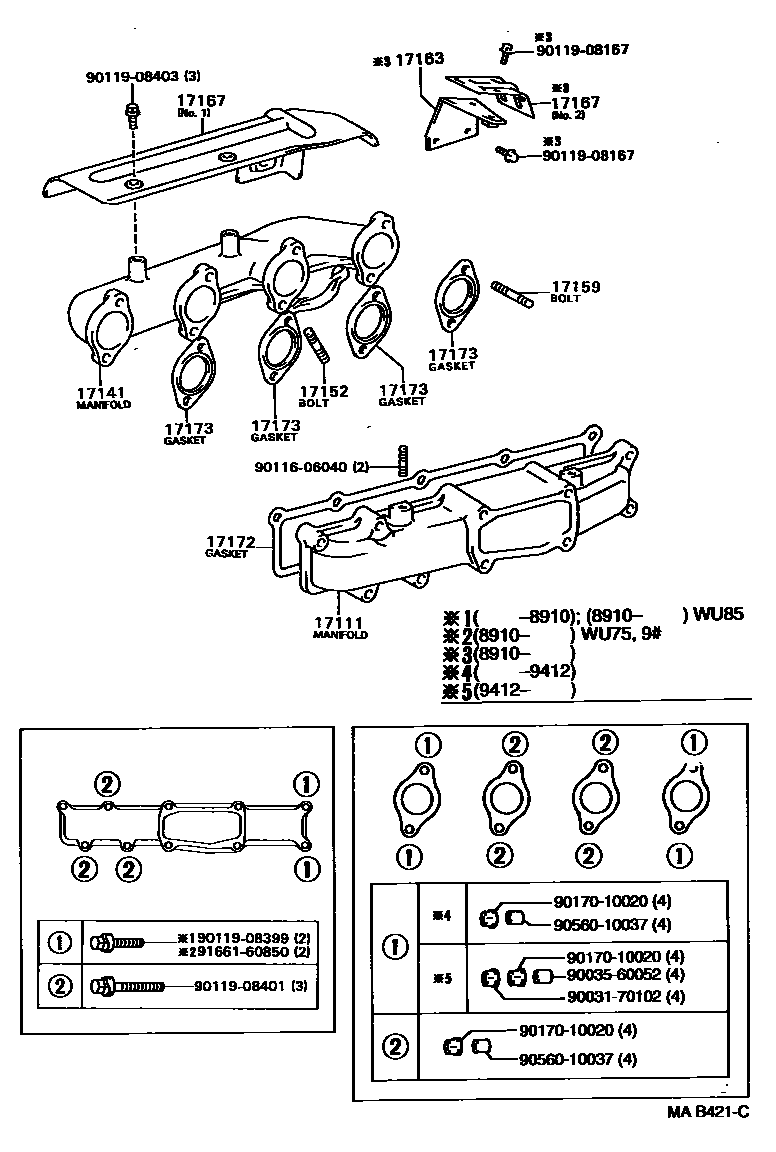

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17111-71010i3Y..YU6#,70198808-199505

main17111-72011i3YP..YU60198811-198904

sub17111-73020

main17111-73020i3YP..YU60198904-199310

main17111-78010i1W..WU75,85,9#198808-199505

sub17111-78011

17141MANIFOLD, EXHAUST

main17141-71010i3Y..YU60199309-199505

main17141-71020i3Y..YU6#,70198808-199309

main17141-72010i3YP..YU60198811-199310

main17141-78010i1W..WU75,9#198808-198910

sub17141-78020

main17141-78020i1W..WU75,85,9#198910-199505

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i3Y#..YU6#,70198808-198909

main90116-10110i1W..WU75,85,9#198808-199505

main90116-10146i3Y#..YU6#,70199001-199505

main90116-10148i3Y#..YU6#,70198909-199001

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90031-16051i1W..WU75,85,9#199412-199505

main90116-10063i3Y#..YU6#,70198808-199505

main90116-10077i1W..WU75,85,9#198808-199412

main90116-10077i1W..WU75,85,9#199412-199505

main90116-10077i1W..WU75,85,9#199412-199505

17163BRACKET, HEAT INSULATOR, NO.1

main17163-78010i1W..WU75,9#;1W..WU85..DYN;1W..WU85..TOY..T3198910-199505

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56023i1W..WU75,85,9#198808-199012

main17167-71020i3Y..YU6#,70198808-199505

main17167-72011i3YP..YU60198811-199310

main17167-78010i1W..WU75,9#;1W..WU85..DYN;1W..WU85..TOY..T3198910-199505

main17167-78020i1W..WU75,85,9#199012-199505

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-71011i3YP..YU60198811-199310

main17172-73010i3Y..YU6#,70198808-199505

main17172-78010i1W..WU75,85,9#198808-199012

sub17172-78011

main17172-78011i1W..WU75,85,9#199012-199505

subS1717-11741

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78010i1W..WU75,9#198808-198910

sub17173-78020

main17173-78020i1W..WU75,85,9#198910-199505

subS1710-41220

9003170102

main90031-70102

9003560052

main90035-60052

9011606040

main90116-06040

9011908167

main90119-08167

9011908399

main90119-08399

9011908401

main90119-08401

9011908403

main90119-08403

9017010020

main90170-10020

9056010037

main90560-10037

9166160850

main91661-60850

18 parts on this diagram · 2 diagrams in section
