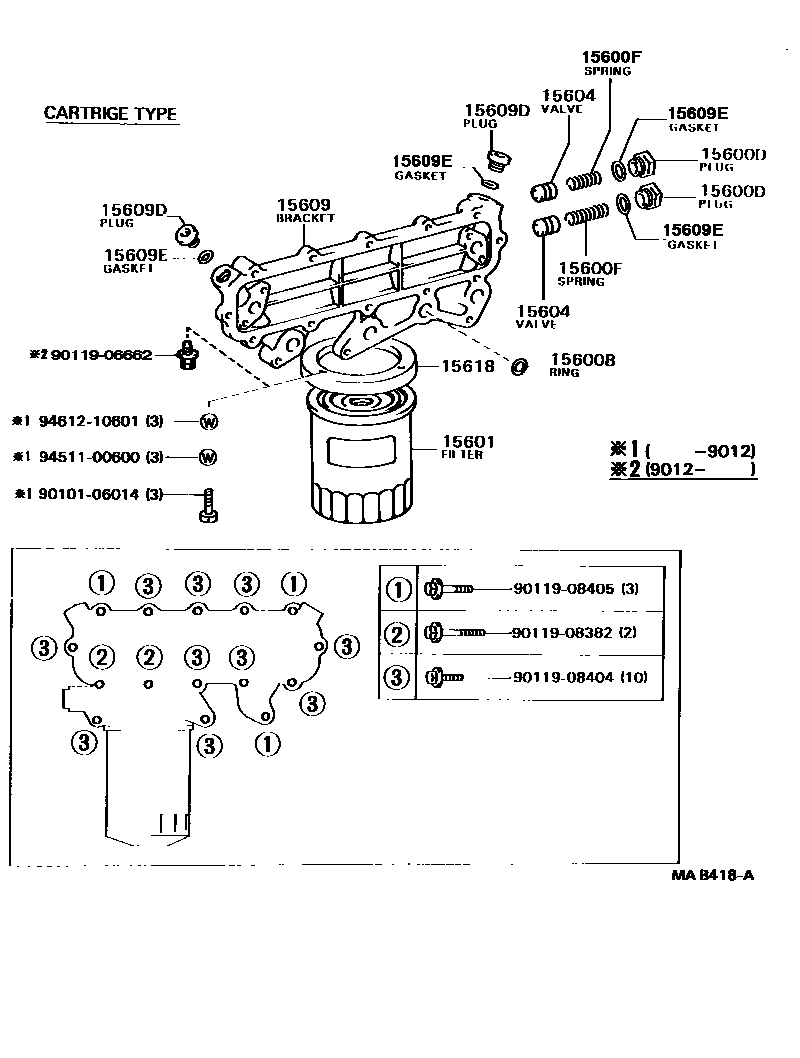

OIL FILTER

0001 1 0002 1

15600BRING, O, NO.1(FOR OIL FILTER)

main90301-19005×4i1W..WU75,85,9#198808-199505

15600DPLUG(FOR OIL FILTER)

main15798-78010×2i1W..WU75,85,9#198808-199505

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main15661-78010×2i1W..WU75,85,9#198808-199505

15601FILTER SUB-ASSY, OIL

main15601-33021i3Y#..YU6#,70198808-199308

main15601-78010i1W..WU75,85,9#198808-199505

main90915-10002i3Y#..YU60..T2,T3,TW1,TW2199308-199505

15604VALVE SUB-ASSY, OIL SAFETY

main15624-78010×2i1W..WU75,85,9#198808-199505

15609BRACKET SUB-ASSY, OIL FILTER

main15609-71011i3Y#..YU6#,70198808-199308

main15671-73020i3Y#..YU60..T2,T3,TW1,TW2199308-199505

main15701-78010i1W..WU75,85,9#198808-199505

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20006×2i1W..WU75,85,9#198808-199505

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90301-99025×4i1W..WU75,85,9#198808-199505

15618PLATE, OIL FILTER

main15618-78010i1W..WU75,85,9#198808-199505

9010106014

main90101-06014

9011906662

main90119-06662

9011908382

main90119-08382

9011908404

main90119-08404

9011908405

main90119-08405

9451100600

main94511-00600

9461210601

main94612-10601

16 parts on this diagram · 2 diagrams in section
