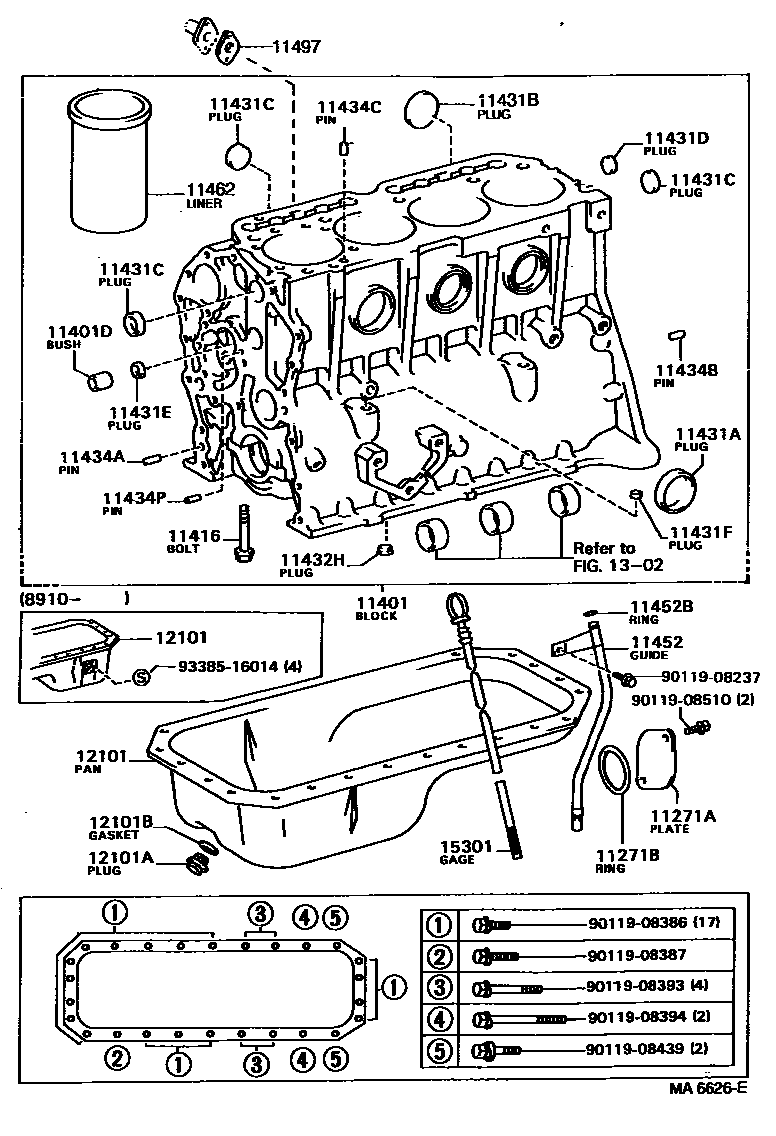

CYLINDER BLOCK

0001 1 0002 1

11271ACOVER, CYLINDER BLOCK, REAR

main11271-78010i1W..WU75,85,9#198808-199307

main11271-78020i1W..WU75,85,9#199307-199505

11271BRING, O(FOR CYLINDER BLOCK REAR PLATE)

main90301-69001i1W..WU75,85,9#198808-199505

11401BLOCK SUB-ASSY, CYLINDER

main11401-79086i3Y#..YU6#,70198808-198908

main11401-79088i3Y#..YU6#,70198908-199308

main11401-79735i3Y#..YU6#,70199308-199505

main11410-78010i1W..WU75,85,9#198808-199505

11401DBUSH(FOR OIL PUMP COVER)

main90999-71055i1W..WU75,85,9#198808-199505

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-14024×10i1W..WU75,85,9#198808-199505

main90910-02032×10i3Y#..YU6#,70198808-199505

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-50002×3i1W..WU75,85,9#198808-199505

main96411-01800i3Y#..YU6#,70198808-199505

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-40003×3i1W..WU75,85,9#198808-199505

main96411-43500×4i3Y#..YU6#,70198808-199505

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-36001×5i1W..WU75,85,9#198808-199505

main96411-45000i3Y#..YU6#,70198808-199505

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-24001i1W..WU75,85,9#198808-199505

main96411-45000i3Y#..YU6#,70198808-199505

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-17002×5i1W..WU75,85,9#198808-199505

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90331-14005i1W..WU75,85,9#198808-199505

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90033-45014×2i1W..WU75,85,9#199407-199505

main90344-21001×2i1W..WU75,85,9#198808-199407

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08015×2i1W..WU75,85,9#198808-199505

main90250-08120×2i3Y#..YU6#,70198808-199505

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120×2i3Y#..YU6#,70198808-199505

main90250-10113×2i3Y#..YU6#,70198808-199505

main90250-12003×2i1W..WU75,85,9#198808-199505

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08016×2i1W..WU75,85,9#198808-199505

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

main90250-05022i1W..WU75,85,9#198808-199505

11452GUIDE, OIL LEVEL GAGE

main11452-71020i3Y#..YU6#,70198808-199505

main11452-78010i1W..WU75,85,9#198808-199505

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09006i1W..WU75,85,9#198808-199505

11462LINER, CYLINDER

main11461-78020×4i1W..WU75,85,9#198808-199505

MARK"W"

main11461-78030×4i1W..WU75,85,9#198808-199505

MARK"X"

main11461-78040×4i1W..WU75,85,9#198808-199505

MARK"Y"

main11461-78050×4i1W..WU75,85,9#198808-199505

MARK"Z"

11497GASKET, CYLINDER BLOCK OIL HOLE

main11497-78010i1W..WU75,85,9#199312-199505

12101PAN SUB-ASSY, OIL

main12101-71021i3Y#..YU6#,70198808-198910

main12101-73020i3Y#..YU6#,70198910-199505

main12101-78010i1W..WU93;1W..WU85..T4199109-199505

main12111-78010i1W..WU75,9#198808-198910

main12111-78020i1W..WU90;1W..WU75,85,95..DM1,T3198910-199505

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3Y#..YU6#,70198808-199505

main90341-18089i1W..WU75,85,9#198808-199505

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90202-18001i1W..WU75,85,9#198808-199012

main90202-18002i1W..WU75,85,9#199012-199505

main90430-12019i3Y#..YU6#,70198808-199010

main90430-12027i3Y#..YU6#,70199010-199312

main90430-12031i3Y..YU60199312-199505

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-71020i3Y#..YU6#,70198808-199505

main15301-78010i1W..WU75,85,9#198808-199505

9011908237

main90119-08237

9011908386

main90119-08386

9011908387

main90119-08387

9011908393

main90119-08393

9011908394

main90119-08394

9011908439

main90119-08439

9011908510

main90119-08510

9338516014

main93385-16014

33 parts on this diagram · 2 diagrams in section
