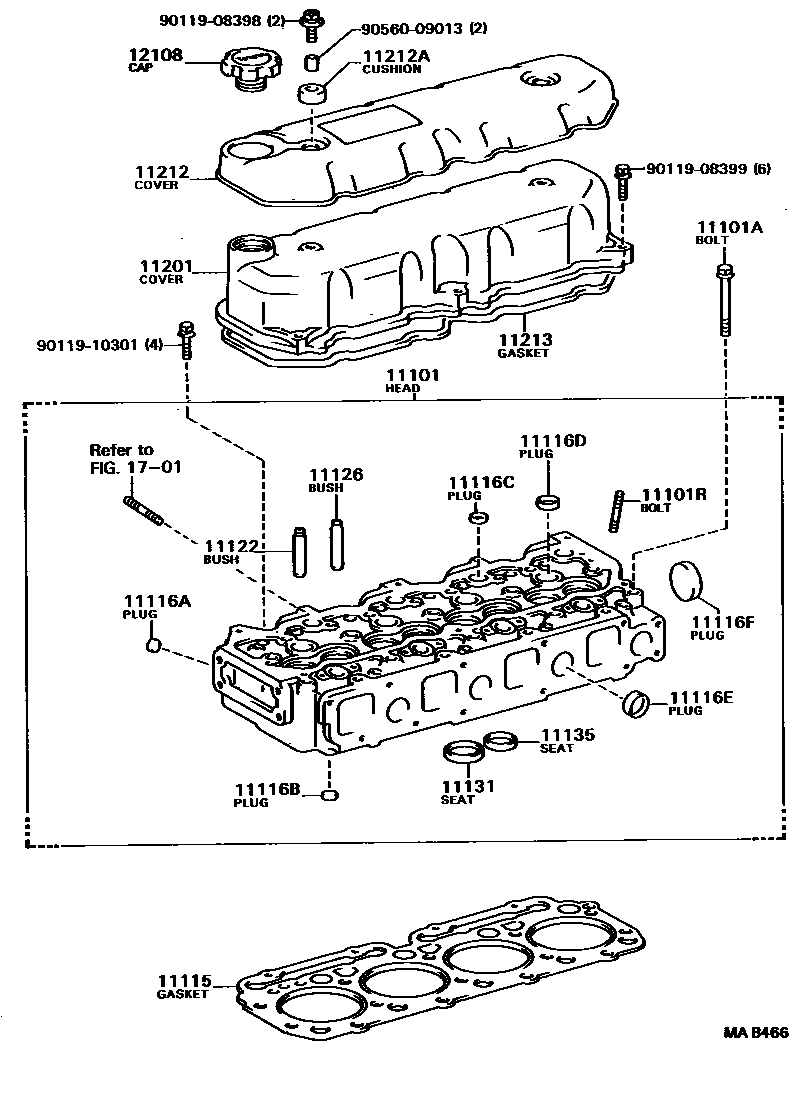

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-72011i3YP..YU60198811-199308

sub11101-72012

main11101-72012i3YP..YU60199308-199310

sub11101-72013

sub13711-73010

main11101-73010i3Y..YU6#,70199008-199505

main11101-73020i3Y..YU6#,70198808-199008

main11110-78010i1W..WU75,9#198808-198910

sub11110-78030

main11110-78010i1W..WU75,90,95198910-199505

sub11110-78030

main11110-78030i1W..WU75,85,9#198910-199412

sub11110-89010

sub90031-70102

sub90035-60052

sub90560-10037

main11110-89010i1W..WU75,85,9#199412-199505

sub11110-78170

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i3Y#..YU6#,70198808-199505

main90105-12073i1W..WU75,85,9#198808-199505

sub90031-01199

11101RBOLT, STUD(FOR FUEL PIPE)

main90116-08173i1W..WU75,85,9#198808-199505

11115GASKET, CYLINDER HEAD

main11115-71011i3Y..YU6#,70198808-198811

sub11115-73040

main11115-73040i3Y#..YU6#,70198811-199308

sub11115-73041

main11115-73041i3Y#..YU6#,70199308-199505

main11115-78011i1W..WU75,85,9#198808-199012

sub11115-78012

main11115-78011i1W..WU75,90,95199012-199505

sub11115-78012

main11115-78012i1W..WU75,85,9#199012-199505

subS1111-52340

11116APLUG, TIGHT, NO.1

main90331-14005i1W..WU75,85,9#198808-199505

11116BPLUG, TIGHT, NO.2

main90331-22001i1W..WU75,85,9#198808-199505

11116CPLUG, TIGHT, NO.3

main90331-24001i1W..WU75,85,9#198808-199505

11116DPLUG, TIGHT, NO.4

main90331-26001i1W..WU75,85,9#198808-199505

11116EPLUG, TIGHT, NO.5

main90331-30001i1W..WU75,85,9#198808-199505

11116FPLUG, TIGHT, NO.6

main90331-50002i1W..WU75,85,9#198808-199505

11122BUSH, INTAKE VALVE GUIDE

main11122-71020i3Y#..YU6#,70198808-199505

main11122-78010i1W..WU75,85,9#198808-199505

sub11122-89102

main11123-71020i3Y#..YU6#,70198808-199505

11126BUSH, EXHAUST VALVE GUIDE

main11122-78010i1W..WU75,85,9#198808-199505

sub11122-89102

main11126-71020i3Y#..YU6#,70198808-199505

main11127-71020i3Y#..YU6#,70198808-199505

11131SEAT, INTAKE VALVE

main11131-63010i3Y..YU6#,70198808-199505

main11131-72010i3YP..YU60198811-199310

main11131-78010i1W..WU75,85,9#198808-199505

sub11131-78050

main11132-63010i3Y..YU6#,70198808-199505

11135SEAT, EXHAUST VALVE

main11135-71010i3Y..YU6#,70198808-199505

main11135-72010i3YP..YU60198811-199310

main11135-78010i1W..WU75,85,9#198808-199505

sub11135-78020

main11136-71010i3Y..YU6#,70198808-199505

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-71011i3Y#..YU6#,70199208-199505

sub11201-71012

main11201-79035i3Y#..YU6#,70198808-199208

sub11201-71011

sub11213-71020

sub90210-09001

main11211-78010i1W..WU75,85,9#198808-199505

sub11211-E0240

11212COVER, CYLINDER HEAD, NO.2

main11201-78010i1W..WU75,85,9#198808-199505

11212ACUSHION, CYLINDER HEAD COVER

main90540-11005i1W..WU75,85,9#198808-199505

11213GASKET, CYLINDER HEAD COVER

main11213-71020i3Y#..YU6#,70198808-199505

main11213-78010i1W..WU75,85,9#198808-199505

subS1121-31550

12108CAP SUB-ASSY, OIL FILLER

main12108-78010i1W..WU75,85,9#198808-199505

sub12180-78010

main12180-61010i3Y#..YU6#,70198808-199003

sub12180-70020

main12180-73010i3Y#..YU6#,70199011-199103

sub12180-73011

main12180-73011i3Y#..YU6#,70199103-199505

main12180-75010i3Y#..YU6#,70199003-199011

sub12180-73011

1701

9011908398

main90119-08398

9011908399

main90119-08399

9011910301

main90119-10301

9056009013

main90560-09013

24 parts on this diagram · 2 diagrams in section
