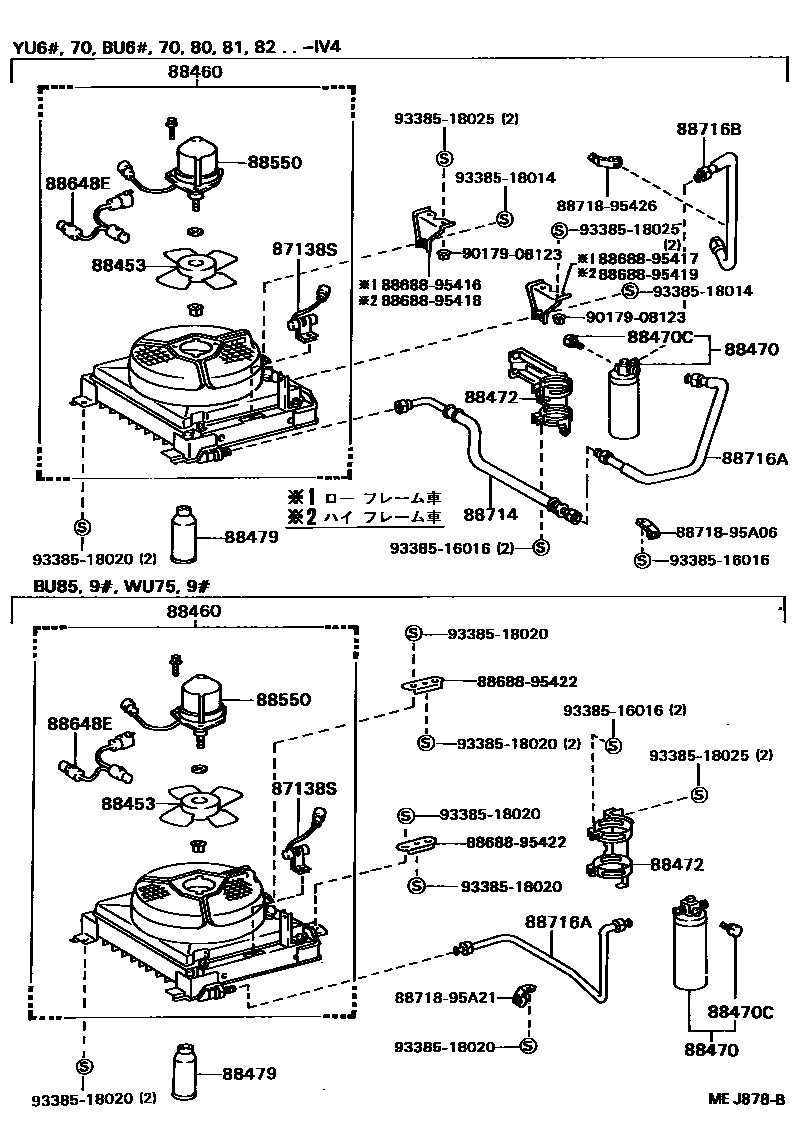

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

87138SRESISTOR, BLOWER

main87138-95410iYU6#,70198708-198808

main87138-95411iWU75,9#198708-198808

88453FAN, COOLING (FOR CONDENSER)

main88453-95A01iWU75,9#,YU6#,70198708-198808

88460CONDENSER ASSY, COOLER

main88460-95405iYU6#,70198708-198808

main88460-95409iWU75,9#198708-198808

88470RECEIVER & DRYER ASSY, COOLER

main88471-95400iYU6#,70198708-198808

main88471-95401iWU75,9#198708-198808

88470CBOLT, FUSE

main88475-12020iWU75,9#,YU6#,70198708-198808

88472BRACKET, RECEIVER TANK, NO.1

main88472-95400iYU6#,70198708-198808

main88472-95406iWU75,9#198708-198808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iWU75,9#; YU6#,70198708-198808

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-95406iYU6#,70198708-198808

main87104-95407iWU75,9#198708-198808

88648EWIRING, COOLER

main88648-95411iWU75,9#,YU6#,70198708-198808

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-95405iYU6#,70198708-198808

main88721-95409iWU75,9#198708-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-95403iYU6#,70198708-198808

main88716-95410iWU75,9#198708-198808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-95405iYU6#,70198708-198808

8868895416BRACKET, COOLER DIAPHRAGM

main88688-95416

8868895417BRACKET, COOLER DIAPHRAGM

main88688-95417

8868895418BRACKET, COOLER DIAPHRAGM

main88688-95418

8868895419BRACKET, COOLER DIAPHRAGM

main88688-95419

8868895422BRACKET, COOLER DIAPHRAGM

main88688-95422

8871895426PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95426

8871895A06PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A06

8871895A21PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A21

9017908123

main90179-08123

9338516016

main93385-16016

9338518014

main93385-18014

9338518020

main93385-18020

9338518025

main93385-18025

25 parts on this diagram · 3 diagrams in section
