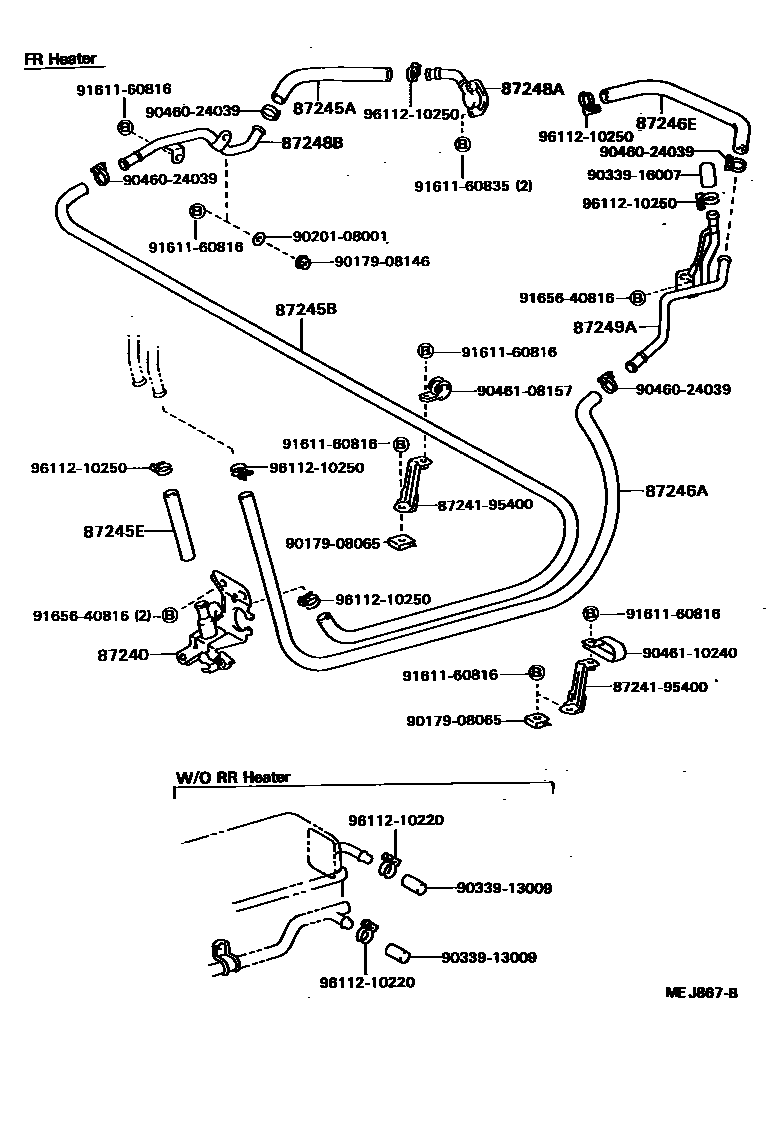

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-95407iWU75,9#,YU6#,70198708-198808

87245AHOSE, HEATER WATER, INLET A

main87245-95452iWU75,9#198708-198808

main99556-30300iYU6#,70198708-198808

87245BHOSE, HEATER WATER, INLET B

main99556-30500iWU75,9#198708-198808

main99556-30980iYU6#,70198708-198808

87245EHOSE, HEATER WATER, INLET E

main99556-30100iWU75,9#,YU6#,70198708-198808

87246AHOSE, HEATER WATER, OUTLET A

main99556-30700iWU75,9#198708-198808

87246EHOSE, HEATER WATER, OUTLET E

main87245-92600iYU6#,70198708-198808

main87245-95472iWU75,9#198708-198808

87248APIPE, HEATER WATER INLET, A

main87208-28010iYU6#,70198708-198808

main87248-14090iWU75,9#198708-198808

87248BPIPE, HEATER WATER INLET, B

main87208-95407iYU6#,70198708-198808

87249APIPE, HEATER WATER OUTLET, A

main87208-95411iYU6#,70198708-198808

3033913009

main30339-13009

8724195400CONTROLLER, WATER VALVE

main87241-95400

9017908065

main90179-08065

9017908146

main90179-08146

9020108001

main90201-08001

9033913009

main90339-13009

9033916007

main90339-16007

9046024039

main90460-24039

9046108157

main90461-08157

9046110240

main90461-10240

9161160816

main91611-60816

9161160835

main91611-60835

9165640816

main91656-40816

9611210220

main96112-10220

9611210250

main96112-10250

24 parts on this diagram · 3 diagrams in section
