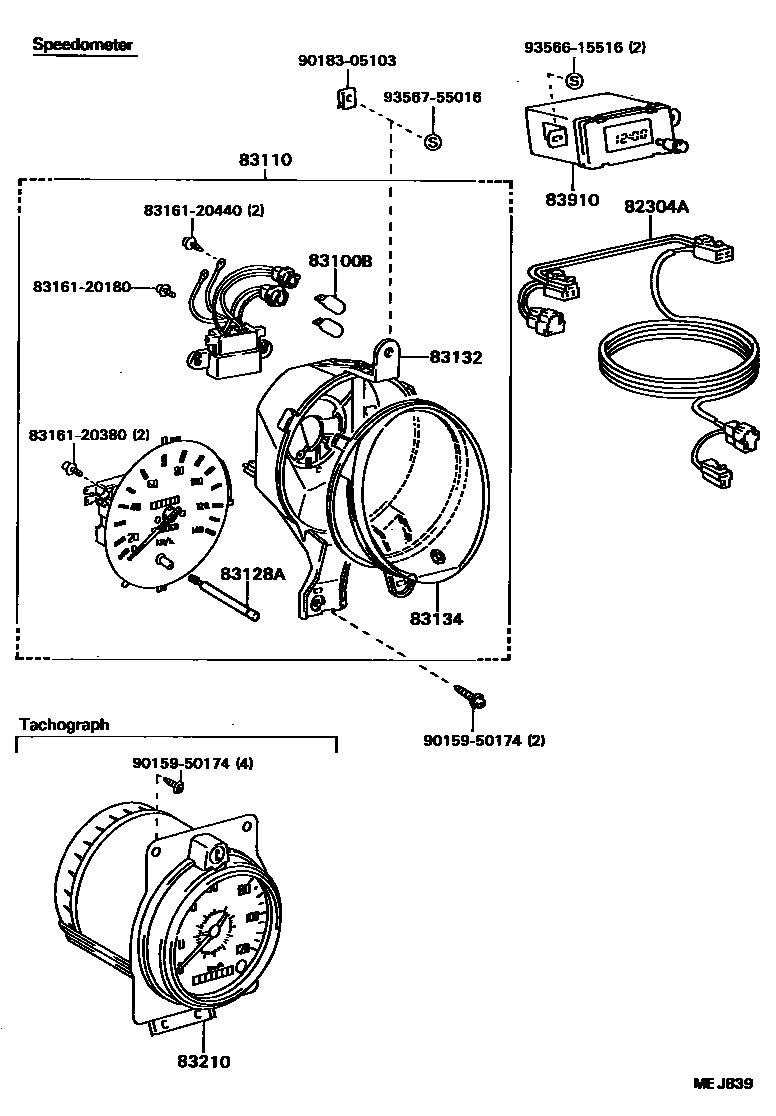

METER

0001 1 0002 1 0003 1 0004 1

82304AWIRE SUB-ASSY, CLOCK

main82304-95408iWU75,9#,YU6#,70198708-198808

83100BBULB, COMBINATION METER, NO.1

main90981-11022iWU75,9#198708-198808

main99132-12034×2iYU6#,70198708-198808

main99134-12030×2iWU75,9#198708-198808

83110SPEEDOMETER ASSY

main83110-95449iWU75,9#198708-198808

main83110-95450iYU6#,70198708-198808

83128AKNOB, METER

main83128-89300iWU75,9#,YU6#,70198708-198808

83132CASE, COMBINATION METER

main83132-95404iWU75,9#,YU6#,70198708-198808

SPEEDOMETER

main83132-95B00iWU75,9#198708-198808

COMBINATION GAGE

main83132-95B01iYU6#,70198708-198808

COMBINATION GAGE

83134COVER, COMBINATION METER, NO.1

main83134-95408iWU75,9#,YU6#,70198708-198808

SPEEDOMETER

main83134-95B00iWU75,9#198708-198808

COMBINATION GAGE

main83134-95B01iYU6#,70198708-198808

COMBINATION GAGE

83210TACHOGRAPH ASSY

main83210-95413iWU75,9#198708-198808

main83210-95414iWU75,9#198708-198808

83910CLOCK ASSY

main83910-95402iWU75,9#198708-198808

main83910-95403iYU6#,70198708-198808

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9015950174

main90159-50174

9018305103

main90183-05103

9356615516

main93566-15516

9356755016

main93567-55016

15 parts on this diagram · 4 diagrams in section
