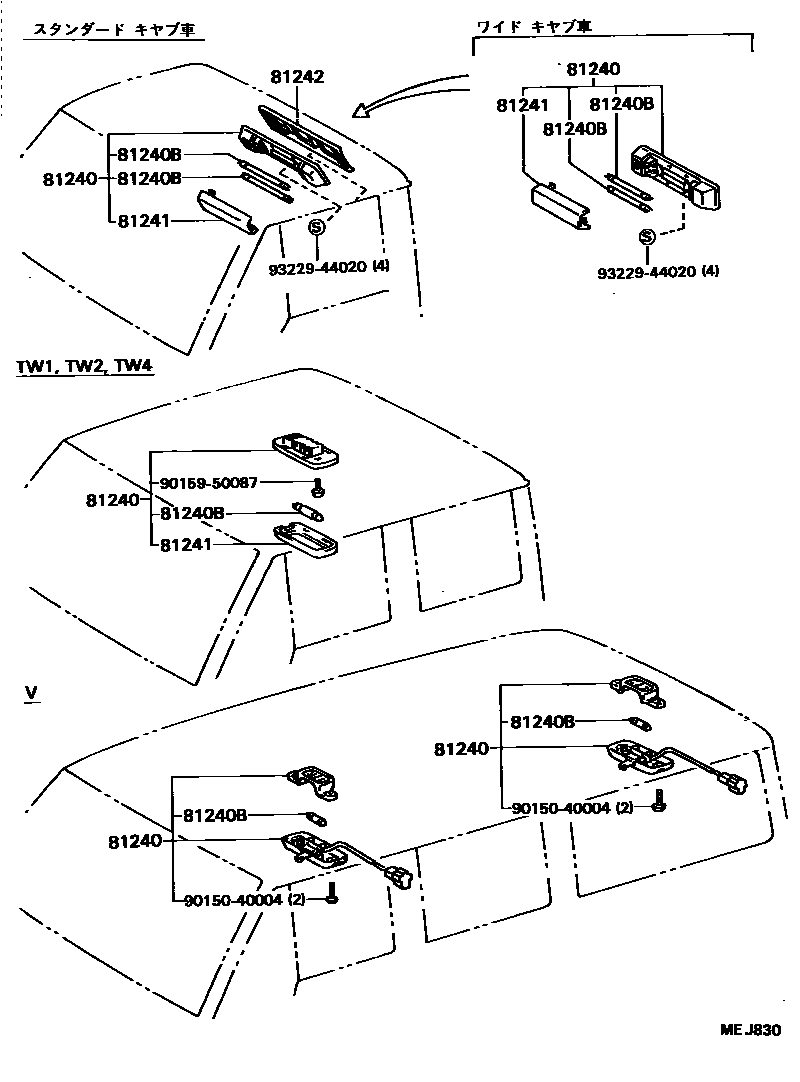

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-95405-03iWU75,9#..TOY198708-198808

GRAY,TRIM8#

main81240-95405-06iWU75,9#..DYN198708-198808

BROWN,TRIM4#

main81240-95704-03iYU60..TOY..175198708-198808

GRAY,TRIM8#

main81240-95704-06iYU60..DYN..175198708-198808

BROWN,TRIM4#

main81240-95A04×2iYU70198708-198808

81240BBULB, ROOM LAMP, NO.1

main90981-11004iYU60..175; YU70198708-198808

main90981-11033×2iWU75,9#198708-198808

81241LENS, ROOM LAMP, NO.1

main81241-95013iYU60..175198708-198808

main81241-95J00iWU75,9#198708-198808

81242GASKET, ROOM LAMP, NO.1

main81242-95400iWU75,9#198708-198808

9015040004

main90150-40004

9015950087

main90159-50087

9322944020

main93229-44020

7 parts on this diagram · 1 diagram in section
