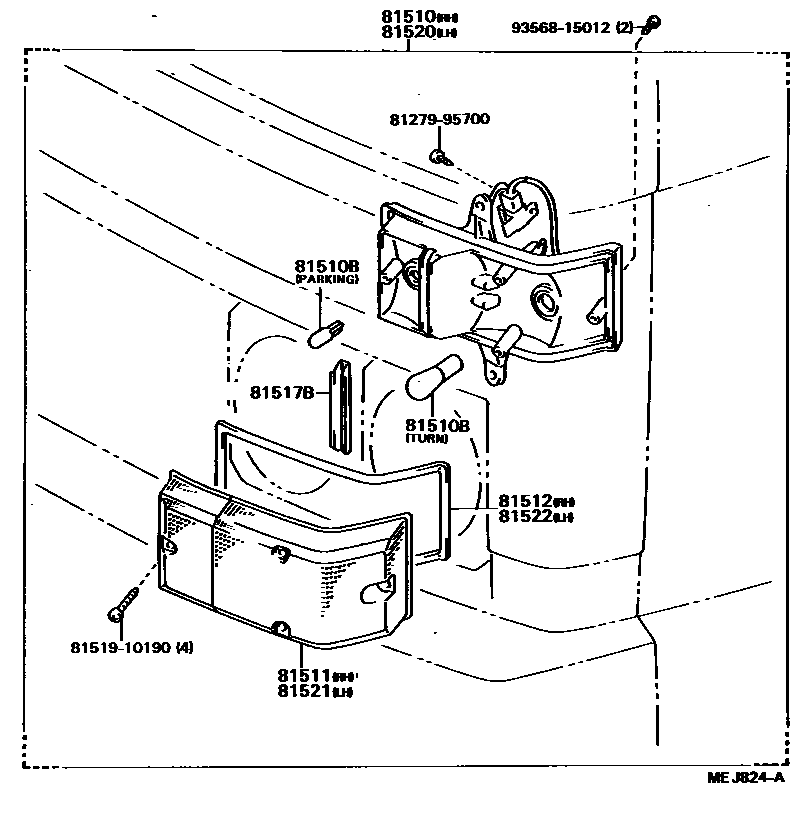

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-95406iWU75,9#198708-198808

main81510-95412iYU6#,70198708-198808

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-12009×2iWU75,9#198708-198808

main99132-11210×2iYU6#,70198708-198808

main99132-12050×2iYU6#,70198708-198808

main99134-11250×2iWU75,9#198708-198808

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-95406iWU75,9#,YU6#,70198708-198808

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-95406iWU75,9#,YU6#,70198708-198808

81517BSHADE, FRONT TURN SIGNAL LAMP

main81517-95406×2iWU75,9#,YU6#,70198708-198808

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-95406iWU75,9#198708-198808

main81520-95412iYU6#,70198708-198808

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81511-95406iWU75,9#,YU6#,70198708-198808

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-95406iWU75,9#,YU6#,70198708-198808

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

9356815012

main93568-15012

11 parts on this diagram · 1 diagram in section
