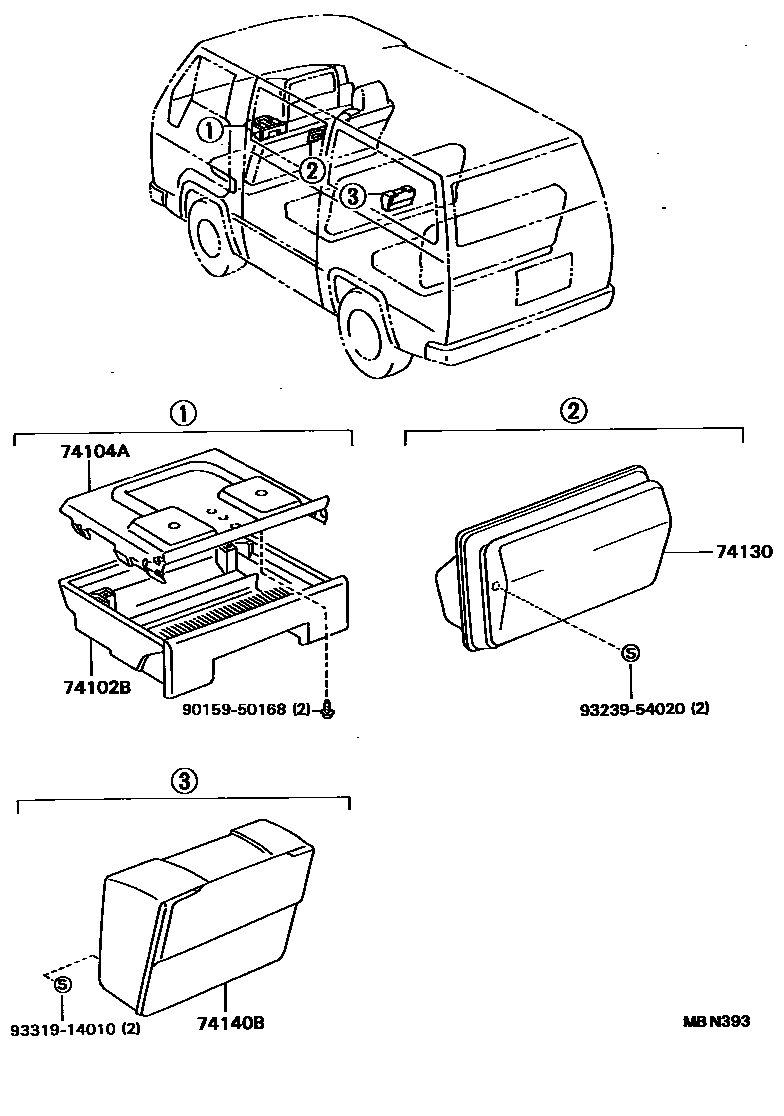

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95409-04iWU75,9#,YU6#..TOY198708-198808

BLUE,TRIM8#

main74102-95409-06iWU75,9#,YU6#,70..DYN198708-198808

BROWN,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95406iWU75,9#,YU6#,70198708-198808

74130RECEPTACLE ASSY, REAR ASH

main74130-14020-01iYU60,70..06S198708-198710

BLACK,TRIM4#,8#

main74130-95401-04iYU60..TOY..175198710-198808

BLUE,TRIM8#

main74130-95401-06iYU60,70..DYN..06S198710-198808

BROWN,TRIM4#

74140BRECEPTACLE ASSY, REAR ASH, NO.2

9015950168

main90159-50168

9323954020

main93239-54020

9331914010

main93319-14010

7 parts on this diagram · 1 diagram in section
