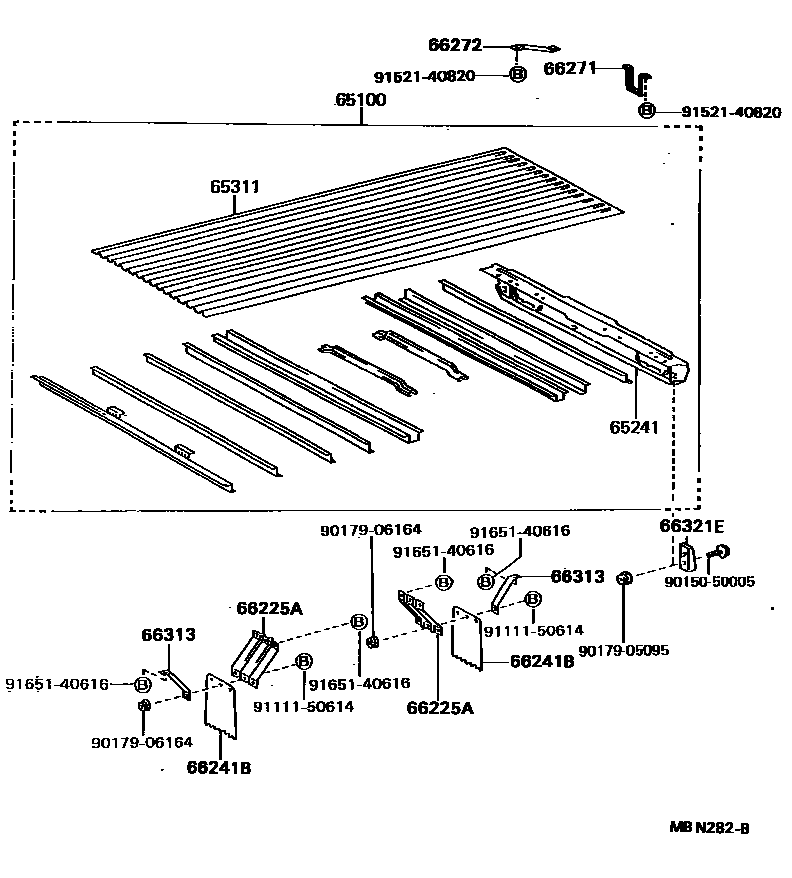

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

65100FLOOR ASSY, REAR BODY

main65100-95437iYU60..ST..175..CBU198708-198808

main65100-95438iYU60..T1..CBU198708-198808

65241SILL, REAR CROSS

main65240-92714iYU60..T3..CBU198708-198808

main65240-92715iYU60..T2..CBU198708-198808

main65240-92716iYU60..WT..175..CBU198708-198808

main65240-92835iWU9#..CBU198708-198808

main65240-95418iYU60..(T1,TW1)..CBU198708-198808

65311PANEL, FLOOR, CENTER

main65311-95027iYU60..ST..175..CBU198708-198808

main65311-95411iYU60..T1..CBU198708-198808

66225ASUPPORT, BAFFLE RUBBER

main66242-92705iYU60..T3..ST..CBU198708-198808

main66242-92706iYU60..(T2,TW2)..CBU198708-198808

main66242-92707iYU60..(T2,TW2)..CBU198708-198808

main66242-92803iWU9#..CBU198708-198808

main66242-92804iWU9#..CBU198708-198808

main66243-95400iYU60..(T1,TW1)..CBU198804-198808

66241BBAFFLE, RUBBER

main66241-92201iYU60..TOY..(T2,TW2)..CBU198708-198808

main66241-92203iYU60..TOY..T3..ST..CBU198708-198808

main66241-92702iYU60..DYN..T3..ST..CBU198708-198808

main66241-92703iYU60..DYN..(T2,TW2)..CBU198708-198808

RH

main66241-92706iYU60..TOY..T3..ST..CBU198708-198808

main66241-92707iYU60..DYN..T3..ST..CBU198708-198808

main66241-92708iYU60..TOY..(T2,TW2)..CBU198708-198808

main66241-92801iYU60..DYN..(T2,TW2)..CBU198708-198808

LH

main66241-92803iYU60..DYN..T3..WT..CBU198708-198808

main66241-92804iWU9#..DYN..CBU198708-198808

main66241-92805iWU9#..DYN..CBU198708-198808

main66241-92810iYU60..TOY..T3..WT..CBU198708-198808

main66241-92813iWU9#..TOY..CBU198708-198808

main66241-92814iWU9#..TOY..CBU198708-198808

main66241-95404iYU60..(T1,TW1)..CBU198708-198808

main66241-95406iYU60..DYN..(T1,TW1)..CBU198708-198808

RR-RH

main66241-95407iYU60..DYN..(T1,TW1)..CBU198708-198808

RR-LH

main66241-96300iWU75..DYN..CBU198708-198808

main66241-96301iWU75..TOY..CBU198708-198808

main76625-95010iYU60..TOY..(T1,TW1)..CBU198708-198808

RR-LH

main76625-95400iYU60..TOY..(T1,TW1)..CBU198708-198808

RR-RH

66271STEP, REAR BODY

main66207-92702iYU60..(T2,TW2)..CBU198708-198808

main66271-92701iYU60..T3..CBU198708-198808

main66271-92801iWU9#..CBU198708-198808

main66271-93100iYU61..CBU198708-198808

main66271-95014iYU60..(T1,TW1)..CBU198708-198808

66272STAY, REAR BODY STEP

main66272-95401iYU60..(T1,TW1)..CBU198708-198808

66313SUPPORT, REAR FENDER

main66235-92701iWU9#,YU60..T3..CBU198708-198808

REAR

main66235-92702iYU60..(T2,TW2)..CBU198708-198808

REAR

main66235-95405iYU60..(T1,TW1)..CBU198708-198808

main66236-92702iWU9#,YU60..(T2,T3,TW2)..CBU198708-198808

FRONT

main66313-96306iWU75..CBU198708-198808

66321EBUMPER, GATE RUBBER

main66321-92704iYU60..(T2,T3,TW2)..CBU198708-198808

SIDE GATE

main66321-92803iWU90..CBU198708-198808

SIDE GATE

main66321-92803iWU90..CBU198708-198808

main66321-92805iWU9#,YU60..(T2,T3,TW2)..CBU198708-198808

TAIL GATE

main66321-93103iYU61..CBU198708-198808

main66321-95013iWU75..CBU198708-198808

main66321-95406iYU60..(T1,TW1)..CBU198708-198808

9015050005

main90150-50005

9017905095

main90179-05095

9017906164

main90179-06164

9111150614

main91111-50614

9152140820

main91521-40820

9165140616

main91651-40616

15 parts on this diagram · 6 diagrams in section
