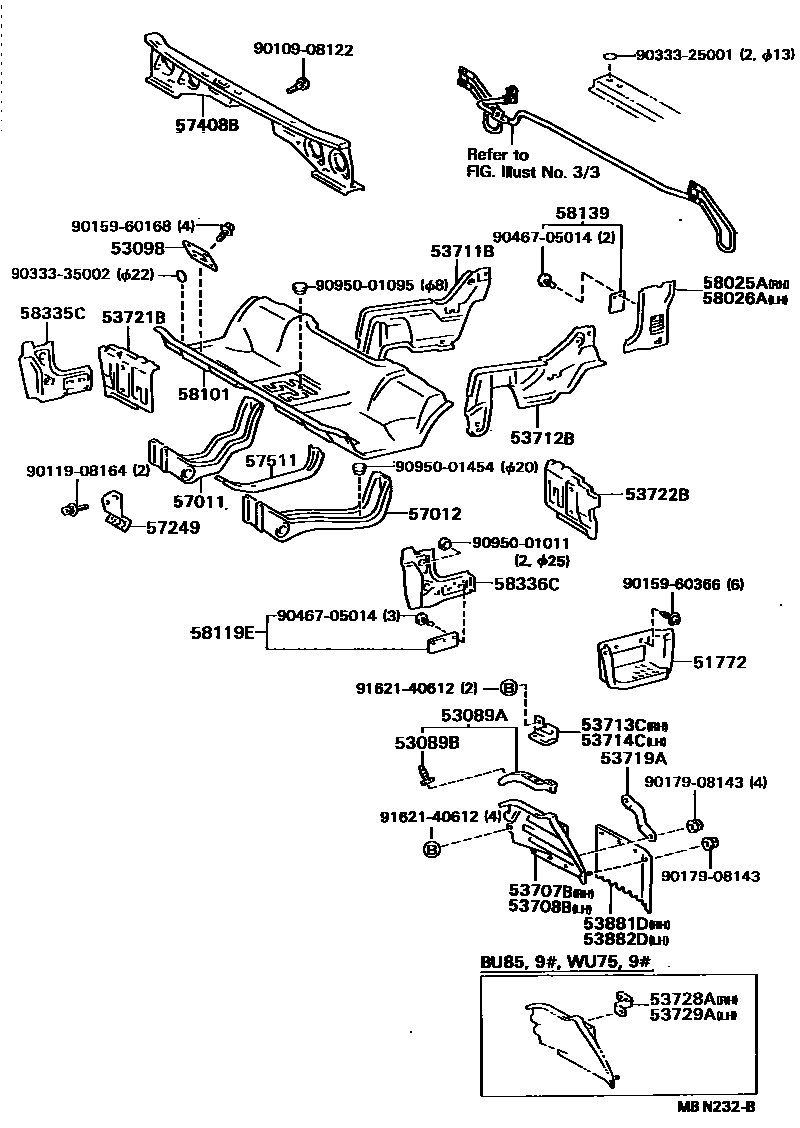

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51772PLATE, STEP

main51771-95406iWU75,9#,YU6#,70198708-198808

main51772-95406iWU75,9#,YU6#,70198708-198808

53089AMUDGUARD SUB-ASSY, FRONT

main53089-95400×2iWU75,9#,YU6#..03S198708-198808

53089BCLIP, FRONT MUDGUARD

main67868-95401×12iWU75,9#,YU6#..03S198708-198808

53098COVER SUB-ASSY, AIR CLEANER INLET HOLE

main53098-95402iYU6#,70198708-198808

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-92607iYU70198708-198808

main53715-95402iYU6#..20T198708-198808

main53715-95403iWU75,9#198708-198808

main53715-95405iYU60..175198708-198808

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-92607iYU70198708-198808

main53716-95402iYU6#..20T198708-198808

main53716-95403iWU75,9#198708-198808

main53716-95404iYU60..175198708-198808

53711BAPRON, FRONT FENDER, FRONT RH

main53711-95410iYU6#,70198708-198808

main53711-95411iWU75,9#198708-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-95414iYU6#,70198708-198808

main53712-95415iWU75,9#198708-198808

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-95406iYU6#..20T198708-198808

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-95406iYU6#..20T198708-198808

53719ABRACE, FENDER APRON

main53719-92600×2iYU60,70..SRF,TW1,TW2198708-198808

main53719-95403iWU75,9#198708-198808

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-95400iWU75,9#198708-198808

main53721-95402iYU6#,70198708-198808

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-95400iWU75,9#198708-198808

main53722-95403iYU6#,70198708-198808

53728ABRACKET, FENDER APRON, RH

main53728-95400iWU75,9#198708-198808

53729ABRACKET, FENDER APRON, LH

main53729-95400iWU75,9#198708-198808

53881DMUDGUARD, FRONT RH

main53881-92604iYU70198708-198808

main53881-95400iYU6#..20T198708-198808

main53881-95401iYU60..175198708-198808

main53881-95402iWU75,9#198708-198808

53882DMUDGUARD, FRONT LH

main53881-92604iYU70198708-198808

main53881-95400iYU6#..20T198708-198808

main53881-95401iYU60..175198708-198808

main53881-95402iWU75,9#198708-198808

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-95400iWU75,9#,YU6#,70198708-198808

57012MENBER SUB-ASSY

main57012-92602iYU60,70..SRF,TW1,TW2198708-198808

main57012-95400iYU6#..20T198708-198808

main57012-95404iWU75,9#198708-198808

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95400iWU75,9#,YU6#,70198708-198808

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-95419iYU6#,70198708-198808

main57408-95423iWU75,9#198708-198808

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-95406iWU75,9#198708-198808

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-95400iYU60..175198708-198808

main58271-95400iYU6#..20T198708-198808

main58271-95401iWU75,9#198708-198808

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95401iYU60..175198708-198808

main58272-95400iYU6#..20T198708-198808

main58272-95402iYU60..T3..WT..IV3198708-198808

main58272-95403iWU75,9#198708-198808

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95448iYU6#,70198708-198808

main58101-95449iWU9#;WU75..IV3198708-198808

main58101-95450iWU75..CBU; WU9#;WU75..IV3198708-198808

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iWU75,9#,YU6#,70198708-198808

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iYU6#..20T198708-198808

main58139-95401iYU6#..20T198708-198808

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95402iWU75,9#,YU6#,70198708-198808

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95402iWU75,9#,YU6#,70198708-198808

9010908122

main90109-08122

9011908164

main90119-08164

9015960168

main90159-60168

9015960366

main90159-60366

9017908143

main90179-08143

9033325001

main90333-25001

9033335002

main90333-35002

9046705014

main90467-05014

9095001011

main90950-01011

9095001095

main90950-01095

9095001454

main90950-01454

9162140612

main91621-40612

41 parts on this diagram · 4 diagrams in section
