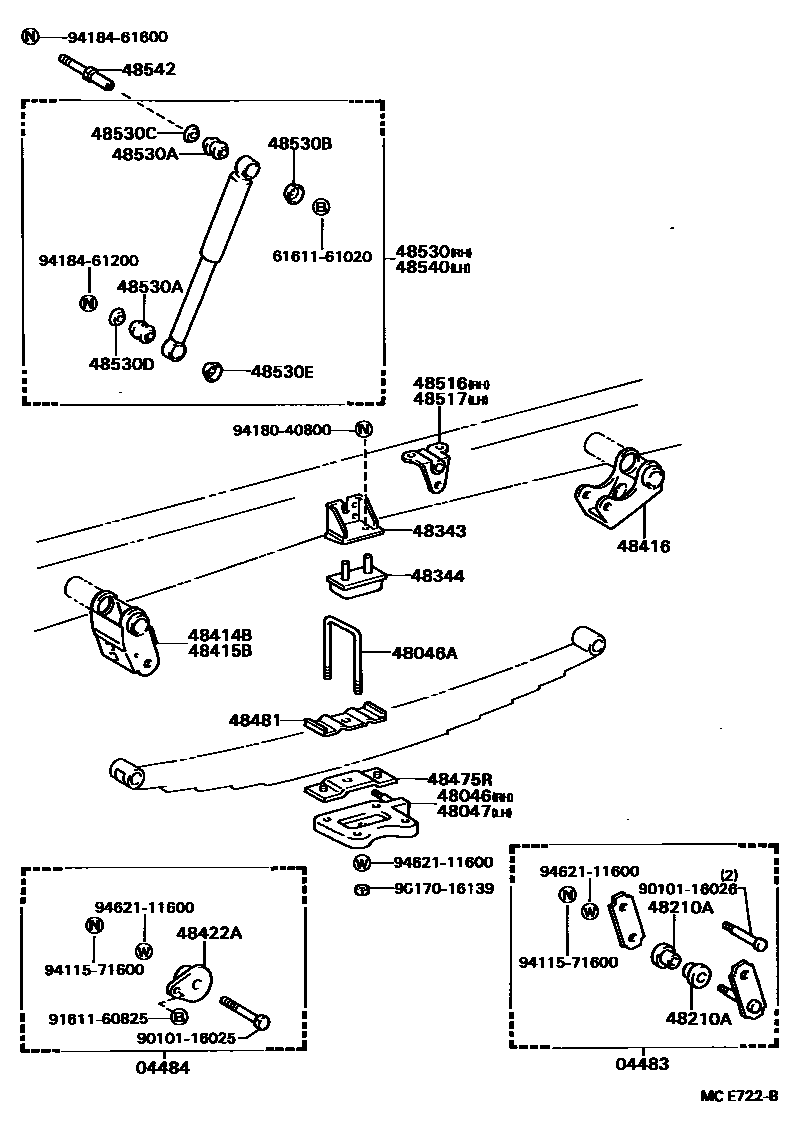

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

04483SHACKLE KIT, REAR SPRING

main04483-36060×2iYU6#,70198708-198808

04484PIN KIT, REAR SPRING

main04484-36030×6iWU75,9#198708-198808

main04484-36040×2iYU6#,70198708-198808

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-36030iWU75,9#198708-198808

main48046-36090iYU60,70..ST198708-198808

main48046-36120iYU61198708-198808

sub48046-36121

main48046-36160iYU60..T2,TW2198708-198808

main48046-36170iYU60..T3..WT198708-198808

48046ABOLT, U(FOR REAR SPRING)

main90117-16008×4iYU60..T3..WT198708-198808

main90117-16012×2iYU61198708-198808

main90117-16014×4iYU60..T2,TW2198708-198808

main90117-16031×4iYU70198708-198808

main90117-16122×4iYU60..ST198708-198808

main90117-16184×6iYU61198708-198808

main90117-18002×4iWU9#198708-198808

main90117-18005×4iWU95..IV3198708-198808

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-36030iWU75,9#198708-198808

main48046-36090iYU60,70..ST198708-198808

main48047-36120iYU61198708-198808

sub48047-36121

main48047-36160iYU60..T2,TW2198708-198808

main48047-36170iYU60..T3..WT198708-198808

48210SPRING ASSY, REAR RH

main48210-3B180iYU60..T1,TW1198708-198808

main48210-3B190iYU60..T3..ST198708-198808

main48210-3B200iYU70198708-198808

main48210-3B220iYU60..T2,TW2198708-198808

main48210-3B250iYU60..T3..WT198708-198808

main48210-3B270iYU61198708-198808

main48210-3B300iWU9#198708-198808

main48210-3B310iWU95..IV3198708-198808

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002×4iYU6#,70198708-198808

48343BRACKET, REAR AXLE CUSHION

main48308-36040×2iYU60..T2,TW2198708-198808

main48343-36040×2iYU60,70..ST198708-198808

main48343-36060×2iYU61198708-198808

48344STOPPER, BUMPER, REAR

main48344-36140×2iYU60,70..SRF,T1,TW1198708-198808

main48344-36150×2iYU60..T3..ST198708-198808

main48344-36190×2iWU75,9#198708-198808

main48344-36230×2iYU60..T3..WT198708-198808

main48344-36270×2iYU61198708-198808

48414BBRACKET, SPRING, NO.3 RH

main48414-36150iWU75,9#198708-198808

main48414-36230iYU60,70..ST198708-198808

main48414-36240iYU60..T2,TW2198708-198808

main48414-36260iYU60..T3..WT198708-198808

main48414-36270iYU61198708-198808

48415BBRACKET, SPRING, NO.3 LH

main48414-36150iWU75,9#198708-198808

main48414-36240iYU60..T2,TW2198708-198808

main48414-36260iYU60..T3..WT198708-198808

main48414-36270iYU61198708-198808

main48415-36070iYU60,70..ST198708-198808

48416BRACKET, SPRING, NO.4

main48416-36160×2iWU75,9#198708-198808

main48416-36230iYU60..T2,TW2198708-198808

main48416-36250iYU60..T3..WT198708-198808

main48416-36260iYU61198708-198808

main48416-36270×2iYU60,70..ST198708-198808

main48417-36110iYU60..T2,TW2198708-198808

main48417-36130iYU60..T3..WT198708-198808

main48417-36140iYU61198708-198808

48422ASUPPORT, REAR SPRING PIN

main48042-37901×2iWU75,9#198708-198808

main48422-36090×2iYU6#,70198708-198808

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iYU61198708-198808

48481SEAT, REAR SPRING, UPPER

main48481-36040×2iYU60,70..ST198708-198808

main48481-37011×2iWU75,9#198708-198808

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36050iYU60..WT198708-198808

main48516-36050iYU60,70..ST198708-198808

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36050iYU60..WT198708-198808

main48516-36050iYU60,70..ST198708-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39715iYU60,70..ST198708-198808

sub48531-39716

main48531-39725iWU75,9#,YU61198708-198808

sub48531-39726

main48531-39755iYU60..WT198708-198808

sub48531-39756

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16009×4iWU75,9#,YU6#,70198708-198808

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003×2iWU75,9#,YU60..WT198708-198808

main90948-03004×2iYU60,70..ST198708-198808

main90948-03007×2iYU61198708-198808

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iWU75,9#,YU6#..WT198708-198808

main90948-03007×2iYU60,70..ST198708-198808

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003×2iYU6#,70198708-198808

main90948-03007×2iWU75,9#198708-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iWU75,9#,YU6#,70198708-198808

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39715iYU60,70..ST198708-198808

sub48531-39716

main48531-39725iWU75,9#,YU61198708-198808

sub48531-39726

main48531-39755iYU60..WT198708-198808

sub48531-39756

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-36020×2iYU60,70..ST198708-198808

sub48542-37030

6161161020PANEL, QUARTER, RH

main61611-61020

9010116025

main90101-16025

9010116026

main90101-16026

9017016139

main90170-16139

9161160825

main91611-60825

9411571600

main94115-71600

9418040800

main94180-40800

9418461200

main94184-61200

9418461600

main94184-61600

9462111600

main94621-11600

35 parts on this diagram · 12 diagrams in section
