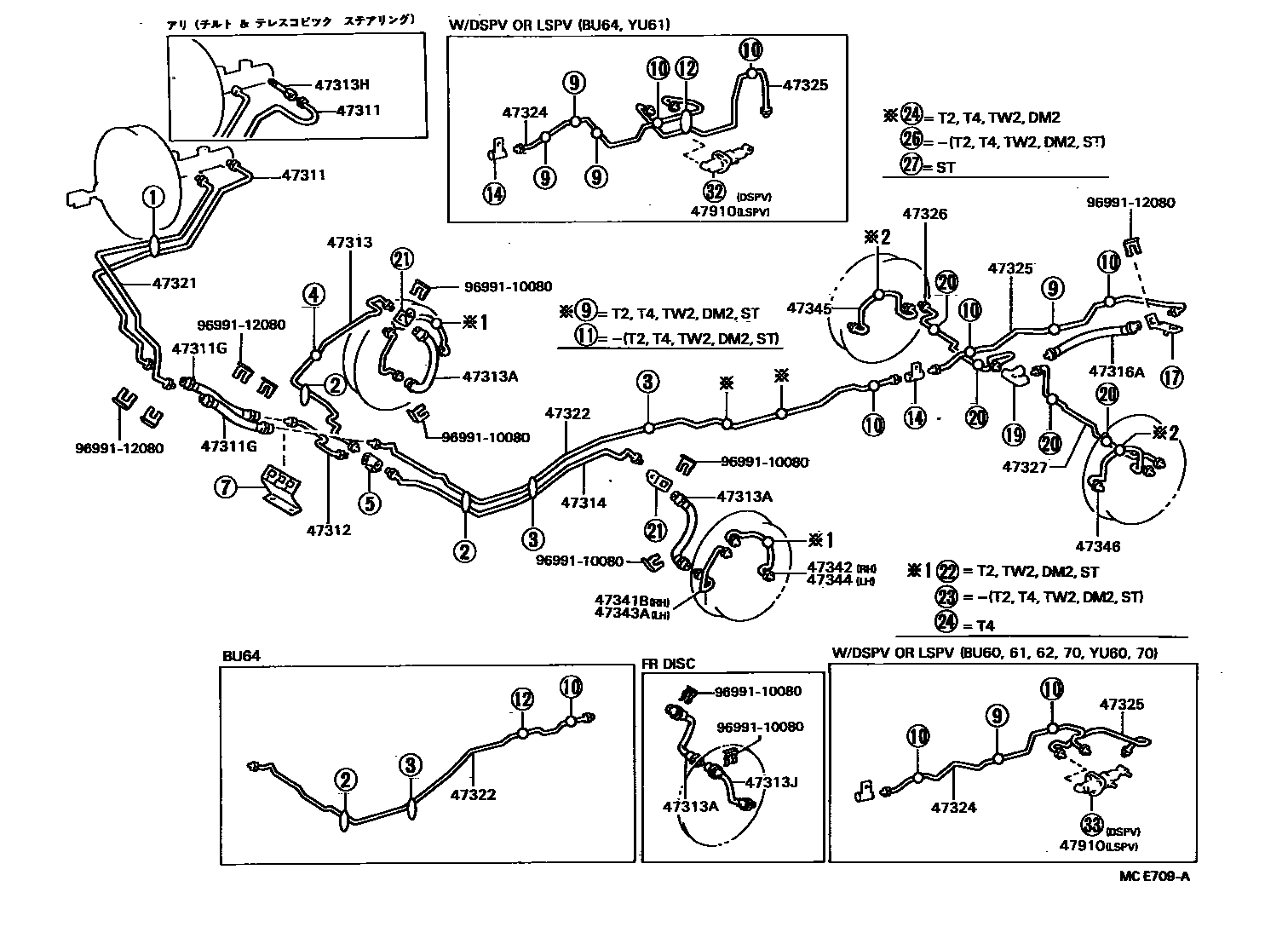

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36380iYU6#,70198708-198808

main47311-36410iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

main47311-36450iWU75,9#198708-198808

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-33705×2iYU6#,70198708-198808

main96932-34305×2iWU75,9#198708-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-36230iWU75,9#198708-198808

main47312-36250iYU6#,70198708-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-36160iYU60,70198708-198808

main47313-36170iYU61198708-198808

main47313-36200iWU75,9#198708-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02469×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main90947-02470×2iYU6#..(DM1,T3)..WT198708-198808

main96940-33305×2iYU60..T3..WT198708-198808

main96950-34205×2iWU75,9#198708-198808

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90404-12007iWU75,9#; YU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02521×2iYU60..T3..WT198708-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-36230iYU60,70198708-198808

main47314-36240iYU61198708-198808

main47314-36280iWU75,9#198708-198808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96912-33605iYU61198708-198808

main96912-33705iYU60..T2,TW2198708-198808

main96912-34005iYU60,70..SRF,T1,T3,TW1198708-198808

main96912-34105iWU75,9#198708-198808

47321TUBE, REAR BRAKE, NO.1

main47321-36200iWU75,9#198708-198808

main47321-36280iYU6#,70198708-198808

47322TUBE, REAR BRAKE, NO.2

main47322-36200iYU61198708-198808

main47322-36201iYU61198808-198808

main47322-36241iYU60,70198708-198808

main47322-36280iWU75,9#198708-198808

47324TUBE, REAR BRAKE, NO.4

main47324-36110iYU60..WT198708-198808

main47324-36120iYU60..ST..20T198708-198808

main47324-36210iYU60,70..ST198708-198808

main47324-36230iYU61198708-198808

47325TUBE, REAR BRAKE, NO.5

main47325-36120iWU75,95198708-198808

main47325-36130iWU90198708-198808

main47325-36171iYU60..WT198708-198808

main47325-36180iYU60..WT198708-198808

main47325-36190iYU60..ST..20T198708-198808

main47325-36250iYU61198708-198808

main47325-36280iYU60,70..ST198708-198808

main47325-36300iYU61198708-198808

47326TUBE, REAR BRAKE, NO.6

main47326-36100iYU60..T2,TW2198708-198808

main47326-36120iYU60..T3..WT198708-198808

main47326-36130iYU61198708-198808

main47329-36140iYU60,70..ST198708-198808

main47329-36180iWU75,9#198708-198808

47327TUBE, REAR BRAKE, NO.7

main47327-36110iYU61198708-198808

main47327-36130iYU60,70..ST198708-198808

main47327-36150iYU60..T3..WT198708-198808

main47327-36160iYU60..T2,TW2198708-198808

main47331-36210iWU75,9#198708-198808

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36060iWU75,9#198708-198808

main47341-36070iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47341-36090iYU6#..(DM1,T3)..WT198708-198808

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47342-36030iYU6#..(DM1,T3)..WT198708-198808

main47342-36050iWU75,9#198708-198808

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36060iWU75,9#198708-198808

main47343-36070iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47343-36090iYU6#..(DM1,T3)..WT198708-198808

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47342-36030iYU6#..(DM1,T3)..WT198708-198808

main47342-36050iWU75,9#198708-198808

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36050iWU75,9#198708-198808

main47342-36060iYU60..T2,TW2198708-198808

main47345-36011iYU60,70..ST198708-198808

main47345-36040iYU6#..(DM1,T3)..WT198708-198808

47346TUBE, WHEEL CYLINDER, REAR LH

main47342-36050iWU75,9#198708-198808

main47344-36060iYU60..T2,TW2198708-198808

main47345-36011iYU60,70..ST198708-198808

main47345-36040iYU6#..(DM1,T3)..WT198708-198808

47910VALVE ASSY, LOAD SENSING PROPORTIONING

main47910-36050iYU6#..DM1,T2,TW2; YU60,70..ST; YU60..T3..WT198708-198808

9699110080

main96991-10080

9699112080

main96991-12080

24 parts on this diagram · 5 diagrams in section
