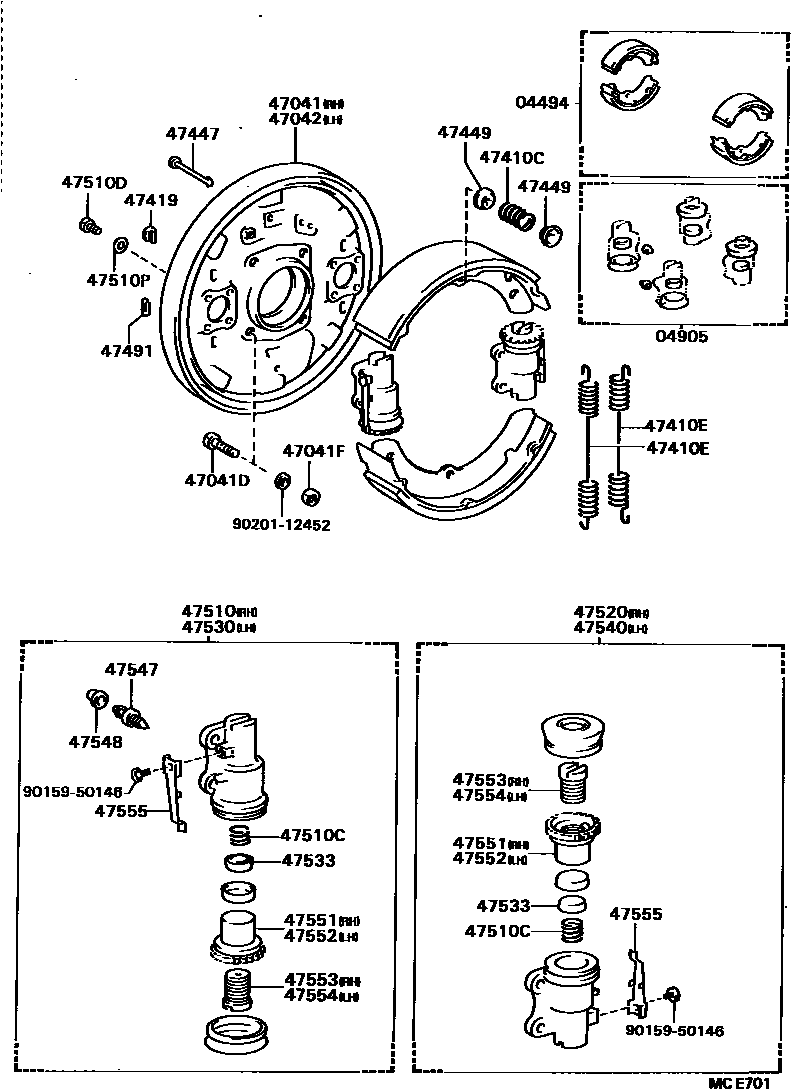

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04494SHOE KIT, FRONT BRAKE

main04494-36070iWU75,9#198708-198808

main04494-36080iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main04494-36100iYU61;YU60..T3..WT..CBU198708-198808

main04494-36140iYU60..T3..WT..IV3198708-198805

main04494-36141iYU60..T3..WT..IV3198805-198808

main04496-36070iWU75,9#198708-198808

main04496-36080iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main04496-36100iYU61;YU60..T3..WT..CBU198708-198808

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36060iWU75,9#198708-198808

main04905-36070iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main04905-36080iYU6#..(DM1,T3)..WT198708-198808

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36110iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47041-36130iYU6#..(DM1,T3)..WT198708-198808

main47041-36140iWU75,9#198708-198808

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113iYU6#,70198708-198808

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90170-14002iWU75,9#198708-198808

main94115-71200iYU6#,70198708-198808

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36110iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47042-36130iYU6#..(DM1,T3)..WT198708-198808

main47042-36140iWU75,9#198708-198808

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iWU75,9#,YU6#,70198708-198808

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main90507-29006iWU75,9#,YU6#..(DM1,T3)..WT198708-198808

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iYU6#,70198708-198808

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-35020iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47447-36030iYU6#..(DM1,T3)..WT198708-198808

main47447-60010iWU75,9#198708-198808

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iWU75,9#,YU6#,70198708-198808

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iWU75,9#,YU6#,70198708-198808

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36080iWU75,9#198708-198808

main47510-36090iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47510-36100iYU6#..(DM1,T3)..WT198708-198808

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122iYU6#,70198708-198808

main90501-10759iWU75,9#198708-198808

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-08081iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main90101-10127iWU75,9#,YU6#..(DM1,T3)..WT198708-198808

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-08002iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main90201-10287iWU75,9#,YU6#..(DM1,T3)..WT198708-198808

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36070iWU75,9#198708-198808

main47520-36090iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47520-36100iYU6#..(DM1,T3)..WT198708-198808

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36080iWU75,9#198708-198808

main47530-36090iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47530-36100iYU6#..(DM1,T3)..WT198708-198808

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011iYU6#,70198708-198808

main47533-36031iWU75,9#198708-198808

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36070iWU75,9#198708-198808

main47540-36090iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47540-36100iYU6#..(DM1,T3)..WT198708-198808

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iWU75,9#,YU6#,70198708-198808

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iWU75,9#,YU6#,70198708-198808

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-36110iWU75,9#198708-198808

main47551-36120iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47551-36130iYU6#..(DM1,T3)..WT198708-198808

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-36110iWU75,9#198708-198808

main47552-36120iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47552-36130iYU6#..(DM1,T3)..WT198708-198808

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36030iWU75,9#198708-198808

main47553-36050iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47553-36060iYU6#..(DM1,T3)..WT198708-198808

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36030iWU75,9#198708-198808

main47554-36050iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198708-198808

main47554-36060iYU6#..(DM1,T3)..WT198708-198808

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-25010iWU75,9#198708-198808

main47555-36040iYU6#,70198708-198808

9015950146

main90159-50146

9020112452

main90201-12452

29 parts on this diagram · 2 diagrams in section
