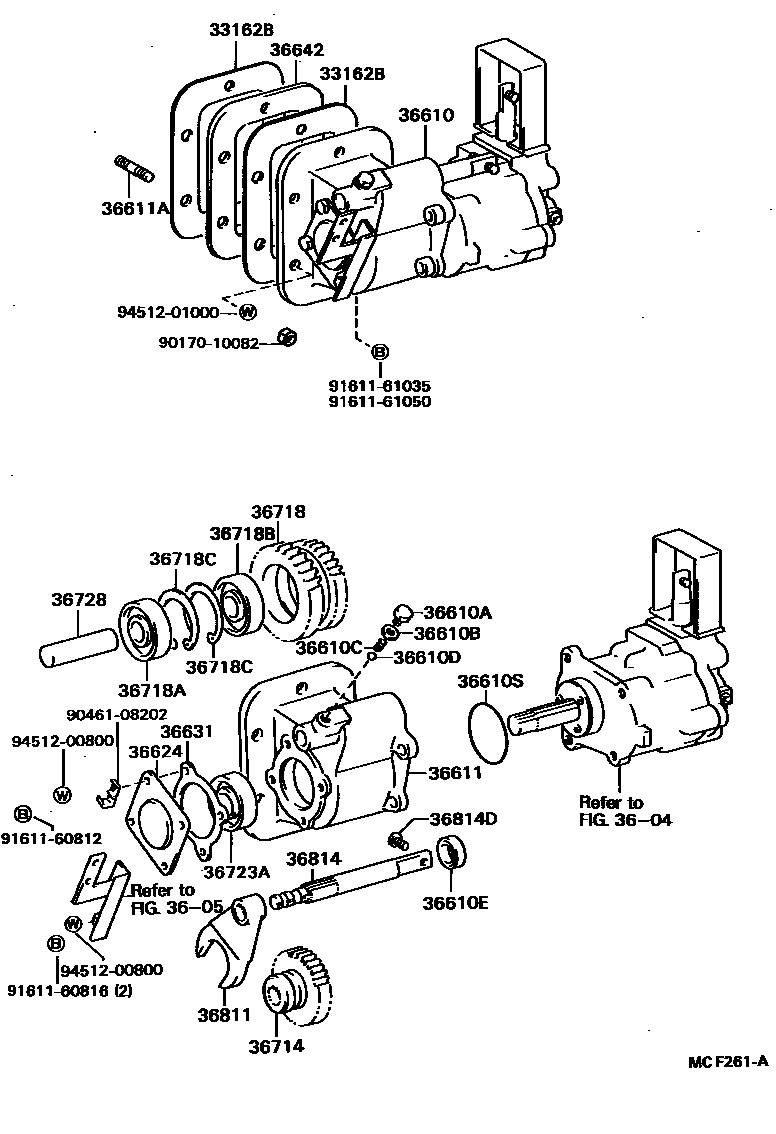

POWER TAKE-OFF CASE & GEAR
33162BGASKET, POWER TAKE-OFF COVER
sub33162-37030
3604
3605
36610POWER TAKE-OFF ASSY
36610ABOLT, LOCK BALL (FOR POWER TAKE-OFF)
36610BGASKET, SEAT (FOR POWER TAKE-OFF)
36610CSPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
36610DBALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
36610ESEAL, OIL (FOR POWER TAKE-OFF)
36610SRING, O (FOR POWER TAKE-OFF)
36611CASE, POWER TAKE-OFF
36611ABOLT, STUD (FOR POWER TAKE-OFF CASE)
36624CAP, POWER TAKE-OFF BEARING
36631GASKET, POWER TAKE-OFF BEARING RETAINER
36642SPACER, POWER TAKE-OFF COVER
36714GEAR, POWER TAKE-OFF OUTPUT
36718GEAR, POWER TAKE-OFF IDLER
36718ABEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT)
36718BBEARING(FOR POWER TAKE-OFF IDLER GEAR REAR)
36718CRING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723ABEARING (FOR OUTPUT SHAFT FRONT)
36728SHAFT, POWER TAKE-OFF IDLER
36811FORK, POWR TAKE-OFF SHIFT, NO.1
36814SHAFT, POWR TAKE-OFF FORK, NO.1
36814DBOLT, SERRATION (FOR POWER TAKE-OFF SHAFT)
9017010082
main90170-10082
9046108202
main90461-08202
9161160812
main91611-60812
9161160816
main91611-60816
9161161035
main91611-61035
9161161050
main91611-61050
9451200800
main94512-00800
9451201000
main94512-01000
34 parts on this diagram · 2 diagrams in section
