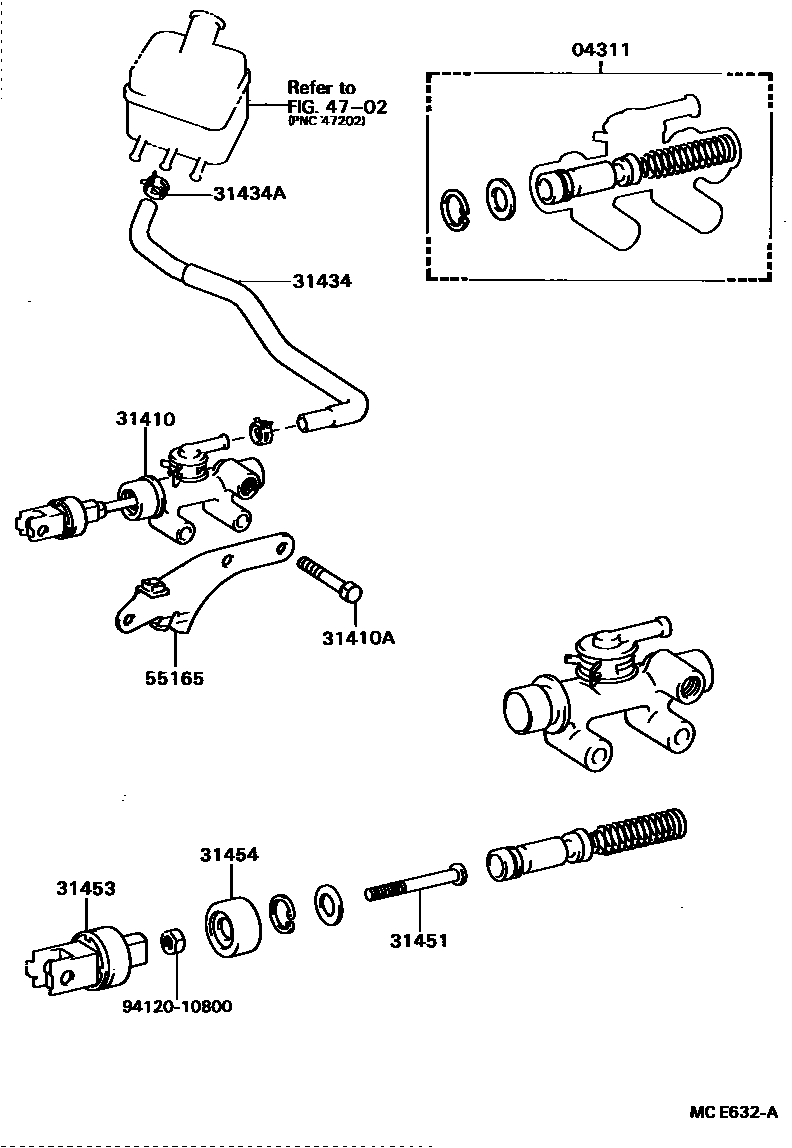

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-36080iYU6#,70198708-198808

main04311-36090iWU75,9#198708-198710

main04311-36100iWU75,9#198801-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36012iWU75,9#198708-198710

main31401-36013iWU75,9#198710-198808

main31420-36130iYU6#,70198708-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865×2iYU6#,70198708-198808

31434TUBE, CLUTCH RESERVOIR

main31434-36140iWU75,9#198708-198808

main31434-36190iYU6#,70198708-198808

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iWU75,9#,YU6#,70198708-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iYU6#,70198708-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-36020iYU6#,70198708-198808

main31404-36030iWU75,9#198708-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iYU6#,70198708-198808

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

55165SUPPORT, CLUTCH MASTER CYLINDER

main55105-95411iWU75,9#198708-198808

main55165-95401iYU6#,70198708-198808

9412010800

main94120-10800

11 parts on this diagram · 2 diagrams in section
