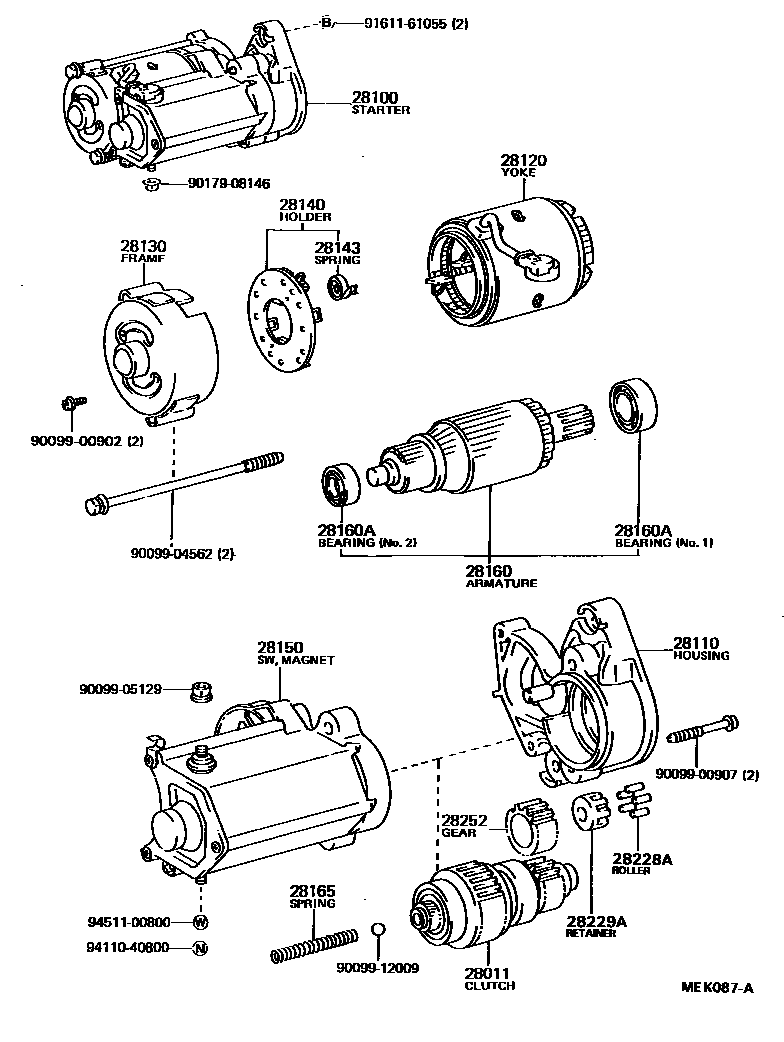

STARTER

0001 112V 1.0KW 0002 124V 4.5KW 0003 124V 4.5KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i3Y..YU6#,70198708-198808

main28011-78012i1W..WU75,9#198708-198808

28100STARTER ASSY

main28100-72010i3Y..YU6#,70198708-198808

main28100-78011i1W..WU75,9#198708-198808

28110HOUSING ASSY, STARTER DRIVE

main28110-72010i3Y..YU6#,70198708-198808

main28115-78021i1W..WU75,9#198708-198808

main28115-78030i1W..WU75,9#198708-198808

28120YOKE ASSY, STARTER

main28120-26071i3Y..YU6#,70198708-198808

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-72010i3Y..YU6#,70198708-198808

main28130-78020i1W..WU75,9#198708-198808

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i3Y..YU6#,70198708-198808

main28140-78010i1W..WU75,9#198708-198808

28143SPRING, STARTER BRUSH

main28143-78010×4i1W..WU75,9#198708-198808

main90099-17112×4i3Y..YU6#,70198708-198808

28150SWITCH ASSY, MAGNET STARTER

main28150-72010i3Y..YU6#,70198708-198808

28160ARMATURE ASSY, STARTER

main28160-26070i3Y..YU6#,70198708-198808

main28160-78010i1W..WU75,9#198708-198808

28160ABEARING, STARTER ARMATURE

main28126-78010i1W..WU75,9#198708-198808

main28253-45020i3Y..YU6#,70198708-198808

main28253-78010i1W..WU75,9#198708-198808

main90099-10113i3Y..YU6#,70198708-198808

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i3Y..YU6#,70198708-198808

28228AROLLER, STARTER CLUTCH

main28228-26040×5i3Y..YU6#,70198708-198808

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i3Y..YU6#,70198708-198808

28252GEAR, STARTER IDLE

main28254-45020i3Y..YU6#,70198708-198808

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 3 diagrams in section
