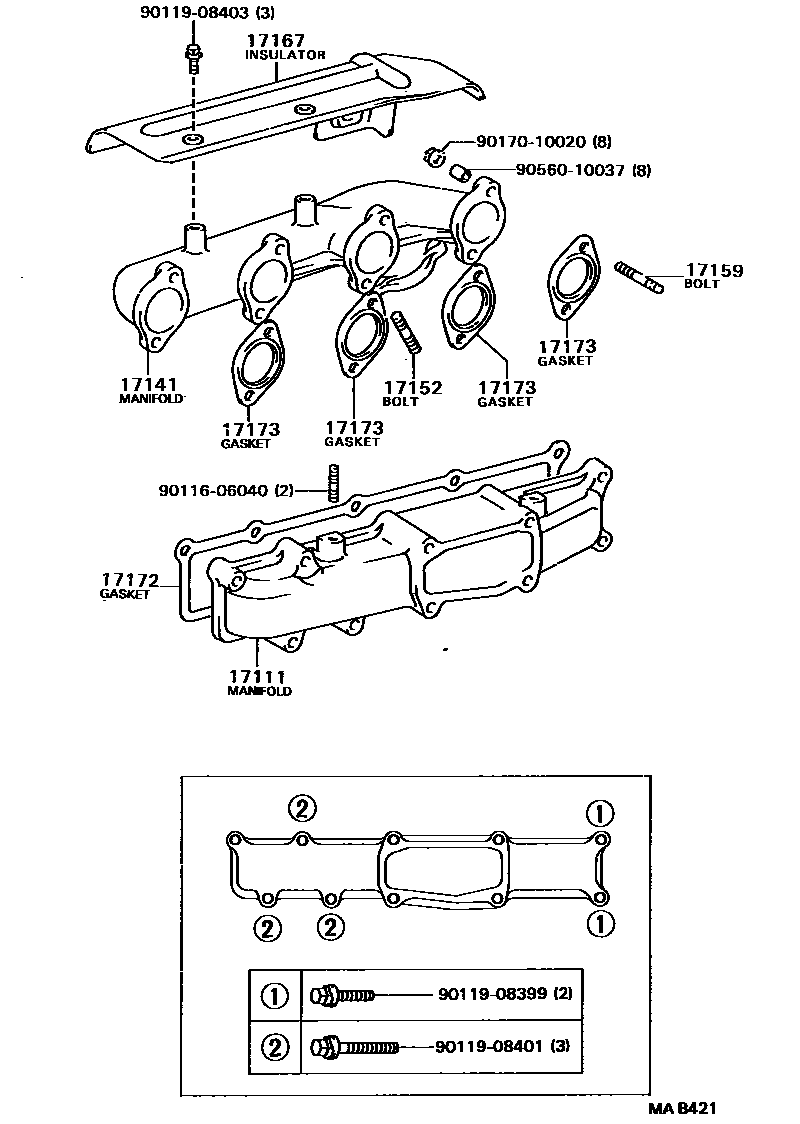

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17111-71010i3Y..YU6#,70198708-198808

main17111-78010i1W..WU75,9#198708-198808

17141MANIFOLD, EXHAUST

main17141-71020i3Y..YU6#,70198708-198808

main17141-78010i1W..WU75,9#198708-198808

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058×3i3Y..YU6#,70198708-198808

main90116-10110×3i1W..WU75,9#198708-198808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063×8i3Y..YU6#,70198708-198808

main90116-10077×8i1W..WU75,9#198708-198808

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56022i1W..WU75,9#198708-198808

main17167-71020i3Y..YU6#,70198708-198808

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-73010i3Y..YU6#,70198708-198808

main17172-78010i1W..WU75,9#198708-198808

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78010×4i1W..WU75,9#198708-198808

9011606040

main90116-06040

9011908399

main90119-08399

9011908401

main90119-08401

9011908403

main90119-08403

9017010020

main90170-10020

9056010037

main90560-10037

13 parts on this diagram · 2 diagrams in section
