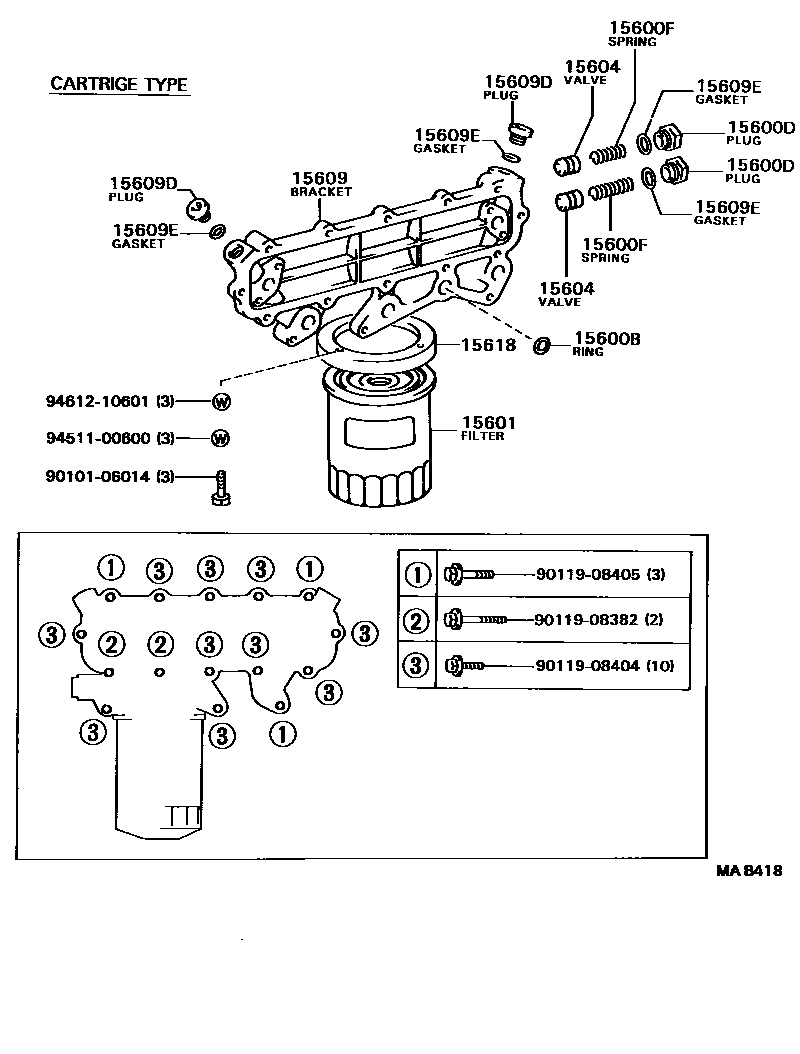

OIL FILTER

0001 1 0002 1

15600BRING, O, NO.1(FOR OIL FILTER)

main90301-19005×4i1W..WU75,9#198708-198808

15600DPLUG(FOR OIL FILTER)

main15798-78010×2i1W..WU75,9#198708-198808

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main15661-78010×2i1W..WU75,9#198708-198808

15601FILTER SUB-ASSY, OIL

main15601-33021i3Y..YU6#,70198708-198808

main15601-78010i1W..WU75,9#198708-198808

15604VALVE SUB-ASSY, OIL SAFETY

main15624-78010×2i1W..WU75,9#198708-198808

15609BRACKET SUB-ASSY, OIL FILTER

main15609-71011i3Y..YU6#,70198708-198808

main15701-78010i1W..WU75,9#198708-198808

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20006×2i1W..WU75,9#198708-198808

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90301-99025×4i1W..WU75,9#198708-198808

15618PLATE, OIL FILTER

main15618-78010i1W..WU75,9#198708-198808

9010106014

main90101-06014

9011908382

main90119-08382

9011908404

main90119-08404

9011908405

main90119-08405

9451100600

main94511-00600

9461210601

main94612-10601

15 parts on this diagram · 2 diagrams in section
