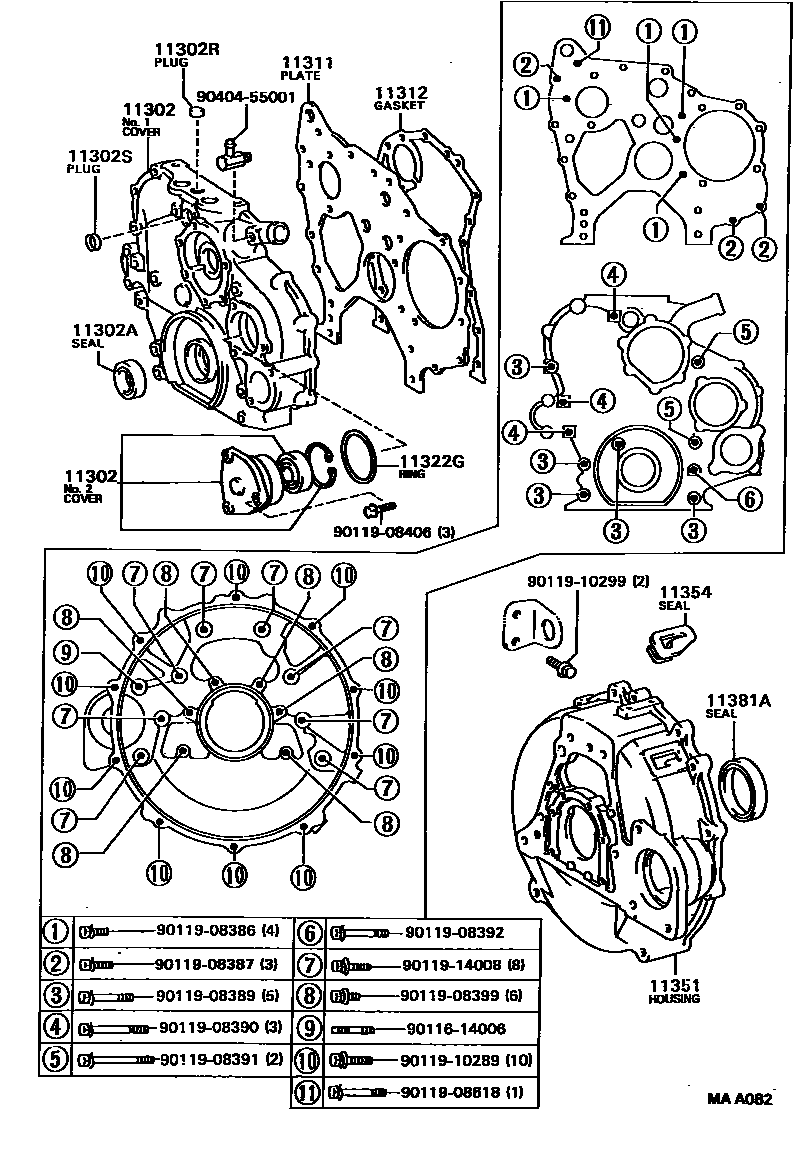

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-78010i1W..WU75,9#198708-198808

main11321-71010i3Y..YU6#,70198708-198808

main11321-78020i1W..WU75,9#198708-198808

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42019i3Y..YU6#,70198708-198808

main90311-58005i1W..WU75,9#198708-198808

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90331-22002i1W..WU75,9#198708-198808

11302SPLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)

main90331-32002i1W..WU75,9#198708-198808

11311PLATE, FRONT END

main11311-78010i1W..WU75,9#198708-198808

11312GASKET, FRONT END PLATE

main11312-78010i1W..WU75,9#198708-198808

11322GRING, O(FOR TIMING GEAR COVER)

main90301-81003i1W..WU75,9#198708-198808

11351HOUSING, FLYWHEEL

main11351-78021i1W..WU75,9#198708-198808

11354SEAL, FLYWHEEL HOUSING DUST

main11354-71010i3Y..YU6#,70198708-198808

main11354-78010i1W..WU75,9#198708-198808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-71010i3Y..YU6#,70198708-198808

11381ASEAL, ENGINE REAR OIL

main90311-80003i3Y..YU6#,70198708-198808

main90311-99002i1W..WU75,9#198708-198808

9011614006

main90116-14006

9011908386

main90119-08386

9011908387

main90119-08387

9011908389

main90119-08389

9011908390

main90119-08390

9011908391

main90119-08391

9011908392

main90119-08392

9011908399

main90119-08399

9011908406

main90119-08406

9011908618

main90119-08618

9011910289

main90119-10289

9011910299

main90119-10299

9011914008

main90119-14008

9040455001

main90404-55001

25 parts on this diagram · 2 diagrams in section
