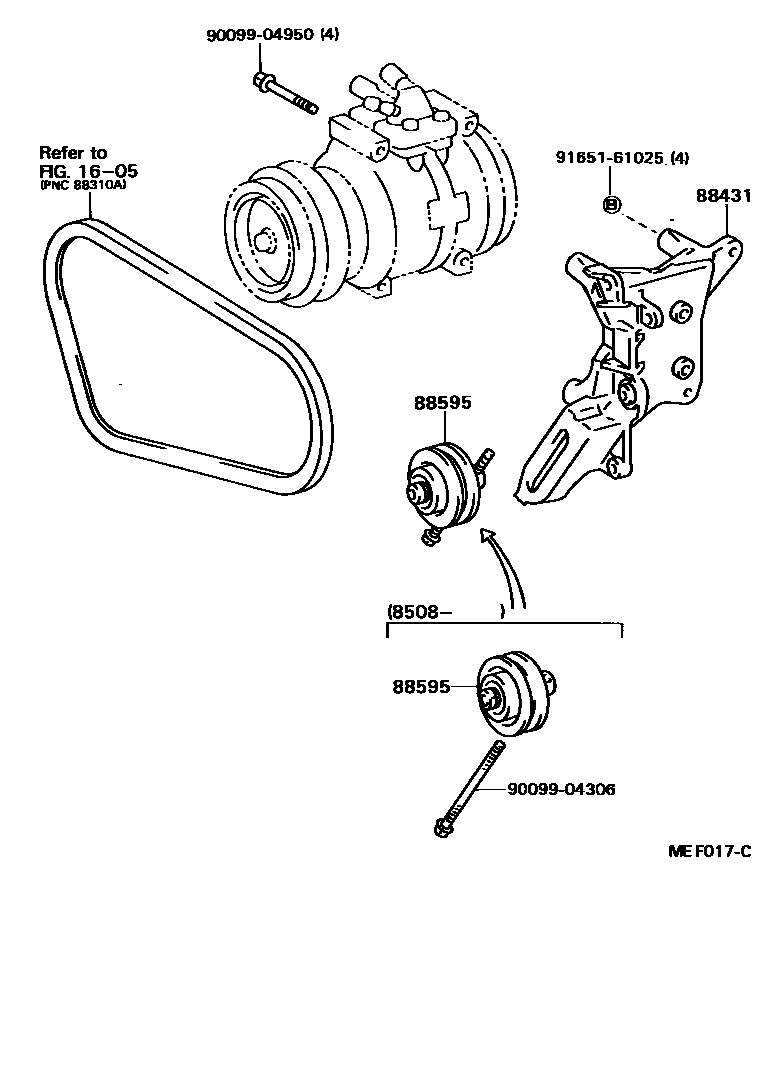

Toyota DYNA/TOYOACE — HEATING & AIR CONDITIONING - COMPRESSOR
1605V-BELT
9009904306
9009904950
9165161025
6 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota DYNA/TOYOACE
This section contains 30 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota DYNA/TOYOACE. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, CLUTCH ASSY, MAGNET.
