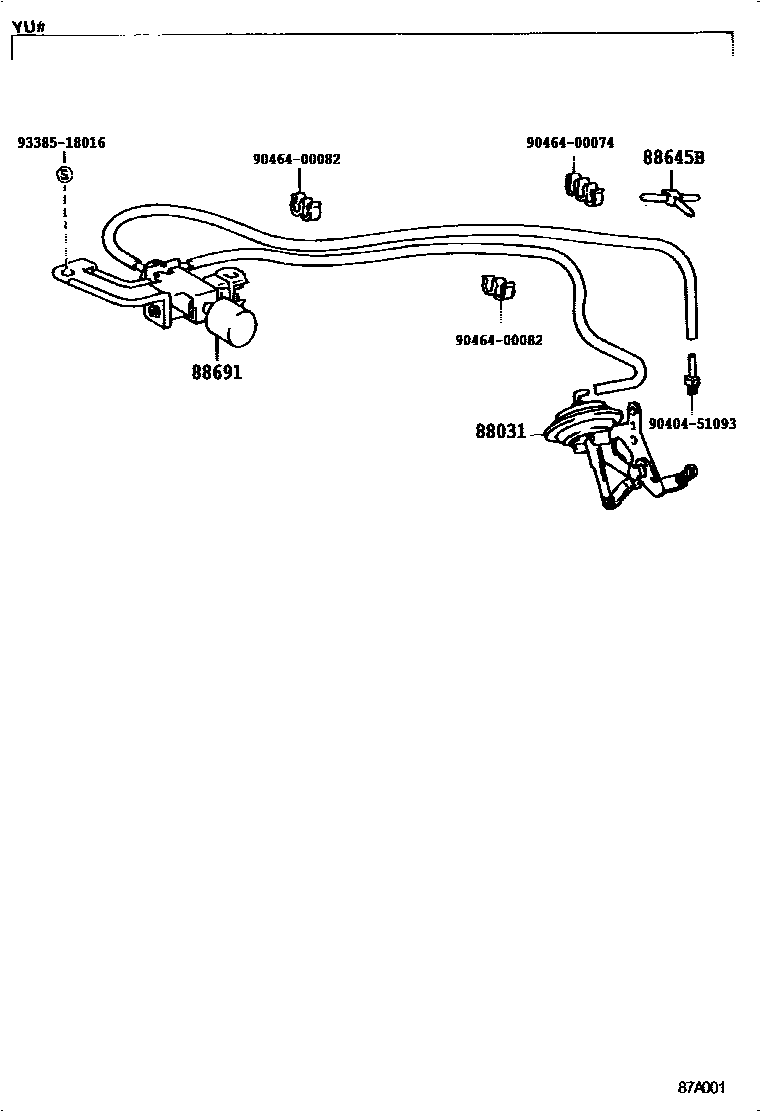

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main21908-72010iYU60,80..LPG198409-198708

main88031-35070iYU6#,70..CBR198409-198708

main88031-36050iWU75,9#198409-198609

main88031-36060iWU75,9#198609-198708

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iWU75,9#,YU6#,70..CBR,DSL198409-198708

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95417iWU75,9#198409-198708

main88690-95425iYU6#,70,80198409-198708

9040451093

main90404-51093

9046400074

main90464-00074

9046400082

main90464-00082

9338518016

main93385-18016

7 parts on this diagram · 2 diagrams in section
