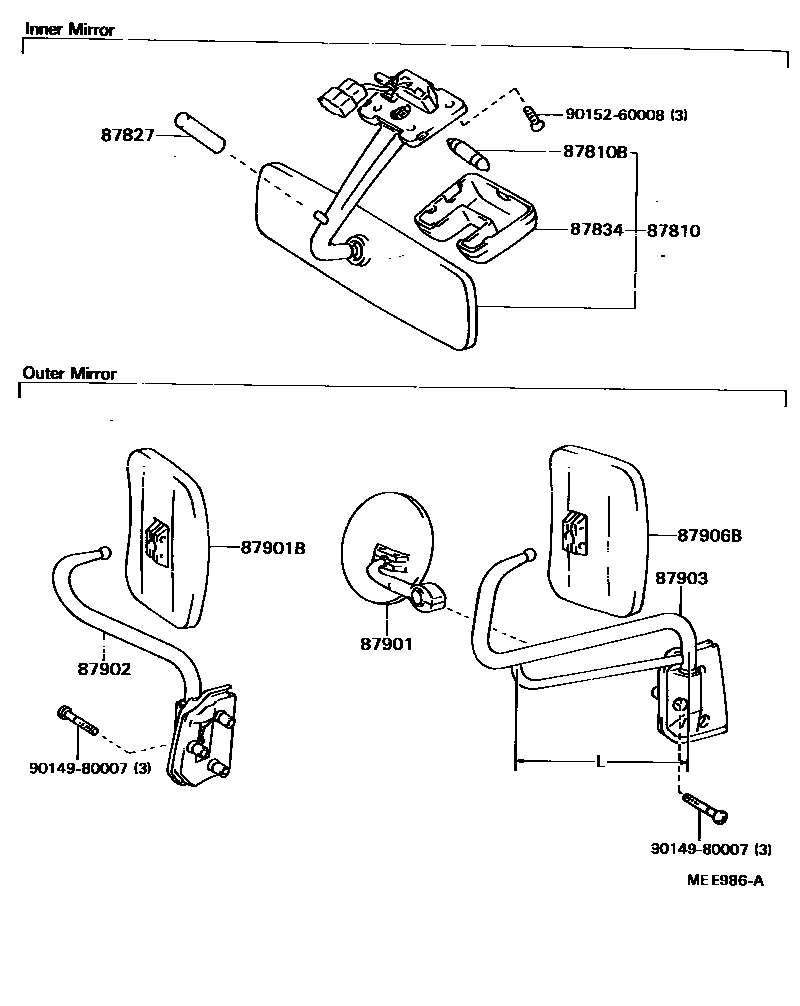

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95418iYU6#,70,80198409-198708

main87810-95421iWU75,9#198409-198708

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iYU6#,70,80198409-198708

main90981-16019iWU75,9#198409-198708

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iWU75,9#,YU6#,70,80198409-198708

L=38.5

main87828-30010iWU75,9#,YU6#,70,80198409-198708

L=43.5

main87828-32010iWU75,9#,YU6#,70,80198409-198708

L=46.5

main87828-92600iYU60,70..SRF,TW1,TW2198409-198708

L=49.5

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iWU75,9#,YU6#,70,80198409-198708

87901MIRROR SUB-ASSY, OUTER UNDER VIEW

main87906-95402iWU75,9#,YU6#,70,80198409-198708

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-95411iWU75,9#,YU6#,70,80198409-198708

87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH

main87093-95400iWU75,9#,YU6#,70,80198410-198708

main87903-95425iWU75,9#,YU60,70,80198409-198410

87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH

main87094-95400iYU6#,70198409-198708

STD STAY(L=330)

main87094-95401iYU60..20T..ATP; YU80198409-198708

LONG STAY

main87094-95406iWU75,9#198409-198708

LONG STAY(L=350)

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87901-95411iYU6#,70,80198409-198708

main87901-95415iWU75,9#198409-198708

9014980007

main90149-80007

9015260008

main90152-60008

11 parts on this diagram · 1 diagram in section
