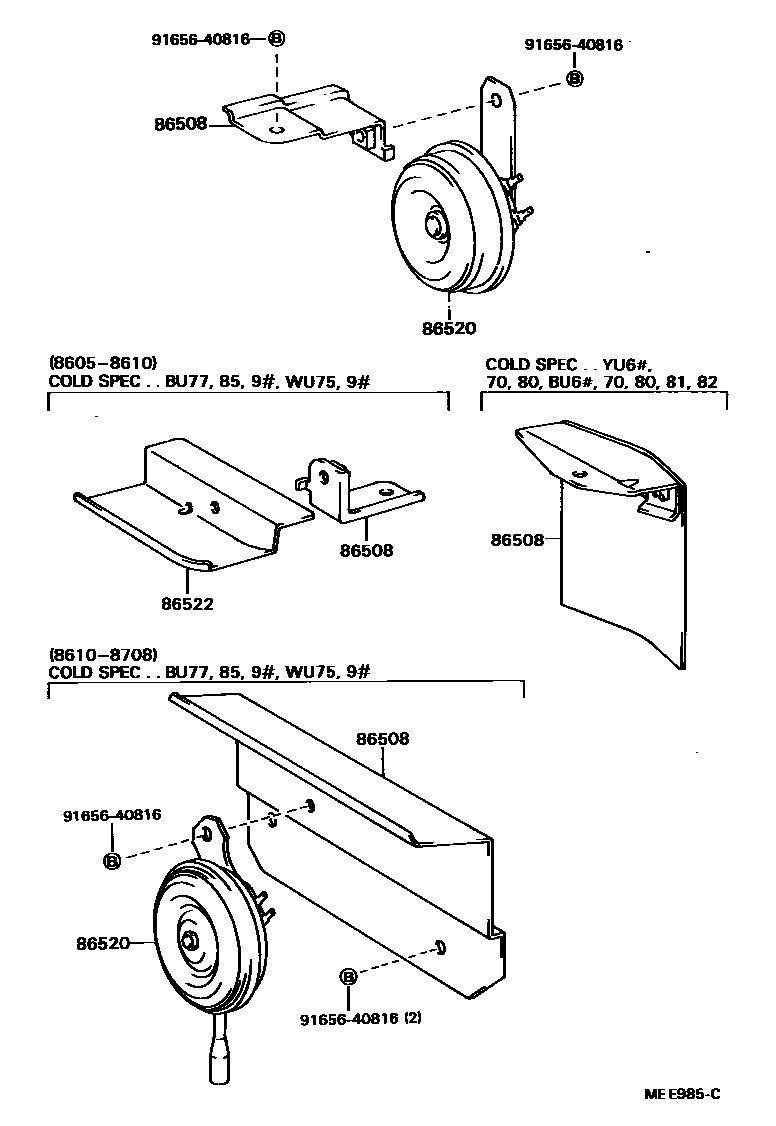

HORN

86508BRACKET SUB-ASSY, HORN

main86505-95400iYU6#,70,80198409-198708

W/PROTECTOR(COLD SPEC)

main86591-95401iYU6#,70,80198409-198708

main86591-95403iWU75,9#198409-198708

86520HORN ASSY, LOW PITCHED

main86520-95407iWU75,9#198409-198507

main86520-95415iYU60,70,80198409-198507

main86520-95422iWU75,9#198507-198708

main86520-95423iYU6#,70,80198507-198708

86522PROTECTOR, HORN

main86522-95402iWU75,9#198605-198708

COLD SPEC

9165640816

main91656-40816

4 parts on this diagram · 1 diagram in section
