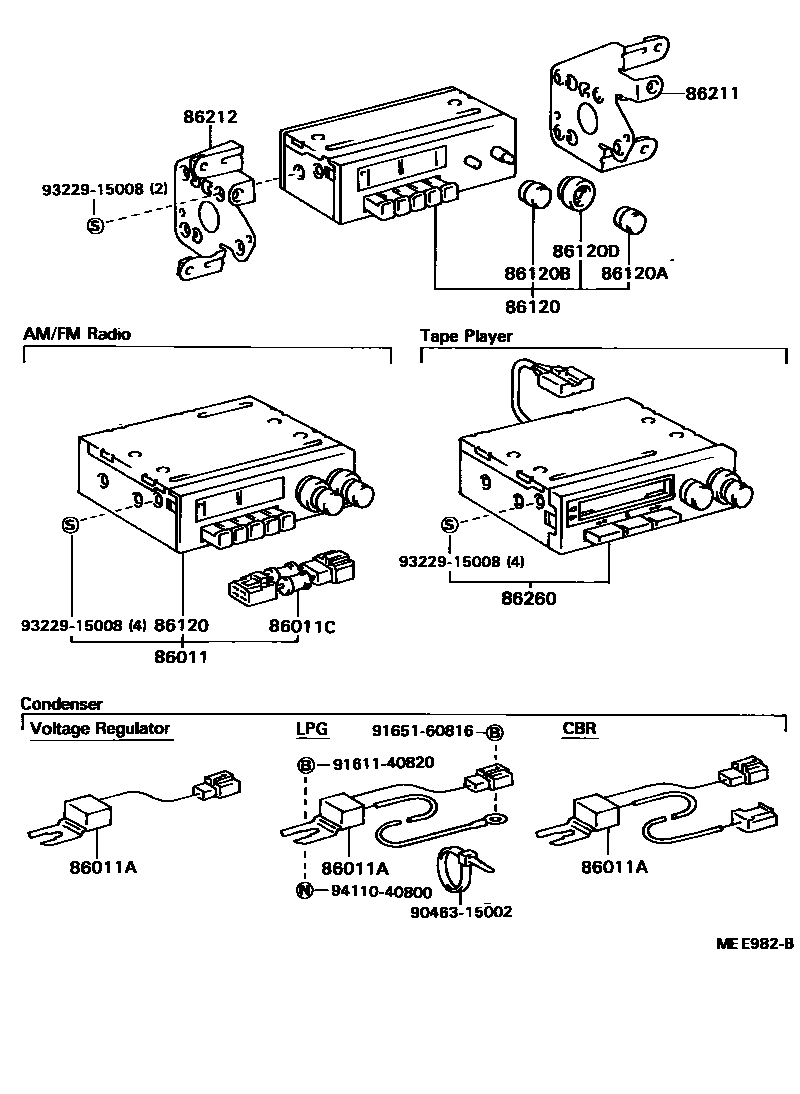

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011RADIO & SETTING PARTS SET

main86011-95422iWU75,9#198409-198608

24V,AM/FM 5-BUTTON

main86011-95423iYU6#,70,80198409-198608

12V,AM/FM 5-BUTTON

main86011-95424iWU75,9#198608-198708

24V,AM/FM 5-BUTTON

main86011-95425iYU6#,70,80198608-198708

12V,AM/FM 5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04040iWU75,9#,YU6#,70,80198409-198708

VOLTAGE REGULATOR

main90980-04050iYU60,80..LPG198409-198708

IGNITION COIL

main90980-04052iYU6#,70..CBR198409-198708

IGNITION COIL

86011CFILTER, NOISE

main90980-05049iWU75,9#; YU6#,70,80198409-198708

12V,AM/FM 5-BUTTON; 24V,AM/FM 5-BUTTON

86120RECEIVER ASSY, RADIO

main86120-16530iYU6#,70,80198608-198708

main86120-17010iYU6#,70,80198409-198608

12V,AM 5-BUTTON

main86120-17020iYU6#,70,80198409-198608

12V,AM/FM 5-BUTTON

main86120-89131iYU6#,70,80198608-198708

main86120-95403iWU75,9#198409-198608

24V,AM 5-BUTTON

main86120-95404iWU75,9#198409-198608

24V,AM/FM 5-BUTTON

main86120-95410iWU75,9#198608-198708

main86120-95411iWU75,9#198608-198708

86120AKNOB, RADIO RECEIVER SWITCH

86120BKNOB, RADIO RECEIVER TUNING, NO.1

86120DKNOB, RADIO RECEIVER TONE

86211BRACKET, RADIO, NO.1

main86211-95406iWU75,9#,YU6#,70,80198409-198708

86212BRACKET, RADIO, NO.2

main86212-95406iYU6#,70,80198409-198708

86260TAPE PLAYER ASSY

main86021-95410iWU75,9#198409-198608

24V

main86021-95411iYU6#,70,80198409-198608

12V

main86021-95412iWU75,9#198608-198708

24V

main86021-95413iYU6#,70,80198608-198708

12V

9046315002

main90463-15002

9161140820

main91611-40820

9165160816

main91651-60816

9322915008

main93229-15008

9411040800

main94110-40800

15 parts on this diagram · 1 diagram in section
