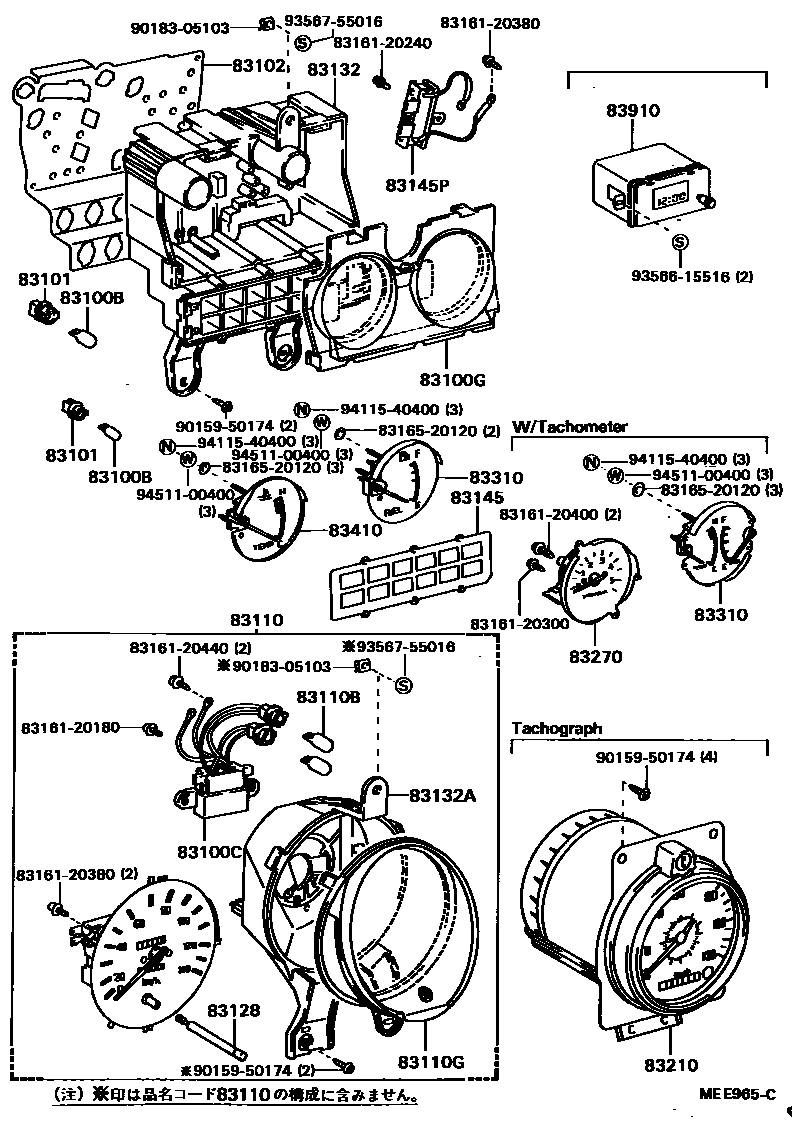

METER

0001 1 0002 1 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iYU6#,70..CBR198409-198708

main90981-11022×3iWU75,9#198409-198708

main99132-12034×8iYU6#,70,80198409-198708

main99134-12030×9iWU75,9#198409-198708

83100CCONNECTOR, COMBINATION METER

main83101-95405iWU75,9#198409-198708

main83101-95407iYU6#,70,80198409-198708

83100GGLASS, COMBINATION METER

main83134-92600iWU75,9#198409-198708

W/*EB & TACHOMETER;W/*EB,*OM & TACHOMETER

main83134-95405iYU6#,70,80198409-198708

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iYU6#,70..CBR198409-198708

12V 1.4W

main83101-20040×8iYU6#,70,80198409-198708

12V 3.4W

main83101-89101×9iWU75,9#198409-198708

24V 3W

main83101-95020×3iWU75,9#198409-198708

24V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-92600iWU75,9#198409-198708

W/*EB & TACHOMETER

main83247-95411iWU75,9#198409-198708

W/*EB,*OM & TACHOMETER

main83247-95414iYU6#,70..CBR198409-198708

main83247-95B00iYU60,80..LPG198409-198708

83110SPEEDOMETER ASSY

main83110-95437iWU75,9#198409-198708

main83110-95439iYU6#,70,80198409-198708

83110BBULB, SPEEDOMETER

main99132-12034×2iYU6#,70,80198409-198708

12V 3.4W

main99134-12030×2iWU75,9#198409-198708

24V 3W

83110GGLASS, SPEEDOMETER

main83134-95406iWU75,9#,YU6#,70,80198409-198708

83128KNOB, TRIP COUNTER

main83128-89300iWU75,9#,YU6#,70,80198409-198708

83132CASE, COMBINATION METER

main83132-92602iWU75,9#198409-198708

W/*EB & TACHOMETER;W/*EB,*OM & TACHOMETER

main83132-95402iYU6#,70,80198409-198708

83132ACASE, METER

main83132-95403iWU75,9#,YU6#,70,80198409-198708

83145LENS, METER, NO.1

main83145-92020iWU75,9#198409-198708

W/*EB & TACHOMETER

main83145-95422iWU75,9#198409-198708

W/*EB & *OM;W/*EB,*OM & TACHOMETER

main83145-95426iYU6#,70..CBR198409-198708

main83145-95B00iYU60,80..LPG198409-198708

83145PDROPPER, METER

main83131-95401iWU75,9#198409-198708

83210TACHOGRAPH ASSY

main83210-95409iWU75,9#198409-198708

7-DAYS

main83210-95411iWU75,9#198409-198708

1-DAY

83270TACHOMETER ASSY, ENGINE

main83242-95403iWU75,9#198409-198708

83310GAGE ASSY, FUEL RECEIVER

main83243-92600iWU75,9#198409-198708

W/*EB & TACHOMETER;W/*EB,*OM & TACHOMETER

main83243-95404iYU6#,70,80198409-198708

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95403iYU6#,70,80198409-198708

83910CLOCK ASSY

main83910-95402iWU75,9#198409-198708

main83910-95403iYU6#,70,80198409-198708

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

8316120300CASE, COMBINATION METER MIRROR, NO.1

main83161-20300

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120400CASE, COMBINATION METER MIRROR, NO.1

main83161-20400

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316520120MIRROR, COMBINATION METER, NO.2

main83165-20120

9015950174

main90159-50174

9018305103

main90183-05103

9356615516

main93566-15516

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400

31 parts on this diagram · 4 diagrams in section
