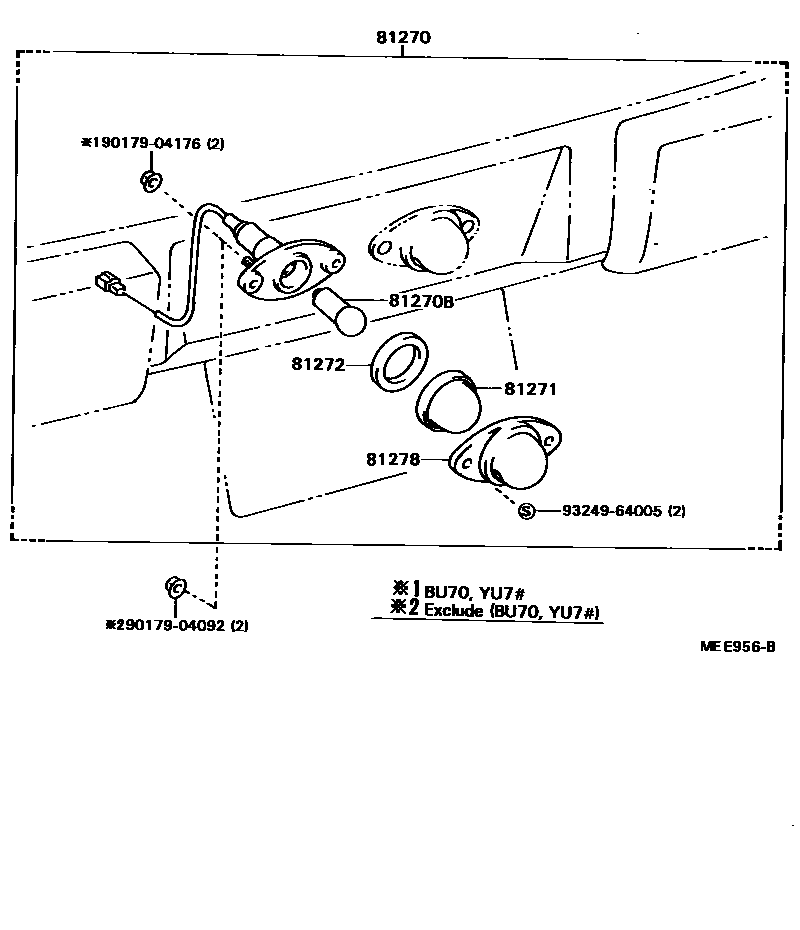

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-29725×2iYU60198508-198608

main81270-39255×2iYU70198409-198708

main81270-95015×2iYU60198608-198708

main81270-95405×2iWU75,9#198409-198508

main81270-95409×2iYU80198409-198508

main81270-95410×2iYU60198409-198508

main81270-95413×2iWU75,9#198508-198608

main81270-95414×2iYU61,80198508-198608

main81270-95421×2iWU75,9#198608-198708

main81270-95422×2iYU61,80198608-198708

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iYU6#,70,80198409-198708

main99134-11120×2iWU75,9#198409-198708

81271LENS, LICENSE PLATE LAMP

main81271-10011×2iWU75,9#,YU6#,70,80198409-198708

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iWU75,9#,YU6#,70,80198409-198708

81278COVER, LICENSE PLATE LAMP

main81278-10011×2iYU60198409-198708

main81278-92607×2iWU75,9#; YU61,70,80198409-198708

9017904092

main90179-04092

9017904176

main90179-04176

9324964005

main93249-64005

8 parts on this diagram · 1 diagram in section
