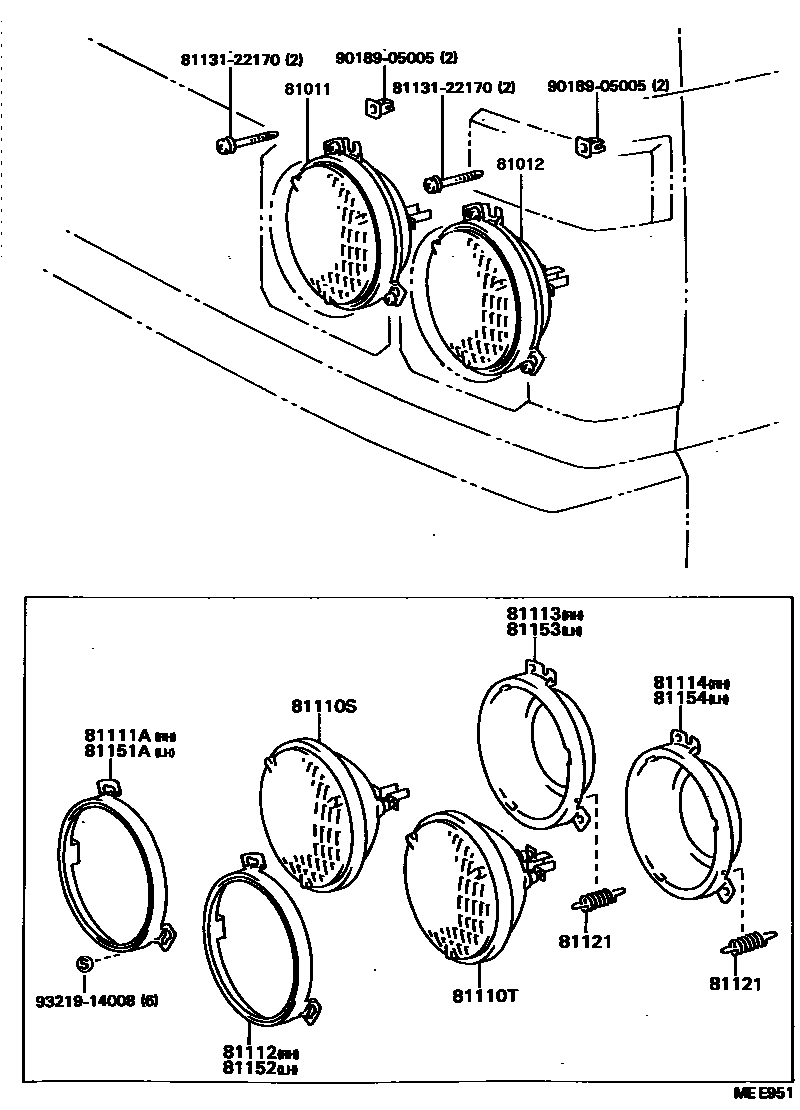

HEADLAMP

81011HEADLAMP SUB-ASSY, NO.1

main81011-39075iWU75,9#198409-198608

RH

main81011-39085iYU6#,70,80198409-198608

RH

main81011-95406iWU75,9#198608-198708

RH

main81011-95407iYU6#,70,80198608-198708

RH

main81013-39015iWU75,9#198409-198708

LH

main81013-39025iYU6#,70,80198409-198708

LH

81012HEADLAMP SUB-ASSY, NO.2

main81012-39095iWU75,9#198409-198608

RH

main81012-39105iYU6#,70,80198409-198708

RH

main81012-95408iWU75,9#198608-198708

RH

main81014-39015iWU75,9#198409-198708

LH

main81014-39025iYU6#,70,80198409-198708

LH

81110SSEALED BEAM UNIT, NO.1

main90981-02039×2iYU6#,70,80198409-198708

main90981-08017×2iWU75,9#198409-198708

81110TSEALED BEAM UNIT, NO.2

main90981-02040×2iYU6#,70,80198409-198708

main90981-08018×2iWU75,9#198409-198708

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14261iWU75,9#,YU6#,70,80198409-198708

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-14261iWU75,9#,YU6#,70,80198409-198708

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14100iWU75,9#,YU6#,70,80198409-198708

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-20210iWU75,9#,YU6#,70,80198409-198708

81121SPRING, HEADLAMP TENSION

main81121-95400×2iWU75,9#,YU6#,70,80198409-198708

LH

main90506-16017×2iWU75,9#,YU6#,70,80198409-198708

RH

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14261iWU75,9#,YU6#,70,80198409-198708

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-14261iWU75,9#,YU6#,70,80198409-198708

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-14100iWU75,9#,YU6#,70,80198409-198708

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-20170iWU75,9#,YU6#,70,80198409-198708

8113122170SCREW, HEADLAMP ADJUSTING

main81131-22170

9018905005

main90189-05005

9321914008

main93219-14008

16 parts on this diagram · 1 diagram in section
