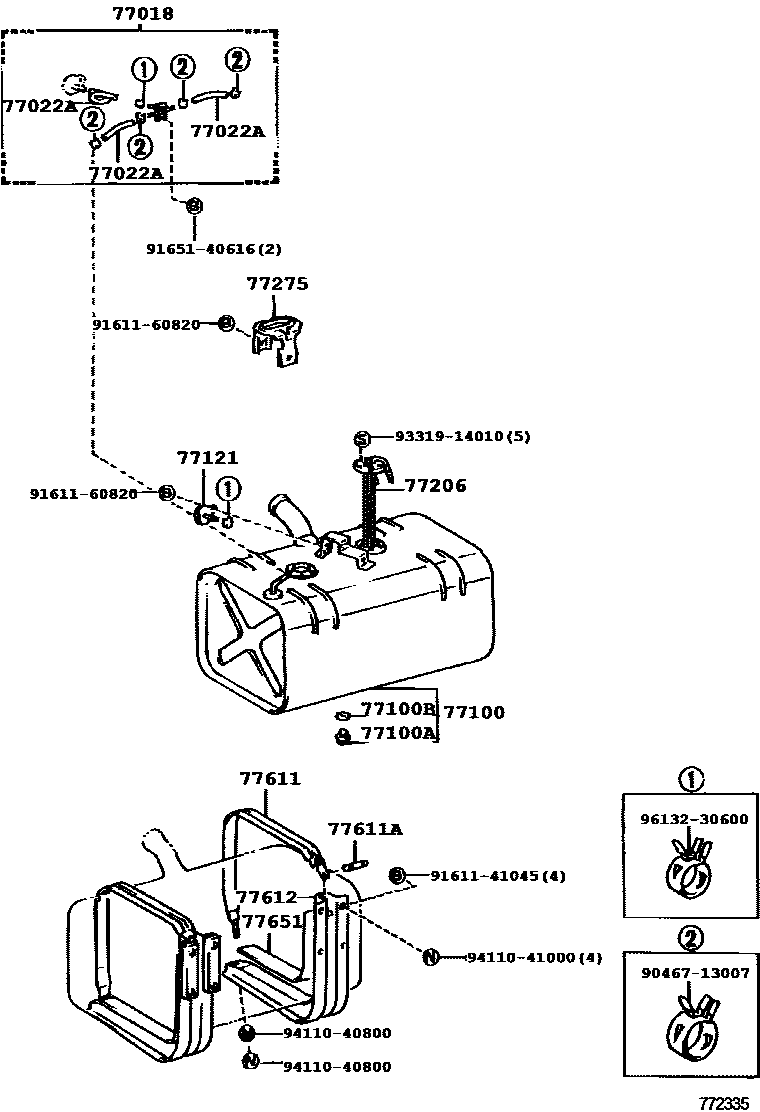

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36051iYU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP198409-198708

main77018-36090iYU60..(T1,T2)..CBR198409-198708

*TCA=75L

main77018-36130×2iWU75,9#; WU9#198409-198708

W/SUB TANK

main77018-36140iYU6#..(DM1,T1,T3)..CBR198409-198708

*TCA=70L

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06040iYU60..(T1,T2)..CBR198409-198708

main95332-08030×2iYU60..(T1,T2)..CBR198409-198708

77100TANK ASSY, FUEL

main77001-36670iYU60..(T1,T2)..CBR198409-198708

*TCA=75L

main77001-36680iYU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP198409-198708

*TCA=60L

main77001-36710iWU75,9#198409-198708

*TCA=90L

main77001-36720iWU9#198409-198708

SUB TANK,*TCA=70L

main77001-36730iYU6#..(DM1,T1,T3)..CBR198409-198708

*TCA=70L

main77001-36760iYU60,80..T3..LPG198409-198708

main77001-36770iYU60..T2..LPG198409-198708

77100APLUG(FOR FUEL TANK)

main90105-12018iWU75,9#,YU6#,70..CBR,DSL198409-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iWU75,9#,YU6#,70..CBR,DSL198409-198708

77121PROTECTOR, FUEL TUBE

main77243-36010×2iWU75,9#; WU9#198409-198708

W/SUB TANK

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36121iYU60..(T1,T2)..CBR198409-198708

*TCA=75L

main77017-36150iYU60,70..SRF,TW1,TW2198409-198708

*TCA=60L

main77017-36191iWU75,9#,YU6#..(DM1,T1,T3)..(CBR,DSL)198409-198708

*TCA=70L,90L

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-36010iWU75,YU61198409-198708

77611BAND, FUEL TANK

main77601-25090×2iYU60,70..SRF,TW1,TW2; YU60..T3..WT..CBR..ATP198409-198708

*TCA=60L

main77601-36090×2iYU60..(T1,T2)..CBR198409-198708

*TCA=75L

main77601-36140×4iWU75,9#;YU60..T3..ST..CBR; WU9#198409-198708

*TCA=70L,90L; W/SUB TANK

main77601-36150×2iWU9#..ATP; YU6#..(DM1,T3)..WT..CBR; YU60..T1198409-198708

W/LONG STAY

77611APIN (FOR FUEL TANK BAND)

main77629-25010×4iYU60,70..SRF,TW1,TW2; YU60..T3..WT..CBR..ATP198409-198708

*TCA=60L

main77629-36010×2iWU75,9#,YU6#..03S..(CBR,DSL); WU9#198409-198708

W/SUB TANK

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011×2iYU60,70..SRF,TW1,TW2; YU60..T3..WT..CBR..ATP198409-198708

*TCA=60L

main77501-36080×2iWU9#..ATP198409-198708

W/LONG STAY

main77633-36090×2iWU75,9#;YU60..T3..ST..CBR; WU9#198409-198708

*TCA=70L,90L; W/SUB TANK

main77633-36111×2iYU6#..(DM1,T3)..WT..CBR; YU60..T1198409-198708

W/LONG STAY

main77633-36120×2iYU60..(T1,T2)..CBR198409-198708

*TCA=75L

main77633-36150×2iYU60,80..T3..LPG198409-198708

main77633-36160×2iYU60..T2..LPG198409-198708

77651PACKING, FUEL TANK BRACKET

main77651-26040×2iYU60,70..SRF,TW1,TW2; YU60..T3..WT..CBR..ATP198409-198708

*TCA=60L

main77651-36100×4iWU9#; YU6#..(DM1,T3)..CBR198409-198708

*TCA=70L,90L; W/SUB TANK

main77651-36110×2iYU60..(T1,T2)..CBR198409-198708

*TCA=75L

9046713007

main90467-13007

9161141045

main91611-41045

9161160820

main91611-60820

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9613230600

main96132-30600

20 parts on this diagram · 8 diagrams in section
