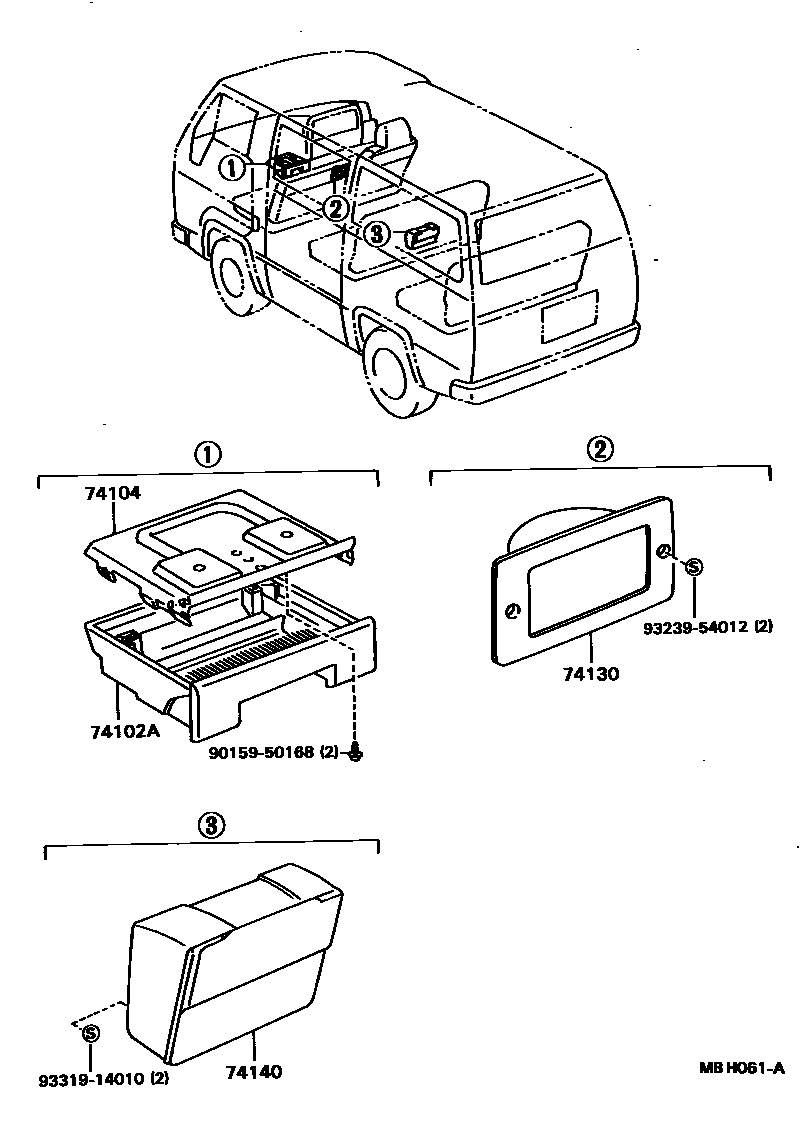

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10020-01iWU75,9#,YU6#,70,80..DYN198409-198708

BLACK,BLACK

main74102-10020-04iWU75,9#,YU6#,80..TOY198508-198708

BLUE,BLUE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95406iWU75,9#,YU6#,70,80198409-198708

74130RECEPTACLE ASSY, REAR ASH

main74106-87201-01iYU60,70..06S198409-198708

BLACK,BLACK

74140RECEPTACLE ASSY, ASH(FOR SEAT)

9015950168

main90159-50168

9323954012

main93239-54012

9331914010

main93319-14010

7 parts on this diagram · 1 diagram in section
