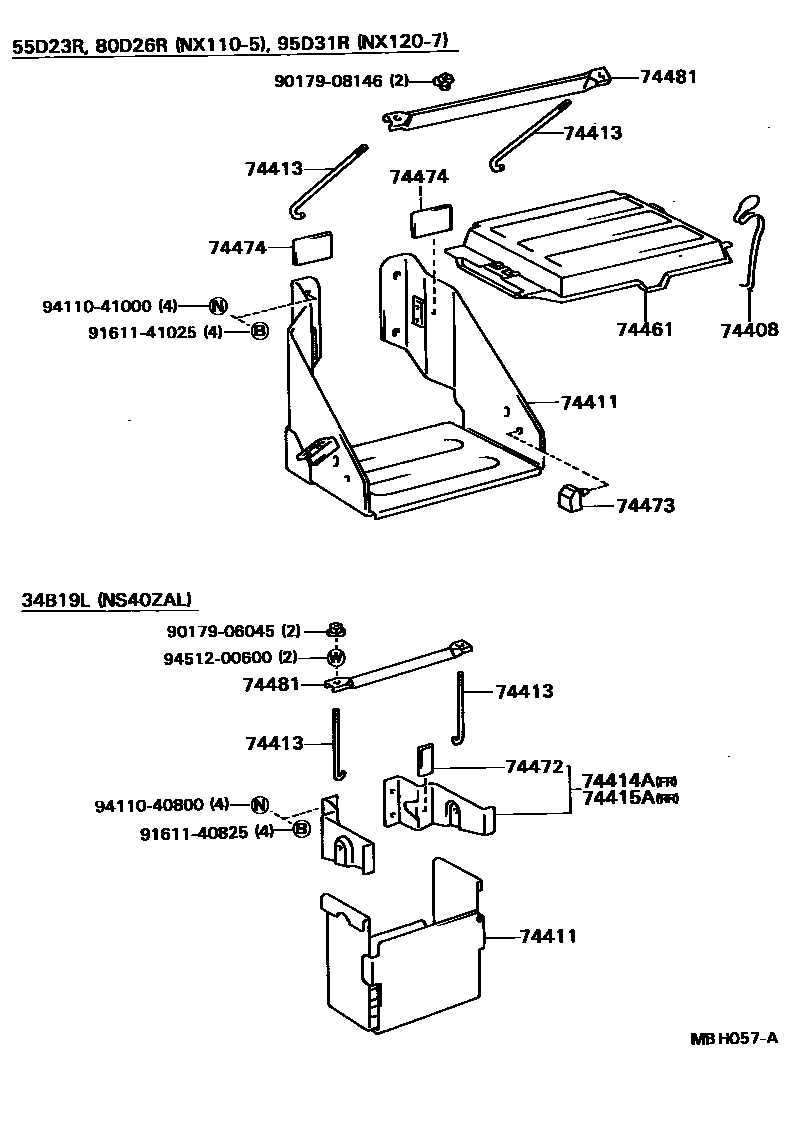

BATTERY CARRIER

74408CLAMP SUB-ASSY, BATTERY COVER

main74481-36030×2iWU75198409-198608

74411CARRIER, BATTERY

main74042-36010iWU75,9#198409-198708

80D26R(NX110-5)

main74042-36020iYU6#,80198409-198708

55D23R,80D26R(NX110-5)

main74042-36030iYU70198409-198708

55D23R

main74042-36060iWU75,9#198409-198708

95D31R(NX120-7)

main74421-25010iYU6#,70..CBR198409-198708

34B19L(NS40ZAL)

74413BOLT, BATTERY CLAMP

main74451-25020×2iYU6#,70..CBR198409-198708

34B19L(NS40ZAL)

main74451-36070×2iWU75,9#,YU6#,80..TOY198409-198708

55D23R,80D26R(NX110-5)

main74451-36090×2iWU75,9#198409-198708

95D31R(NX120-7)

74414ABRACKET, BATTERY, NO.1

main74411-25011iYU6#,70..CBR198409-198708

74415ABRACKET, BATTERY, NO.2

main74412-25011iYU6#,70..CBR198409-198708

74461COVER, BATTERY

main74461-36100iWU75198409-198608

80D26R(NX110-5)

main74461-36110iWU75198409-198708

95D31R(NX120-7)

74472PAD, BATTERY SIDE

main74472-25010×2iYU6#,70..CBR198409-198708

74473SPACER, BATTERY

main74473-36040×2iYU6#,70,80198409-198708

55D23R

main74473-36050×2iYU6#..20T..CBR..ATP198409-198708

80D26R(NX110-5)

74474PAD, BATTERY

main74473-36040×2iWU75,9#,YU60,80..DSL,LPG198409-198708

main74475-36040×2iYU6#,70..CBR198409-198708

74481CLAMP, BATTERY HOLD DOWN

main74404-25021iYU60,80198409-198508

55D23R

main74453-25020iYU60,70..CBR198409-198508

34B19L(NS40ZAL)

main74453-25080iYU6#,70..CBR198508-198708

34B19L(NS40ZAL)

main74453-25100iYU6#,80198508-198708

55D23R

main74453-36070iWU75,9#198409-198708

80D26R(NX110-5),95D31R(NX120-7

main74453-36080iYU70198409-198708

55D23R

9017906045

main90179-06045

9017908146

main90179-08146

9161140825

main91611-40825

9161141025

main91611-41025

9411040800

main94110-40800

9411041000

main94110-41000

9451200600

main94512-00600

17 parts on this diagram · 1 diagram in section
