FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95421iWU75,9#,YU6#,70,80198409-198701

main67001-95424iWU75,9#,YU6#,70,80198701-198708

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95425iWU75,9#,YU6#,70,80198409-198701

main67002-95427iYU60..T3..WT..CBR..ATP198409-198701

W/FR SLIDE DOOR

main67002-95429iWU75,9#,YU6#,70,80198701-198708

main67002-95432iYU60..T3..WT..CBR..ATP198701-198708

W/FR SLIDE DOOR

67111PANEL, FRONT DOOR, OUTER RH

main67111-95406iWU75,9#,YU6#,70,80198409-198708

67112PANEL, FRONT DOOR, OUTER LH

main67112-95405iWU75,9#,YU6#,70,80198409-198708

main67112-95407iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67503-95400iWU75,9#,YU6#,70,80198409-198708

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67504-95400iWU75,9#,YU6#,70,80198409-198708

main67504-95401iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95018-04iWU75,9#,YU6#,80..TOY198508-198708

BLUE,BLUE

main67610-95019-03iWU75,9#,YU6#,70,80..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main67610-95021-04iWU75,9#,YU6#,80..TOY198508-198708

W/POCKET,BLUE,BLUE

main67610-95022-03iWU75,9#,YU6#,70,80..DYN198508-198708

W/POCKET,SHADOW GRAY,SHADOW GRAY

main67610-95409-03iWU75,9#,YU60,70,80198409-198508

SHADOW GRAY,SHADOW GRAY

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020iWU75,9#,YU6#,70,80198409-198708

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95021-04iWU75,9#,YU6#,80..TOY198508-198708

BLUE,BLUE

main67620-95022-03iWU75,9#,YU6#,70,80..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main67620-95024-04iYU60..TOY..T3..WT..CBR..ATP198508-198708

W/FR SLIDE DOOR,BLUE,BLUE

main67620-95415-03iWU75,9#,YU60,70,80198409-198508

SHADOW GRAY,SHADOW GRAY

main67620-95416-03iYU60..DYN..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR,SHADOW GRAY,SHADOW GRAY

67777POCKET, FRONT DOOR TRIM, RH

main67778-22030-23iWU75,9#,YU6#,70,80..DYN198508-198708

GRAY,SHADOW GRAY

main67778-22030-44iWU75,9#,YU6#,80..TOY198508-198708

BLUE,BLUE

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95404iWU75,9#,YU6#,70,80198409-198708

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95404iWU75,9#,YU6#,70,80198409-198708

main67832-95405iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

67836ACOVER, FRONT DOOR SERVICE HOLE SUB

main67836-95400iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95406iWU75,9#,YU6#,70,80198409-198708

main67861-95407iWU75,9#,YU60,70,80198409-198508

COLD SPEC

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95406iWU75,9#,YU6#,70,80198409-198708

main67862-95407iWU75,9#,YU60,70,80198409-198508

COLD SPEC

main67862-95408iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

main67862-95409iYU60..T3..WT..CBR..ATP198409-198508

W/FR SLIDE DOOR,COLD SPEC

67867CLIP, DOOR WEATHERSTRIP

main67867-89103×28iWU75,9#,YU6#,70,80198508-198708

LH

main67867-95401×28iWU75,9#,YU60,70,80198409-198508

LH,WHITE

main67868-30040×56iWU75,9#,YU60,70,80198409-198508

NATURAL

main67868-89101×27iWU75,9#,YU6#,70,80; YU60..T3..WT..CBR..ATP198508-198708

LH,W/FR SLIDE DOOR; RH

main67868-95401×28iWU75,9#,YU60,70,80198409-198508

RH,WHITE

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95406iWU75,9#,YU6#,70,80198409-198708

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95406iWU75,9#,YU6#,70,80198409-198708

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iWU75,9#,YU6#,70,80198409-198708

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iWU75,9#,YU6#,70,80198409-198708

68141RUN, FRONT DOOR GLASS

main68141-95406×2iWU75,9#,YU6#,70,80198409-198607

main68141-95407×2iWU75,9#,YU6#,70,80198607-198708

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95402×2iWU75,9#,YU6#,70,80198409-198708

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080×4iWU75,9#,YU6#,70,80198409-198708

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95406iWU75,9#,YU6#,70,80198409-198708

RH

main68172-95402iWU75,9#,YU6#,70,80198409-198708

LH

main68172-95403iYU60..T3..WT..CBR..ATP198409-198708

LH,W/FR SLIDE DOOR

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080×4iWU75,9#,YU6#,70,80198409-198708

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iWU75,9#,YU6#,70,80198409-198708

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iWU75,9#,YU6#,70,80198409-198708

68610CHECK ASSY, FRONT DOOR

main68610-95400×2iWU75,9#,YU6#,70,80198409-198708

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iWU75,9#,YU60,70,80198409-198507

main68617-90A00×2iWU75,9#,YU6#,70,80198507-198708

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9016840025

main90168-40025

9017906070

main90179-06070

9033325001

main90333-25001

9095006001

main90950-06001

9152160610

main91521-60610

9322915008

main93229-15008

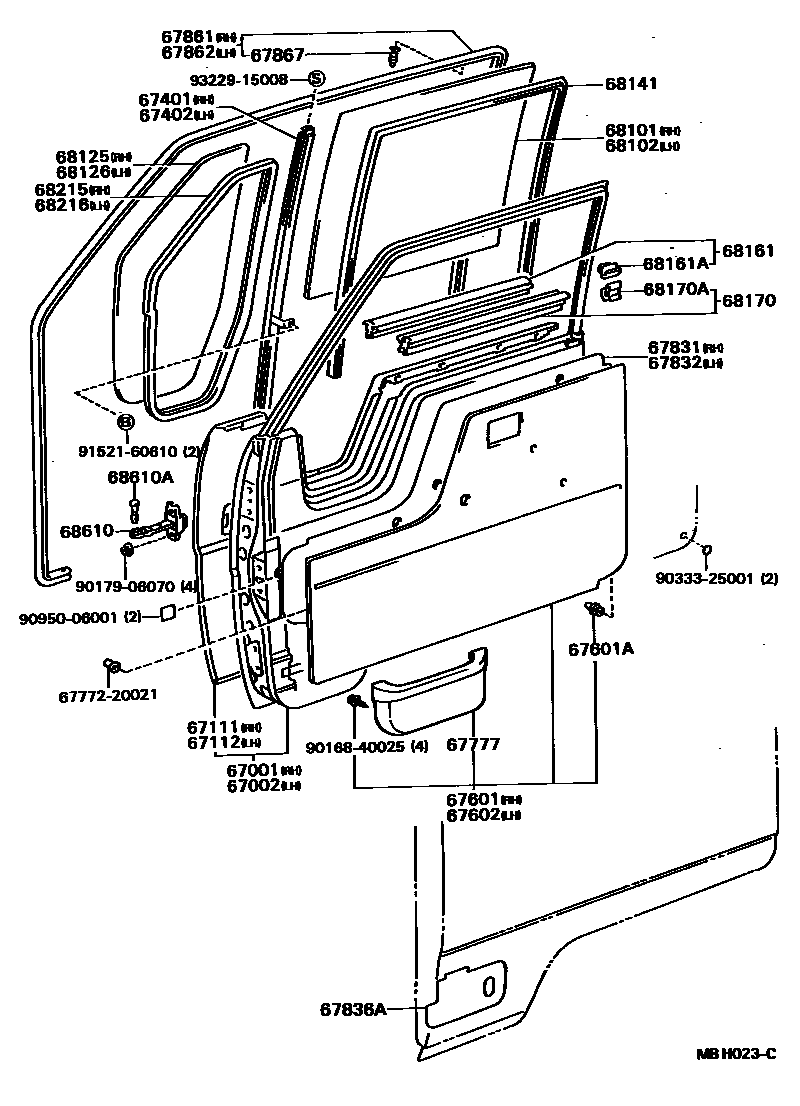

36 parts on this diagram · 1 diagram in section
