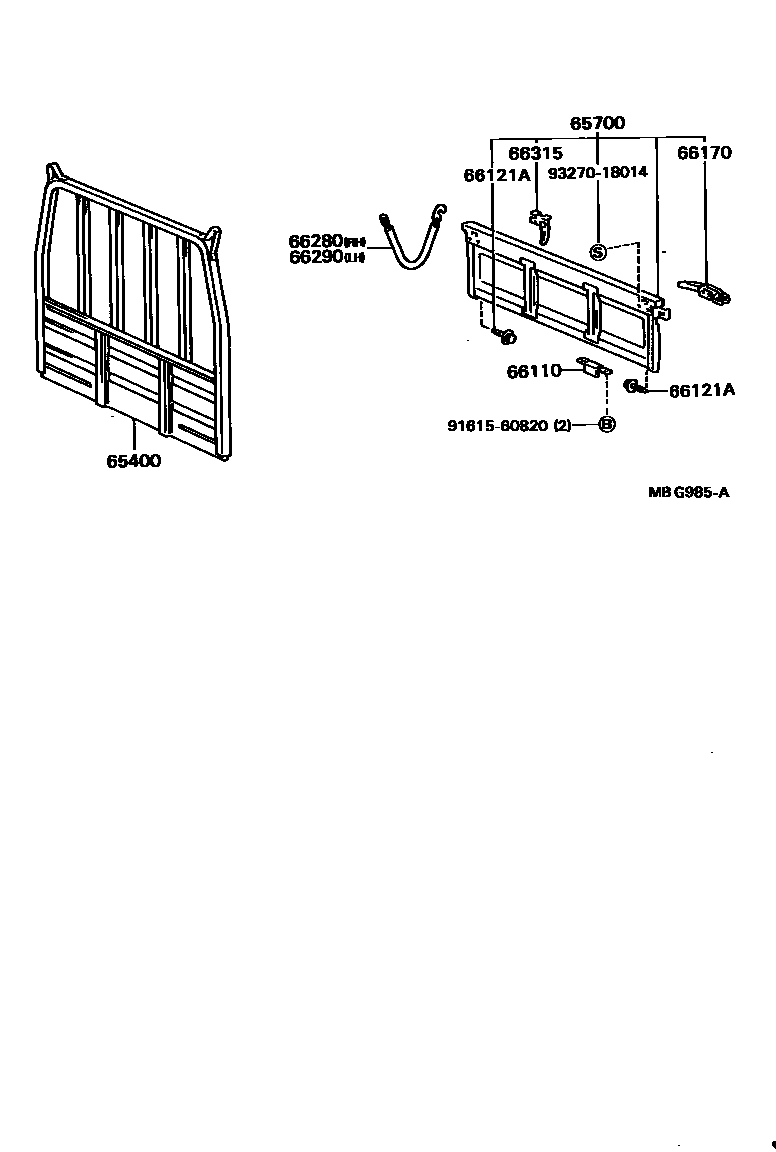

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0004 1

65400FRAME ASSY, REAR BODY GUARD

main65400-92106iYU80198608-198708

main65400-92115iWU95198608-198708

main65400-92713iYU60..T3..ST198409-198508

main65400-92714iYU60..T2198409-198508

main65400-92715iYU60..WT..175198409-198608

main65400-92717iYU60..T3..WT198409-198608

main65400-92724iYU60..T3..ST198508-198608

main65400-92725iYU60..T2198508-198608

main65400-92728iYU60..WT..175198608-198708

main65400-92731iYU60..T3..WT198608-198708

main65400-92734iYU60..T2198608-198708

main65400-92735iYU60..T3..ST198608-198708

main65400-92809iWU9#198409-198608

main65400-92827iYU80198409-198508

main65400-92846iYU80198508-198608

main65400-92884iWU95198508-198608

main65400-92899iWU90198608-198708

main65400-95435iYU60..T1198409-198708

main65402-93105iYU61198601-198708

main65410-92711iYU60..ST..175198409-198708

65700GATE ASSY, REAR BODY TAIL

main65503-96319iWU75198409-198708

main65700-92710iYU60..T2,T3,TW2198409-198508

main65700-92711iYU80198409-198508

main65700-92714iYU60..T2,T3,TW2198508-198608

main65700-92716iYU80198508-198608

main65700-92717iYU60..T2,T3,TW2198608-198708

main65700-92718iYU80198608-198708

main65700-92806iWU9#198409-198508

main65700-92814iWU9#198508-198608

main65700-92816iWU95198508-198608

*59

main65700-92818iWU9#198608-198708

main65700-92823iWU95198608-198708

*59

main65700-95030iYU60..T1,TW1198409-198708

main65701-93100iYU61198601-198608

main65701-93104iYU61198608-198708

66110HINGE ASSY, TAIL GATE

main66110-92701iYU60..T2,T3,TW2198409-198608

main66110-92702iWU9#,YU80198608-198708

main66110-95014iYU60..T1,TW1198409-198708

66121ABOLT, TAIL GATE MALE

main66121-95012iYU60..T1,TW1198409-198708

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iYU60..T1,TW1198409-198708

66280CHAIN ASSY, TAIL GATE, RH

main66280-92201iWU9#,YU60,80..T2,T3,TW2198409-198608

main66280-92702iWU9#,YU60,80..T2,T3,TW2198608-198708

main66280-95403iYU60..T1,TW1198409-198708

66290CHAIN ASSY, TAIL GATE, LH

main66280-92201iWU9#,YU60,80..T2,T3,TW2198409-198608

main66280-92702iWU9#,YU60,80..T2,T3,TW2198608-198708

main66280-95403iYU60..T1,TW1198409-198708

66315HOOK, ROPE

main66311-92701iYU60,80..T2,T3,TW2198409-198708

main66311-92702iYU80198409-198608

main66311-95010iYU60..T1,TW1198409-198708

9161560820

main91615-60820

9327018014

main93270-18014

10 parts on this diagram · 4 diagrams in section
