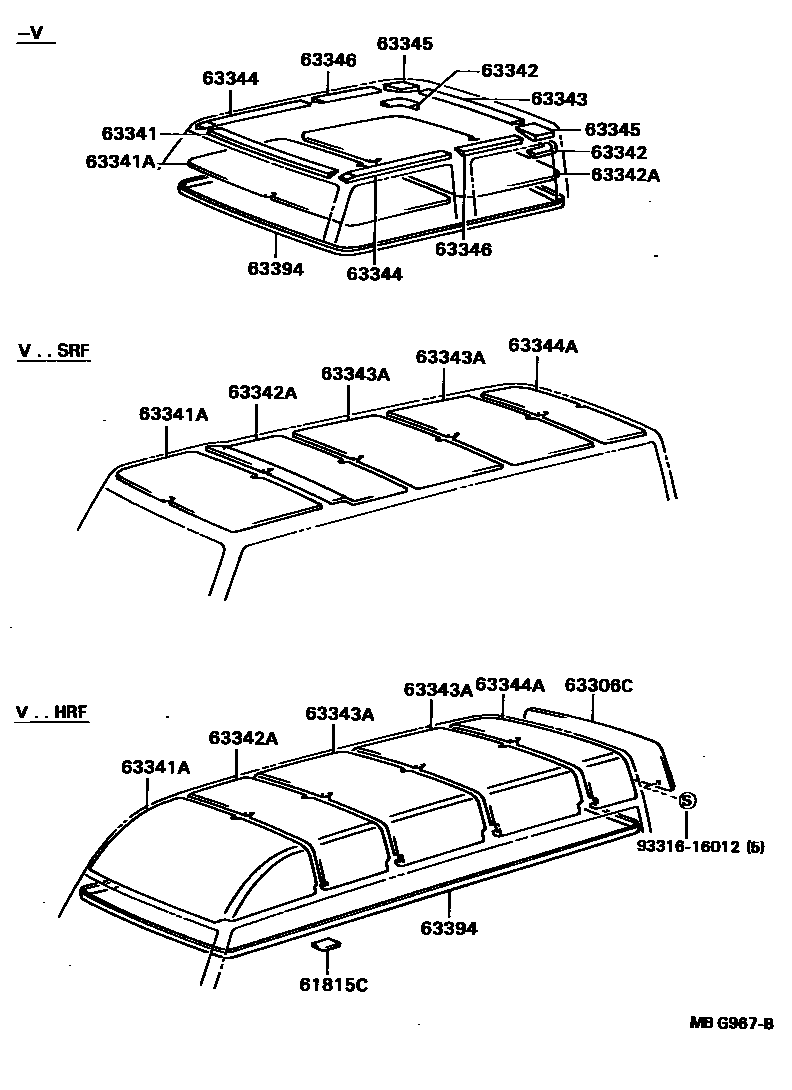

ROOF HEADLINING & SILENCER PAD

61815CCOVER, ROOF SIDE, INNER UPPER

63306CSILENCER SUB-ASSY, ROOF, REAR

63341PAD, ROOF SILENCER, NO.1

main63342-95403iWU75,9#198409-198708

63341ASILENCER, ROOF, NO.1

main63341-92607-03iYU60,70..SRF,TW1,TW2198409-198708

GRAY,GRAY

main63341-95409-03iYU6#,80..20T198409-198708

GRAY,GRAY

main63341-95410-03iYU6#,80..20T198501-198708

W/ROOF VENTILATOR,GRAY,GRAY

main63341-95412-03iWU75,9#198409-198708

GRAY,GRAY

63342PAD, ROOF SILENCER, NO.2

main63343-95400iWU75,9#198409-198708

RH

main63344-95401iWU75,9#198409-198708

LH

63342ASILENCER, ROOF, NO.2

main63342-92602-03iYU60..175198409-198708

GRAY,GRAY

main63342-92604-03iYU70198409-198708

GRAY,GRAY

63343PAD, ROOF SILENCER, NO.3

main63345-95400iWU75,9#198409-198708

63343ASILENCER, ROOF, NO.3

main63343-92600-03×2iYU70198409-198708

GRAY,GRAY

63344PAD, ROOF SILENCER, NO.4

main63347-95400iWU75,9#198409-198708

RH

main63348-95400iWU75,9#198409-198708

LH

63344ASILENCER, ROOF, NO.4

main63344-92600-03iYU70198409-198708

GRAY,GRAY

63345PAD, ROOF SILENCER, NO.5

63346PAD, ROOF SILENCER, NO.6

63394TRIM, ROOF HEADLINING

9331616012

main93316-16012

14 parts on this diagram · 1 diagram in section
