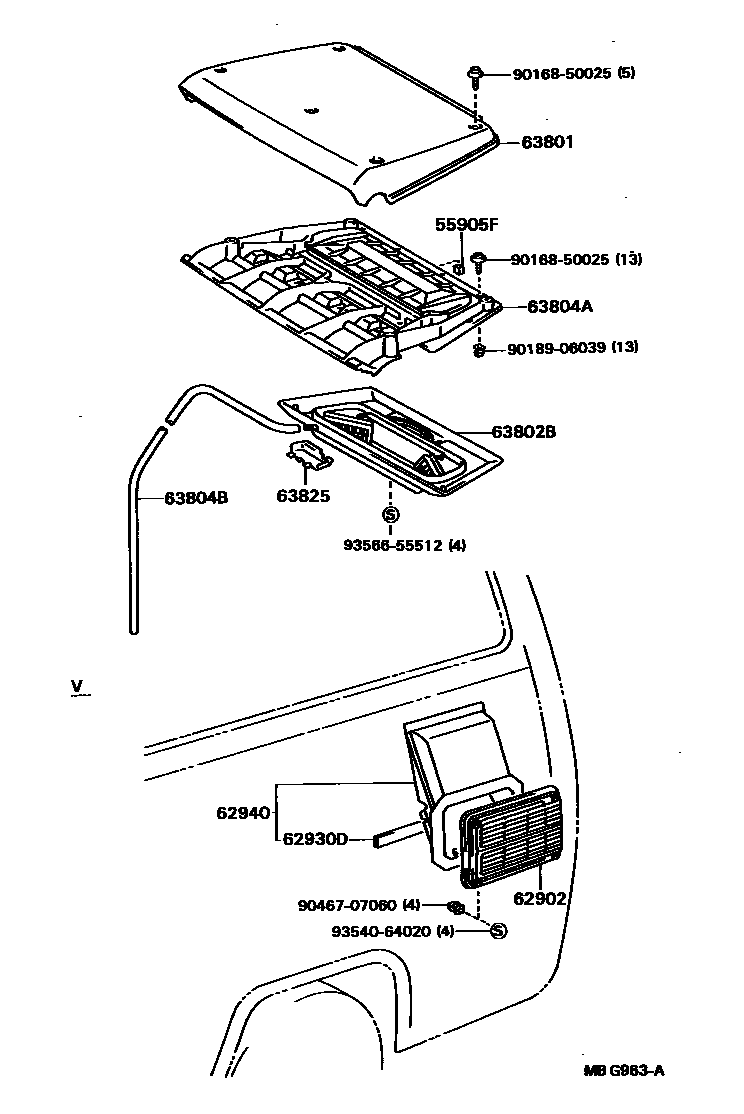

REAR VENTILATOR & ROOF VENTILATOR

55905FKNOB SUB-ASSY, CONTROL

main55905-10110iWU75,9#198409-198708

62902ORNAMENT SUB-ASSY, REAR VENTILATOR, LH

main61513-95A00iYU70198409-198708

62930DGASKET, ROOF SIDE VENT DUCT

main61517-95A00iYU70198409-198708

62940DUCT ASSY, ROOF SIDE VENT, LH

main61510-95A00iYU70198409-198708

63801COVER SUB-ASSY, ROOF VENTILATOR, FRONT

main63801-95400iWU75,9#198409-198508

main63801-95401iWU75,9#,YU6#,80..03S198508-198708

63802BCOVER SUB-ASSY, ROOF VENTILATOR, INNER

main63802-95400-03iWU75,9#198409-198708

GRAY,GRAY

63804AHOUSING SUB-ASSY, ROOF VENTILATOR

main63804-95400iWU75,9#198409-198708

63804BHOSE, DRAIN(FOR ROOF VENTILATOR)

main88539-95402iWU75,9#198409-198708

63825COVER, ROOF VENTILATOR DRAIN HOSE

main63825-95400iWU75,9#198409-198708

9016850025

main90168-50025

9018906039

main90189-06039

9046707060

main90467-07060

9354064020

main93540-64020

9356655512

main93566-55512

14 parts on this diagram · 1 diagram in section
