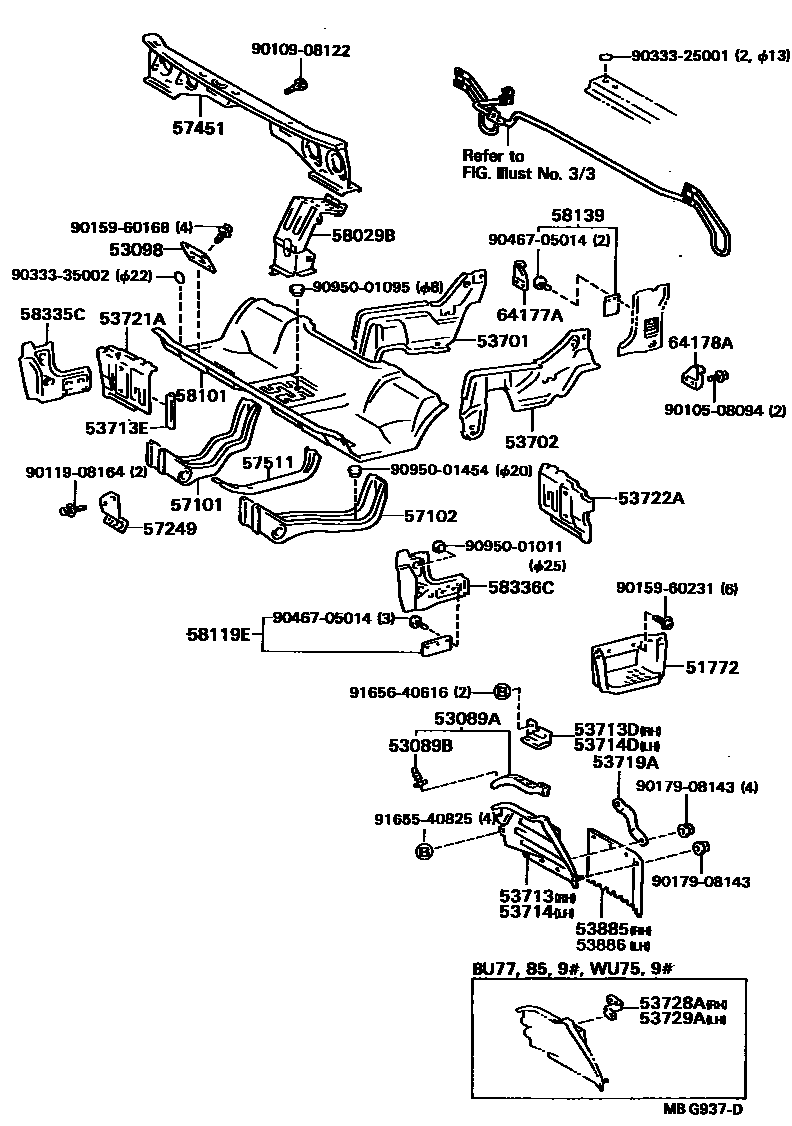

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51772PLATE, STEP

main51771-95406iWU75,9#,YU6#,70,80198409-198708

RH

main51772-95406iWU75,9#,YU6#,70,80198409-198708

LH

53089AMUDGUARD SUB-ASSY, FRONT

main53089-95400×2iWU75,9#,YU6#,80..03S198409-198708

53089BCLIP, FRONT MUDGUARD

main67868-95401×12iWU75,9#,YU6#,80..03S198409-198708

53098COVER SUB-ASSY, AIR CLEANER INLET HOLE

main53098-95402iYU6#,70,80198409-198708

53701APRON SUB-ASSY, FRONT FENDER, RH

main53711-95410iYU6#,70,80198409-198708

main53711-95411iWU75,9#198409-198708

53702APRON SUB-ASSY, FRONT FENDER, LH

main53712-95414iYU6#,70,80198409-198708

main53712-95415iWU75,9#198409-198708

53713APRON, FENDER SIDE, RH

main53707-92601iYU60..175198409-198608

main53707-92603iYU70198409-198708

main53715-92600iYU60..175198608-198708

main53715-95402iYU6#,80..20T198409-198708

main53715-95403iWU75,9#198409-198708

53713DEXTENSION, FRONT FENDER APRON, RH

main53713-95406iYU6#,80..20T198409-198708

53713EPROTECTOR(FOR FENDER SIDE APRON)

53714APRON, FENDER SIDE, LH

main53708-92601iYU60..175198409-198608

main53708-92603iYU70198409-198708

main53716-92600iYU60..175198608-198708

main53716-95402iYU6#,80..20T198409-198708

main53716-95403iWU75,9#198409-198708

53714DEXTENSION, FRONT FENDER APRON, LH

main53714-95406iYU6#,80..20T198409-198708

53719ABRACE, FENDER APRON

main53719-92600×2iYU60,70..SRF,TW1,TW2198409-198708

main53719-95403iWU75,9#,YU6#,80..03S198409-198708

53721AAPRON, FRONT FENDER, NO.2 RH

main53707-95400iWU75,9#198409-198708

main53721-95402iYU6#,70,80198409-198708

53722AAPRON, FRONT FENDER, NO.2 LH

main53708-95400iWU75,9#198409-198708

main53722-95403iYU6#,70,80198409-198708

53728ABRACKET, FENDER APRON, RH

main53728-95400iWU75,9#198409-198708

53729ABRACKET, FENDER APRON, LH

main53729-95400iWU75,9#198409-198708

53885MUDGUARD, FRONT RH

53886MUDGUARD, FRONT LH

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57011-95400iYU6#,70,80198409-198708

main57011-95401iWU75,9#198409-198708

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57012-92602iYU60,70..SRF,TW1,TW2198409-198708

main57012-95400iYU6#,80..20T198409-198708

main57012-95401iWU75,9#198409-198708

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95400iWU75,9#,YU6#,70,80198409-198708

57451MEMBER, FRONT FLOOR CROSS

main57408-95405iYU6#,70,80198409-198603

main57408-95407iWU75,9#198409-198603

main57408-95413iYU6#,70,80198603-198708

main57408-95414iWU75,9#198603-198708

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-95406iWU75,9#198409-198708

58029BBASE SUB-ASSY, FLOOR SHIFT LEVER

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95434iYU6#,70,80198409-198708

main58101-95441iWU9#;WU75..ATP198409-198708

main58101-95446iWU75,9#198409-198708

W/PTO

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iWU75,9#,YU6#,70,80198409-198708

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iWU75,9#,YU6#,80..03S198409-198708

LH

main58139-95401iWU75,9#,YU6#,80..03S198409-198708

RH

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iWU75,9#,YU6#,70,80198409-198708

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iWU75,9#,YU6#,70,80198409-198708

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-95400iYU6#,80..20T198611-198612

main64177-95401iWU75,9#198611-198708

main64177-95402iYU6#,80..20T198612-198708

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-95402iYU6#,80..20T198611-198612

main64178-95403iWU75,9#198611-198708

main64178-95404iYU6#,80..20T198612-198708

9010508094

main90105-08094

9010908122

main90109-08122

9011908164

main90119-08164

9015960168

main90159-60168

9015960231

main90159-60231

9017908143

main90179-08143

9033325001

main90333-25001

9033335002

main90333-35002

9046705014

main90467-05014

9095001011

main90950-01011

9095001095

main90950-01095

9095001454

main90950-01454

9165540825

main91655-40825

9165640616

main91656-40616

45 parts on this diagram · 4 diagrams in section
