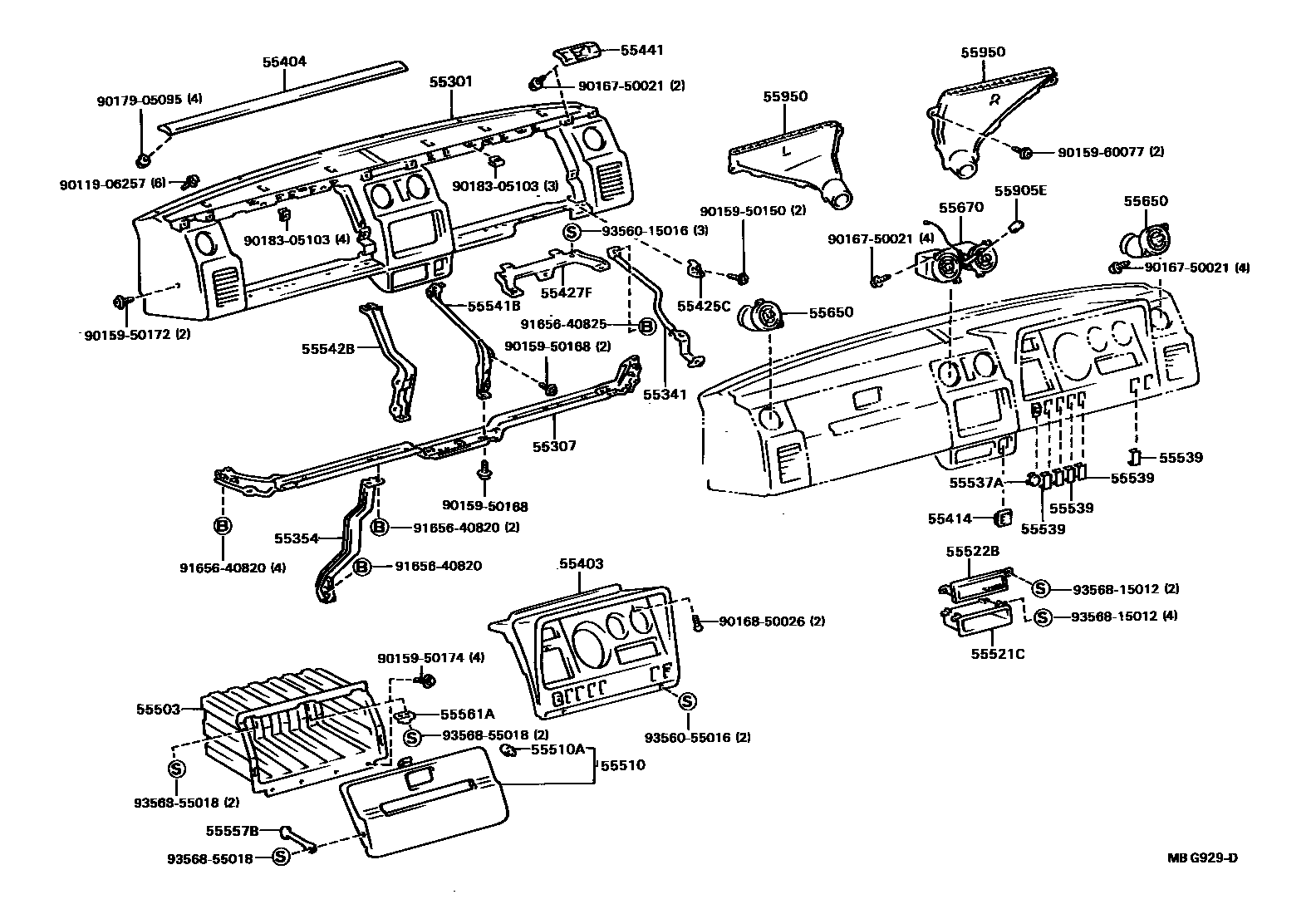

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95418-03iYU6#,70,80..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55311-95418-04iYU6#,80..TOY198508-198708

BLUE,BLUE

main55311-95420-03iWU75,9#..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55311-95420-04iWU75,9#..TOY198508-198708

BLUE,BLUE

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95403iYU6#,70,80198409-198708

main55307-95405iWU75,9#198409-198708

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-95016iWU75,9#,YU6#,70,80198508-198708

main55306-95403iWU75,9#,YU60,70,80198409-198508

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-95400iWU75,9#,YU6#,70,80198409-198708

55403HOOD SUB-ASSY, METER

main55403-95481-03iWU75,9#,YU60,70,80198409-198508

SHADOW GRAY,SHADOW GRAY

main55403-95485-03iWU75,9#198409-198508

W/TACHOGRAPH,SHADOW GRAY,SHADOW GRAY

main55403-95486-03iWU75,9#198409-198508

W/CLOCK,SHADOW GRAY,SHADOW GRAY

main55403-95487-03iWU75,9#198409-198508

W/TACHOGRAPH,CLOCK,SHADOW GRAY,SHADOW GRAY

main55403-95B08-03iWU75,9#,YU6#,70,80..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55403-95B08-04iWU75,9#,YU6#,80..TOY198508-198708

BLUE,BLUE

main55403-95B12-03iWU75,9#..DYN198508-198708

W/TACHOGRAPH,SHADOW GRAY,SHADOW GRAY

main55403-95B12-04iWU75,9#..TOY198508-198708

W/TACHOGRAPH,BLUE,BLUE

main55403-95B13-03iWU75,9#..DYN198508-198708

W/CLOCK,SHADOW GRAY,SHADOW GRAY

main55403-95B13-04iWU75,9#..TOY198508-198708

W/CLOCK,BLUE,BLUE

main55403-95B17-03iWU75,9#..DYN198508-198708

W/TACHOGRAPH,CLOCK,SHADOW GRAY,SHADOW GRAY

main55403-95B17-04iWU75,9#..TOY198508-198708

W/TACHOGRAPH,CLOCK,BLUE,BLUE

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-95412-03iYU6#,70,80..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55401-95412-04iYU6#,80..TOY198508-198708

BLUE,BLUE

main55401-95414-03iWU75,9#..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55401-95414-04iWU75,9#..TOY198508-198708

BLUE,BLUE

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95403iWU75,9#198409-198708

main55414-95J00iYU6#,70,80198409-198708

55425CBRACKET, METER HOOD SET, NO.1

main55425-95403×2iWU75,9#,YU6#,70,80198409-198708

55427FBRACKET, METER HOOD SET, NO.3

main55427-95401iWU75,9#,YU6#,70,80198409-198708

55441BOX, INSTRUMENT PANEL

main55441-95417-03iYU6#,70,80..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55441-95417-04iYU6#,80..TOY198508-198708

BLUE,BLUE

main55441-95418-03iWU75,9#..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55441-95418-04iWU75,9#..TOY198508-198708

BLUE,BLUE

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-95400-01iWU75,9#,YU6#,70,80198409-198708

BLACK,BLACK

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95412-03iWU75,9#,YU6#,70,80..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55501-95412-04iWU75,9#,YU6#,80..TOY198508-198708

BLUE,BLUE

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iWU75,9#,YU60,70,80198409-198708

OD=7

main90541-05080×2iWU75,9#,YU60,70,80198409-198708

OD=10

55521CCOVER, STEREO OPENING

main55521-14050-01iWU75,9#,YU6#,70,80198409-198708

BLACK,BLACK

55522BCOVER, RADIO TUNER OPENING

main55522-20040iWU75,9#,YU6#,70,80198409-198708

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-03iWU75,9#,YU60,80..DYN..(DSL,LPG)198508-198708

SHADOW GRAY,SHADOW GRAY

main55537-95010-04iWU75,9#,YU60,80..TOY..(DSL,LPG)198508-198708

BLUE,BLUE

main55537-95J00-03iWU75,9#,YU60,80..DSL,LPG198409-198508

SHADOW GRAY,SHADOW GRAY

55539COVER, SPARE SWITCH HOLE

main55539-95J00-03iWU75,9#,YU6#,70,80..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main55539-95J00-04iWU75,9#,YU6#,80..TOY198508-198708

BLUE,BLUE

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-95407iWU75,9#,YU6#,70,80198409-198708

55542BRETAINER, RADIO TUNER OPENING, NO.2

main55542-95407iYU6#,70,80198409-198708

main55542-95408iWU75,9#198409-198708

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95400-01×2iWU75,9#,YU6#,70,80198409-198708

BLACK,BLACK

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95401-01iWU75,9#,YU6#,70,80198409-198708

BLACK,BLACK

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95400-01×2iWU75,9#,YU6#,70,80198409-198708

BLACK,BLACK

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-95400-01iYU6#,70,80198409-198708

BLACK,BLACK

main55670-95401-01iWU75,9#198409-198708

BLACK,BLACK

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iWU75,9#,YU6#,70,80198409-198708

BLACK,BLACK

55950NOZZLE ASSY, DEFROSTER

main55950-95010iWU75,9#,YU6#,70,80198409-198708

RH

main55960-95010iWU75,9#,YU6#,70,80198409-198708

LH

9011906257

main90119-06257

9015950150

main90159-50150

9015950168

main90159-50168

9015950172

main90159-50172

9015950174

main90159-50174

9015960077

main90159-60077

9016750021

main90167-50021

9016850026

main90168-50026

9017905095

main90179-05095

9018305103

main90183-05103

9165640820

main91656-40820

9165640825

main91656-40825

9356015016

main93560-15016

9356055016

main93560-55016

9356815012

main93568-15012

9356855018

main93568-55018

41 parts on this diagram · 2 diagrams in section
