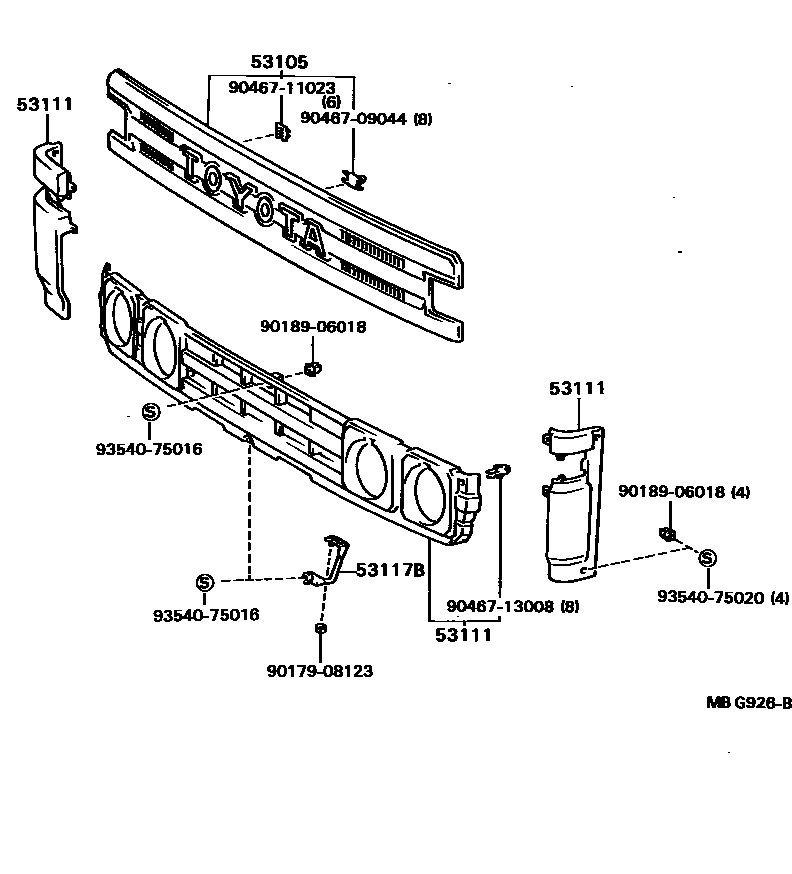

RADIATOR GRILLE

0001 1 0002 1

53105STAY, RADIATOR GRILLE, CENTER

main53105-95011iYU6#,80..TOY198508-198708

main53105-95400iYU6#,70,80..DYN198409-198708

main53105-95401iWU75,9#..DYN198409-198708

main53105-95402iWU75,9#..TOY198508-198708

53111GRILLE, RADIATOR

main53111-95025iYU6#,80..TOY198508-198708

CTR

main53111-95412iYU60,70,80198409-198508

CTR

main53111-95413iWU75,9#198409-198508

CTR

main53111-95415iWU75,9#..TOY198508-198708

CTR

main53111-95416iYU6#,70,80..DYN198508-198708

CTR

main53111-95417iWU75,9#..DYN198508-198708

CTR

main53112-95011iWU75,YU6#,80..TOY198508-198708

RH

main53112-95401iWU75,YU6#,70,80..DYN198409-198708

RH

main53112-95402iWU9#..DYN198409-198708

RH

main53112-95403iWU9#..TOY198508-198708

RH

main53113-95012iWU75,YU6#,80..TOY198508-198708

LH

main53113-95403iWU75,YU6#,70,80..DYN198409-198708

LH

main53113-95404iWU9#..DYN198409-198708

LH

main53113-95405iWU9#..TOY198508-198708

LH

53117BBRACKET, RADIATOR GRILLE, LOWER

main53117-95400iYU6#,70,80198409-198708

main53117-95402iWU75,9#..DYN198409-198708

main53117-95403iWU75,9#..TOY198508-198708

9017908123

main90179-08123

9018906018

main90189-06018

9046709044

main90467-09044

9046711023

main90467-11023

9046713008

main90467-13008

9354075016

main93540-75016

9354075020

main93540-75020

10 parts on this diagram · 2 diagrams in section
