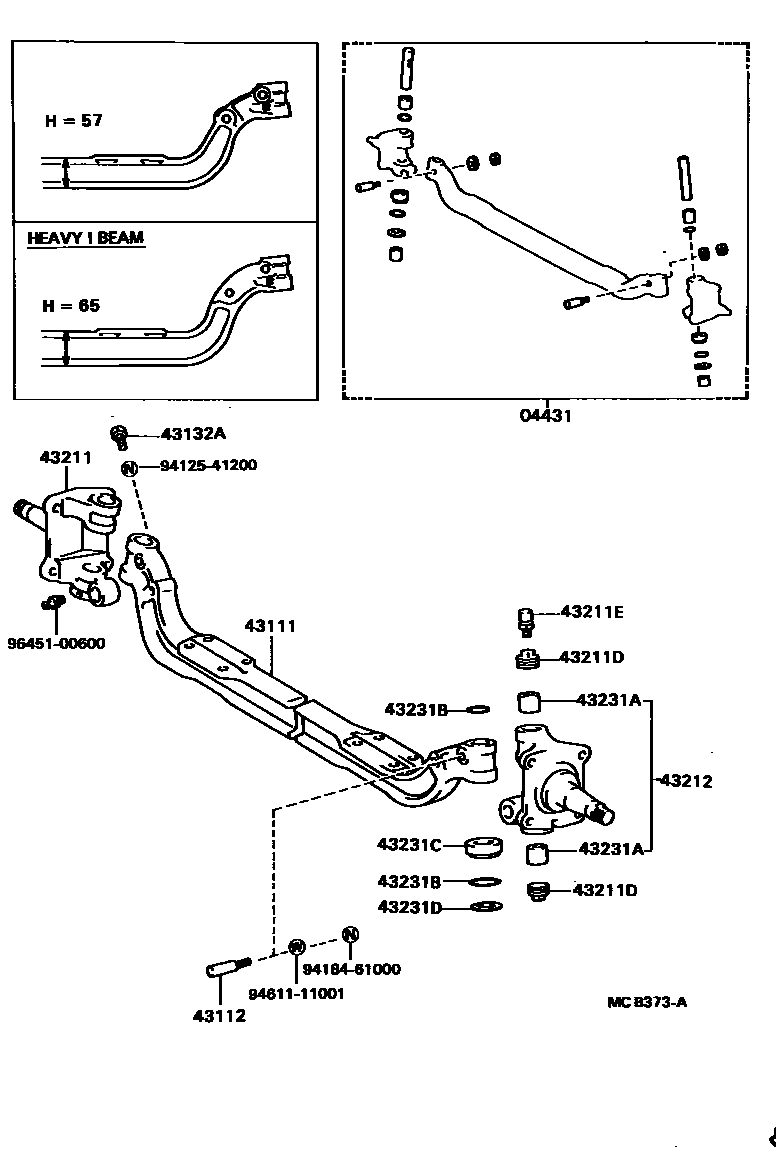

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-25020iYU6#,70,80198409-198708

main04431-36051iWU75,9#198409-198708

43111I BEAM, FRONT AXLE

main43111-36080iWU75,9#198409-198708

main43111-36090iYU60,70198409-198708

main43111-36100iYU61,80198409-198708

sub43111-36140

43112PIN, KING PIN LOCK

main43112-36020×2iYU6#,70,80198409-198708

main43112-36030×2iWU75,9#198409-198708

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001×2iYU6#,70,80198409-198708

main90106-12003×2iWU75,9#198409-198708

43211KNUCKLE, STEERING, RH

main43201-36080iYU6#,70,80198409-198708

sub43201-36090

main43201-36100iWU75,9#198409-198708

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33001×2iYU6#,70,80198409-198708

UPR

sub90345-33004

main90345-33002×2iYU6#,70,80198409-198708

LWR

sub90345-33003

43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)

main90930-03031×2iYU6#,70,80198409-198708

43212KNUCKLE, STEERING, LH

main43202-36070iYU6#,70,80198409-198708

sub43202-36080

main43202-36090iWU75,9#198409-198708

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90384-35002×2iWU75,9#198409-198708

UPR

sub90384-35013

main90384-35003×2iWU75,9#198409-198708

LWR

sub90384-35014

main90999-73086×2iYU6#,70,80198409-198708

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90311-35012×2iWU75,9#198409-198708

main96711-19028×2iYU6#,70,80198409-198708

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001×2iYU6#,70,80198409-198708

main90367-35001×2iWU75,9#198409-198708

43231DSHIM (FOR KING PIN)

main90564-28128×2iYU6#,70,80198409-198708

main90564-28129×2iYU6#,70,80198409-198708

main90564-28130×2iYU6#,70,80198409-198708

main90564-28131×2iYU6#,70,80198409-198708

main90564-28144×2iYU6#,70,80198409-198708

main90564-28145×2iYU6#,70,80198409-198708

main90564-37001×2iWU75,9#198409-198708

main90564-37002×2iWU75,9#198409-198708

main90564-37003×2iWU75,9#198409-198708

main90564-37004×2iWU75,9#198409-198708

main90564-37005×2iWU75,9#198409-198708

main90564-37006×2iWU75,9#198409-198708

main90564-37007×2iWU75,9#198409-198708

main90564-37008×2iWU75,9#198409-198708

9412541200

main94125-41200

9418461000

main94184-61000

9461111001

main94611-11001

9645100600

main96451-00600

16 parts on this diagram · 2 diagrams in section
