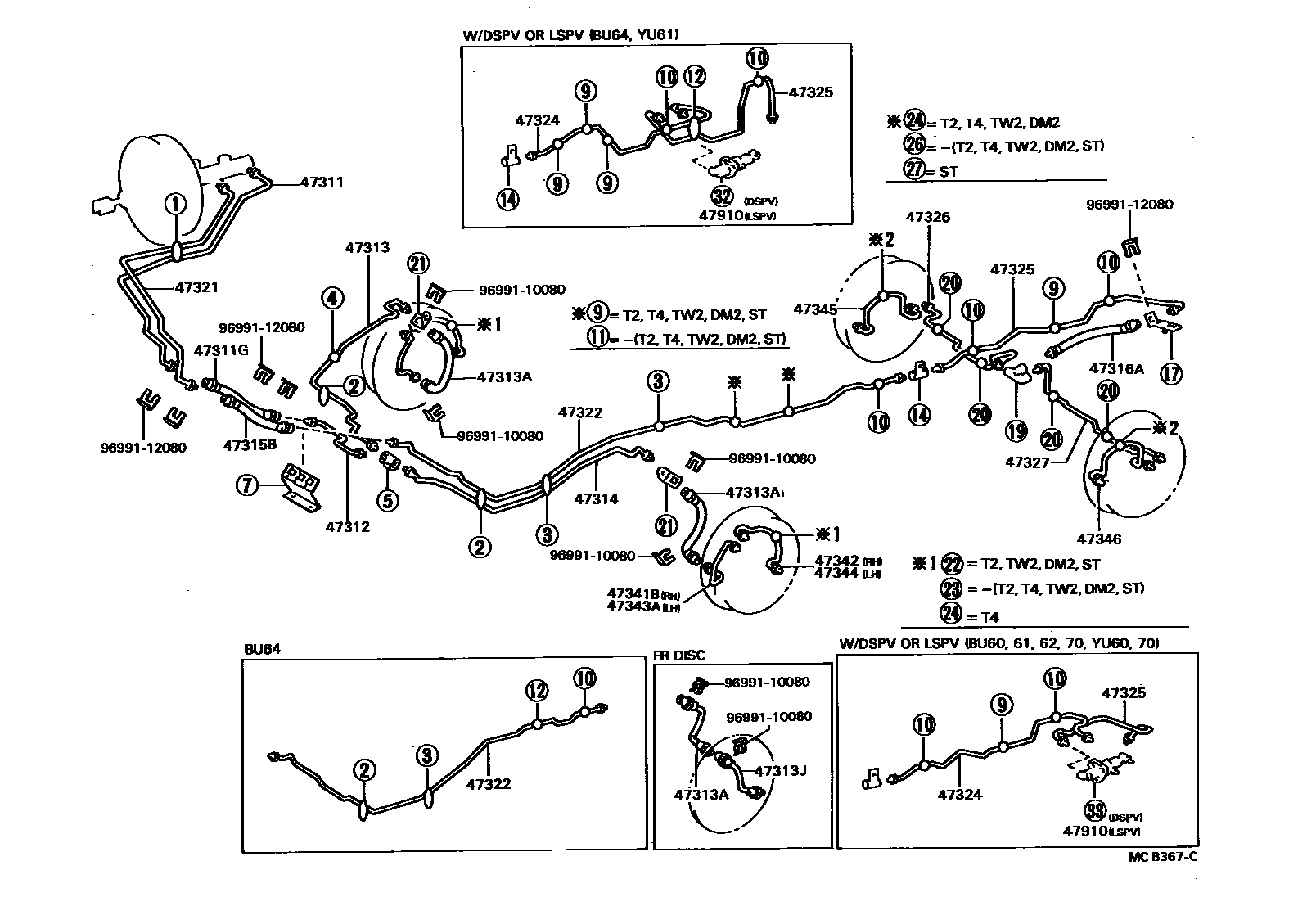

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36300iWU75,9#198409-198708

main47311-36320iYU6#,70,80198409-198708

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-33705iYU6#,70,80198409-198708

main96932-34305iWU75,9#198409-198708

47312TUBE, FRONT BRAKE, NO.2

main47312-36230iWU75,9#198409-198708

main47312-36250iYU6#,70,80198409-198708

47313TUBE, FRONT BRAKE, NO.3

main47313-36150iWU75,9#198409-198508

main47313-36160iYU60,70,80198409-198708

main47313-36170iYU61198601-198708

main47313-36190iWU75,9#198508-198708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02469×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198409-198708

main90947-02470×2iYU6#,80..(DM1,T3)..WT198409-198708

main90947-02471×2iWU75,9#198409-198708

main96940-33305×2iYU80198409-198708

FR DISC

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02431×2iYU80198409-198608

main90947-02521×2iYU80198608-198708

47314TUBE, FRONT BRAKE, NO.4

main47314-36210iWU75,9#198409-198508

main47314-36230iYU60,70,80198409-198708

main47314-36240iYU61198601-198708

main47314-36260iWU75,9#198508-198708

47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-33705iYU6#,70,80198409-198708

main96932-34305iWU75,9#198409-198708

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96912-33605iYU61198601-198708

main96912-33705iYU60..T2,TW2198409-198708

main96912-34005iYU60,70,80..SRF,T1,T3,TW1198409-198708

main96912-34105iWU75,9#198409-198708

47321TUBE, REAR BRAKE, NO.1

main47321-36200iWU75,9#198409-198708

main47321-36220iYU6#,70,80198409-198708

47322TUBE, REAR BRAKE, NO.2

main47322-36190iWU75,9#198409-198508

main47322-36200iYU61198601-198708

main47322-36240iYU60,70,80198409-198708

main47322-36280iWU75,9#198508-198708

47324TUBE, REAR BRAKE, NO.4

main47324-36120iYU60,70198409-198708

main47324-36170iYU61198601-198708

47325TUBE, REAR BRAKE, NO.5

main47325-36120iWU75,95198409-198708

main47325-36130iWU90198409-198708

main47325-36170iYU61198601-198708

W/DSPV

main47325-36180iYU60..WT198409-198708

main47325-36190iYU60,70198409-198708

W/DSPV

main47325-36240iYU80198409-198708

main47325-36250iYU61198601-198708

W/DSPV

47326TUBE, REAR BRAKE, NO.6

main47326-36100iYU60..T2,TW2198409-198708

main47326-36120iYU60..T3..WT198409-198708

main47326-36130iYU61198601-198708

main47326-36140iYU80198409-198708

main47329-36140iYU60,70..ST198409-198708

main47329-36180iWU75,9#198409-198708

47327TUBE, REAR BRAKE, NO.7

main47327-36110iYU61198601-198708

main47327-36130iYU60,70..ST198409-198708

main47327-36140iYU80198409-198708

main47327-36150iYU60..T3..WT198409-198708

main47327-36160iYU60..T2,TW2198409-198708

main47331-36210iWU75,9#198409-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36060iWU75,9#198409-198708

main47341-36070iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198409-198708

main47341-36090iYU6#,80..(DM1,T3)..WT198409-198708

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198409-198708

main47342-36030iYU6#,80..(DM1,T3)..WT198409-198708

main47342-36050iWU75,9#198409-198708

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36060iWU75,9#198409-198708

main47343-36070iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198409-198708

main47343-36090iYU6#,80..(DM1,T3)..WT198409-198708

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198409-198708

main47342-36030iYU6#,80..(DM1,T3)..WT198409-198708

main47342-36050iWU75,9#198409-198708

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36050iWU75,9#198409-198708

main47342-36060iYU60..T2,TW2198409-198708

main47345-36011iYU60,70..ST198409-198708

main47345-36040×2iYU6#,80..(DM1,T3)..WT198409-198708

47346TUBE, WHEEL CYLINDER, REAR LH

main47342-36050iWU75,9#198409-198708

main47344-36060iYU60..T2,TW2198409-198708

main47345-36011iYU60,70..ST198409-198708

main47345-36040iYU60,80..T3..WT198409-198708

47910VALVE ASSY, LOAD SENSING PROPORTIONING

main31478-30010

main47547-26010

main47910-36040

main47910-36070

9699110080

main96991-10080

9699112080

main96991-12080

24 parts on this diagram · 6 diagrams in section
