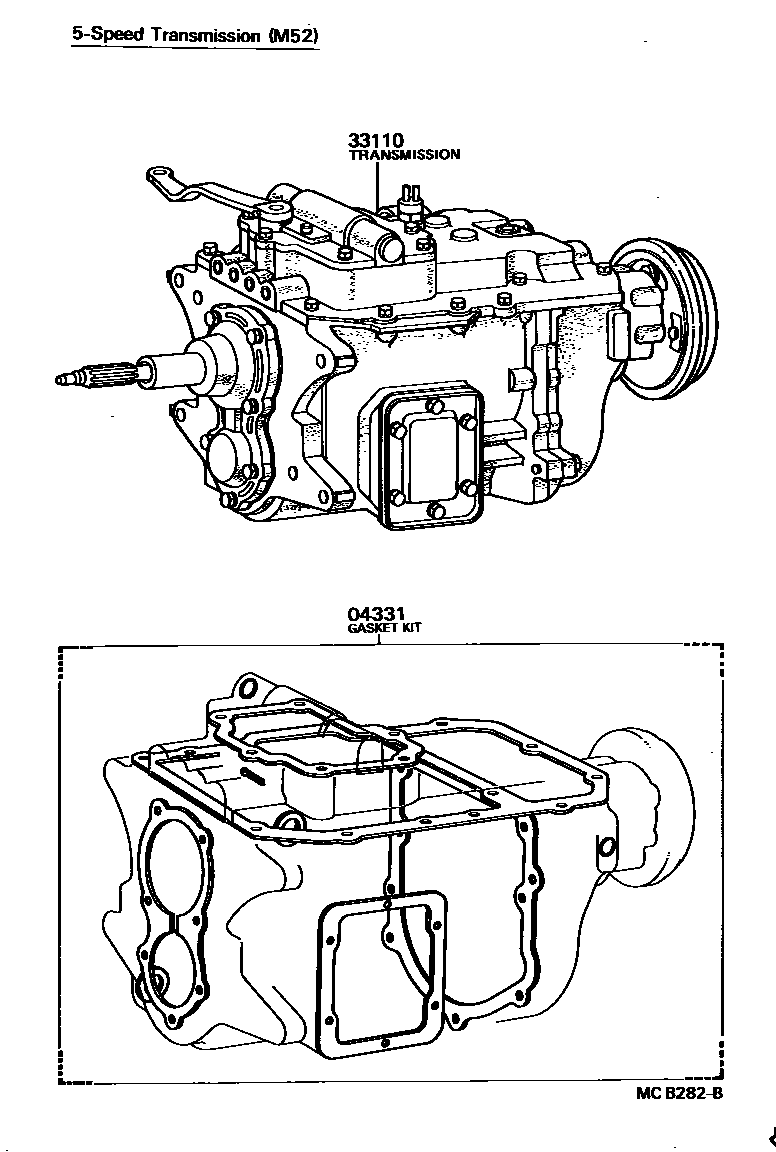

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36051iWU75,9#198409-198708

main04331-36060iYU60,70,80198409-198508

main04331-36070iYU6#,70,80198508-198708

33110TRANSMISSION ASSY, MANUAL

main33110-3C460iYU70198409-198508

main33110-3C480iYU60..ST198409-198508

*AXC=L204

main33110-3C490iYU60..ST..LPG198409-198508

*AXC=L234

main33110-3C540iYU60..T2,TW2198409-198508

*AXC=L264

main33110-3C680iYU60..T2..LPG;YU60,80..T3..WT198409-198508

*AXC=L194

main33110-3E350iYU60,70..ST198508-198708

*AXC=L204

main33110-3E360iYU6#,80..WT;YU60..ST..LPG198508-198708

main33150-36021iWU75,9#198409-198708

2 parts on this diagram · 3 diagrams in section
