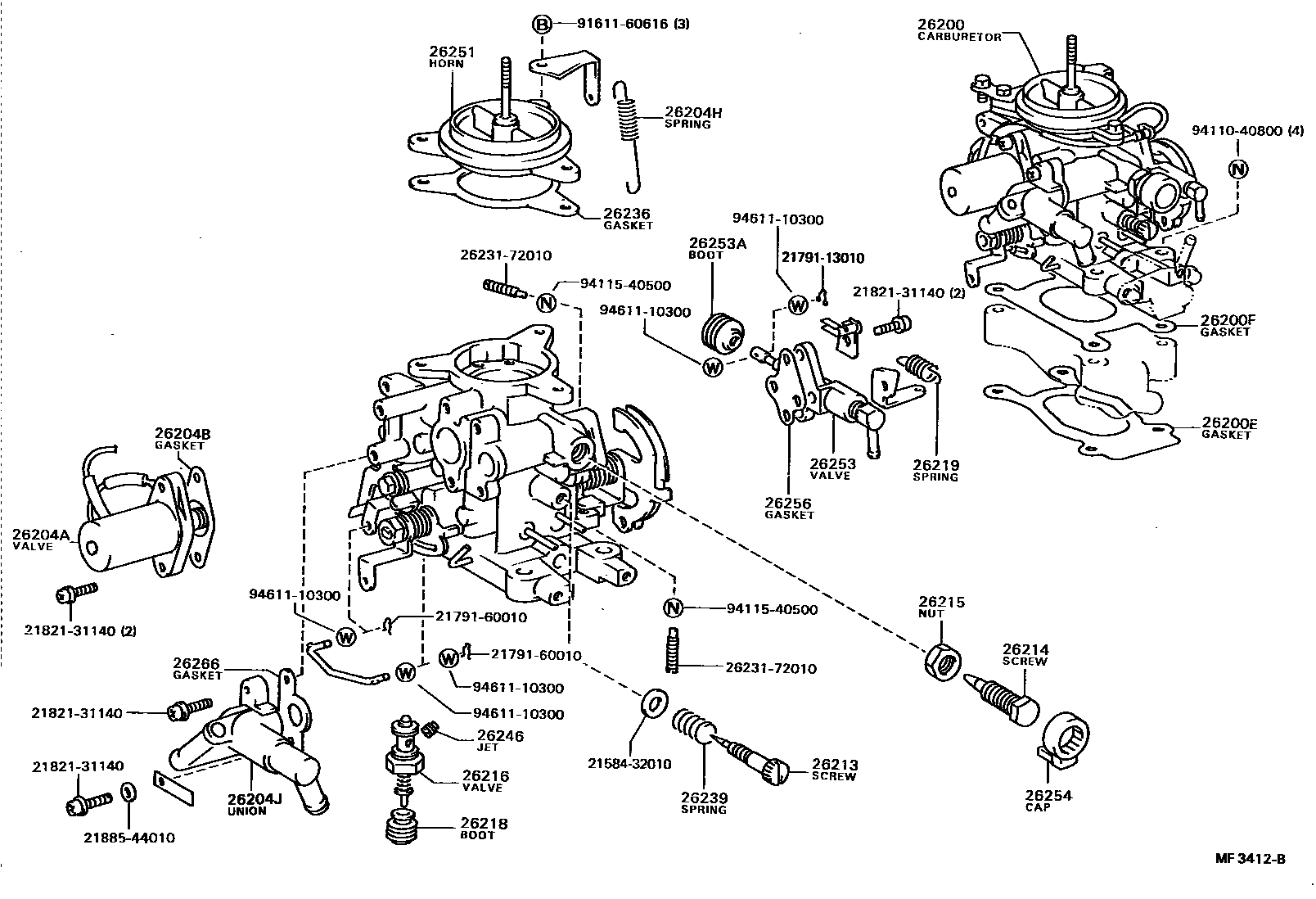

LPG CARBURETOR
26200CARBURETOR ASSY, LPG
26200EGASKET, CARBURETOR, NO.1
26200FGASKET, CARBURETOR, NO.2
26204AVALVE, THROTTLE SOLENOID(FOR LPG)
26204BGASKET, SOLENOID VALVE(FOR LPG)
26204HSPRING, THROTTLE RETURN(FOR LPG)
26204JUNION, NO.2 FUEL HOSE(FOR LPG)
26213SCREW, ADJUST
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26236GASKET, AIR HORN
26239SPRING
26246JET
26251HORN, AIR
26253VALVE, CHANGE(FOR SLOW)
26253ABOOT(FOR CHANGE VALVE)
26254CAP, POWER SCREW LIMIT
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2158432010SHIM, CHOKE ROD BELLCRANK SHAFT
main21584-32010
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2188544010
main21885-44010
2623172010SCREW(FOR LPG CARBURETOR)
main26231-72010
9161160616
main91611-60616
9411040800
main94110-40800
9411540500
main94115-40500
9461110300
main94611-10300
32 parts on this diagram · 1 diagram in section
