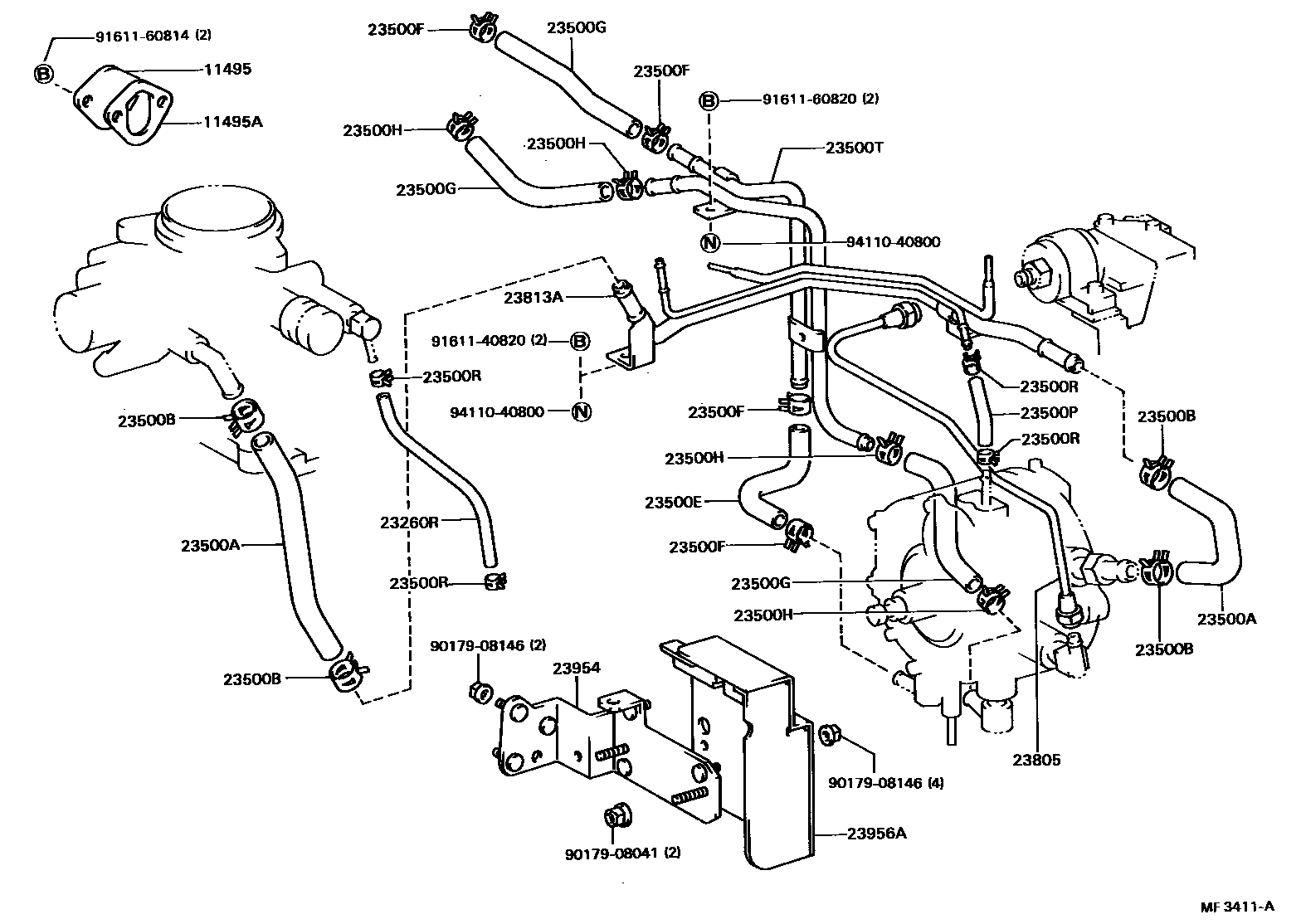

LPG(CARBURETOR) FUEL PIPE

11495PLUG, PLATE(FOR CYLINDER BLOCK)

main11495-40010i3YP..YU60,80198409-198708

11495AGASKET, FUEL PUMP(FOR CYLINDER BLOCK PLATE PLUG)

main90923-05005i3YP..YU60,80198409-198708

23260RHOSE, LPG INJECTOR

main95332-04020i3YP..YU60,80198409-198702

main95333-04020i3YP..YU60,80198702-198708

23500AHOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main23273-73040i3YP..YU60,80198409-198708

CARBURETOR SIDE

main90910-05189i3YP..YU60,80198409-198708

REGULATOR SIDE

23500BCLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main90467-20134×4i3YP..YU60,80198409-198708

23500EHOSE, WATER(FOR LPG REGULATOR INLET)

main16261-73040i3YP..YU60,80198409-198708

23500FCLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)

main90467-20005×4i3YP..YU60,80198409-198708

23500GHOSE, WATER(FOR LPG REGULATOR OUTLET)

main99555-20110i3YP..YU60,80198409-198708

main99555-20200i3YP..YU60,80198409-198708

main99555-20270i3YP..YU60,80198409-198708

23500HCLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)

main90467-20005×4i3YP..YU60,80198409-198708

23500PHOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main95332-04020i3YP..YU60,80198409-198702

main95333-04020i3YP..YU60,80198702-198708

23500RCLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main96132-30400×4i3YP..YU60,80198409-198708

23500TPIPE, WATER BY-PASS, NO.1(FOR LPG)

main16278-73040i3YP..YU60,80198409-198708

23805PIPE SUB-ASSY, LPG REGULATOR

main23805-73050i3YP..YU60,80198409-198708

23813APIPE, LPG FUEL

main23813-73040i3YP..YU60,80198409-198608

main23813-73041i3YP..YU60,80198608-198708

23954BRACKET, LPG REGULATOR

main23954-73010i3YP..YU60,80198409-198608

main23954-73011i3YP..YU60,80198608-198708

23956ACOVER, LPG REGULATOR

main23956-73010i3YP..YU60,80198409-198608

main23956-73021i3YP..YU60,80198608-198708

9017908041

main90179-08041

9017908146

main90179-08146

9161140820

main91611-40820

9161160814

main91611-60814

9161160820

main91611-60820

9411040800

main94110-40800

22 parts on this diagram · 1 diagram in section
