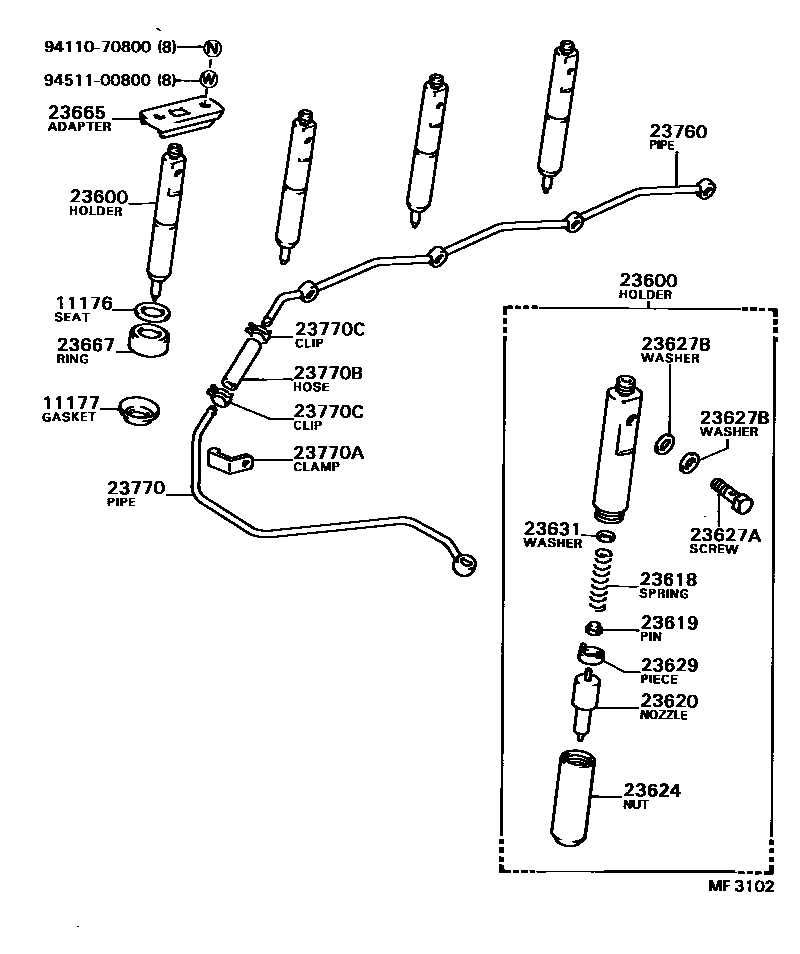

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main90564-21001×4i1W..WU75,9#198409-198708

subSZ910-11017

11177GASKET, INJECTION NOZZLE SEAT

main11177-78010×4i1W..WU75,9#198409-198708

subS2366-11140

23600HOLDER & NOZZLE SET, NOZZLE

main23600-78010×4i1W..WU75,9#198409-198708

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-78030×4i1W..WU75,9#198409-198708

23619PIN, NOZZLE HOLDER PRESSURE

main23619-78030×4i1W..WU75,9#198409-198708

23620NOZZLE ASSY

main23620-78030×4i1W..WU75,9#198409-198708

23624NUT, NOZZLE RETAINING

main23624-78030×4i1W..WU75,9#198409-198708

23627ASCREW, FOLLOW(FOR NOZZLE)

main23656-78030×4i1W..WU75,9#198409-198708

23627BWASHER, COPPER PLATE(FOR NOZZLE)

main90099-01503×8i1W..WU75,9#198409-198708

23629PIECE, DISTANCE(FOR NOZZLE)

main23659-78030×4i1W..WU75,9#198409-198708

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-78030i1W..WU75,9#198409-198708

main23631-78031i1W..WU75,9#198409-198708

main23631-78032i1W..WU75,9#198409-198708

main23631-78033i1W..WU75,9#198409-198708

main23631-78034i1W..WU75,9#198409-198708

main23631-78035i1W..WU75,9#198409-198708

main23631-78036i1W..WU75,9#198409-198708

main23631-78037i1W..WU75,9#198409-198708

main23631-78038i1W..WU75,9#198409-198708

main23631-78039i1W..WU75,9#198409-198708

main23632-78030i1W..WU75,9#198409-198708

main23632-78031i1W..WU75,9#198409-198708

main23632-78032i1W..WU75,9#198409-198708

main23632-78033i1W..WU75,9#198409-198708

main23632-78034i1W..WU75,9#198409-198708

main23632-78035i1W..WU75,9#198409-198708

main23632-78036i1W..WU75,9#198409-198708

main23632-78037i1W..WU75,9#198409-198708

main23632-78038i1W..WU75,9#198409-198708

main23632-78039i1W..WU75,9#198409-198708

main23633-78030i1W..WU75,9#198409-198708

main23633-78031i1W..WU75,9#198409-198708

main23633-78032i1W..WU75,9#198409-198708

main23633-78033i1W..WU75,9#198409-198708

main23633-78034i1W..WU75,9#198409-198708

main23633-78035i1W..WU75,9#198409-198708

main23633-78036i1W..WU75,9#198409-198708

main23633-78037i1W..WU75,9#198409-198708

main23633-78038i1W..WU75,9#198409-198708

main23633-78039i1W..WU75,9#198409-198708

main23634-78030i1W..WU75,9#198409-198708

main23634-78031i1W..WU75,9#198409-198708

main23634-78032i1W..WU75,9#198409-198708

23665ADAPTER, NOZZLE HOLDER

main22433-78010×4i1W..WU75,9#198409-198708

subS2366-51110

23667RING, PACKING, NO.2(FOR NOZZLE)

main23667-78010×4i1W..WU75,9#198409-198708

subS2366-71070

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-78010i1W..WU75,9#198409-198708

sub23708-E0090

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23762-78010i1W..WU75,9#198409-198708

23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)

main90929-01059i1W..WU75,9#198409-198708

subS7990-41950

23770BHOSE, FUEL

main90445-11066i1W..WU75,9#198409-198708

sub90038-60006

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10040×2i1W..WU75,9#198409-198708

sub96132-51000

9411070800

main94110-70800

9451100800

main94511-00800

20 parts on this diagram · 1 diagram in section
