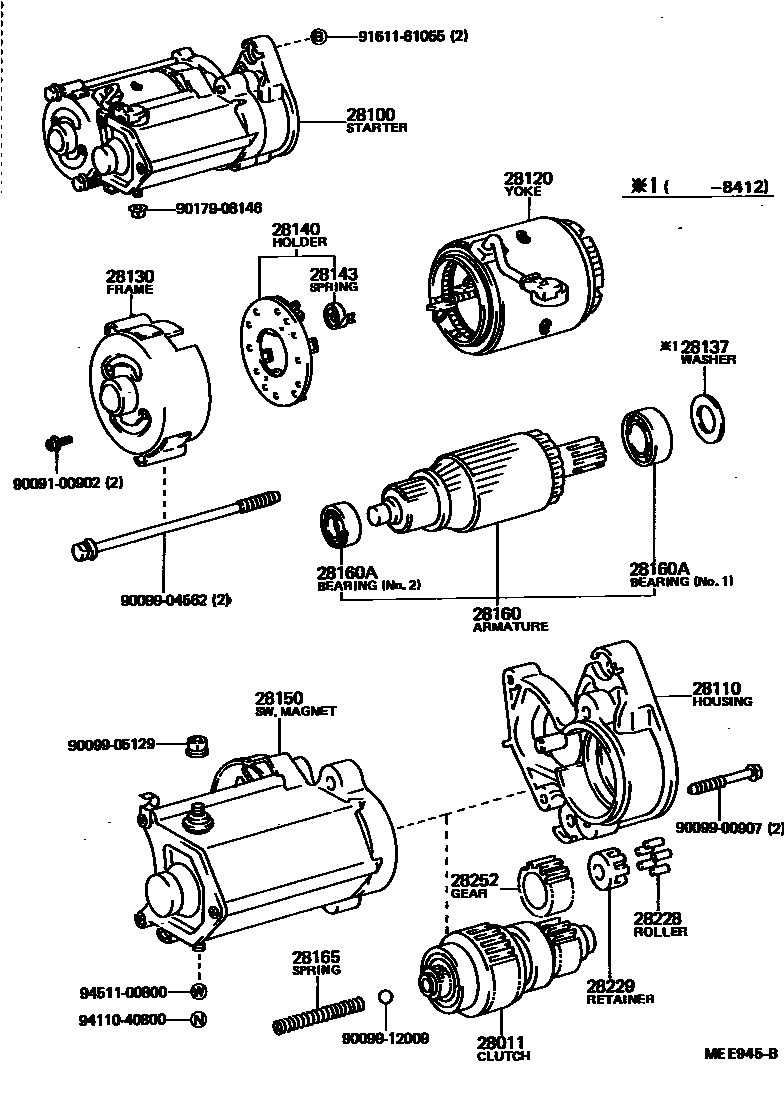

STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 124V 4.5KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i3Y#..YU6#,70,80198409-198708

12V 1.0KW,1.4KW

main28011-78011i1W..WU75,9#198409-198604

24V 4.5KW

main28011-78012i1W..WU75,9#198604-198708

24V 4.5KW

28100STARTER ASSY

main28100-72010i3Y#..YU6#,70,80198409-198708

main28100-72020i3YP..YU60,80198409-198708

main28100-78011i1W..WU75,9#198409-198708

28110HOUSING ASSY, STARTER DRIVE

main28110-72010i3Y#..YU6#,70,80198409-198708

12V 1.0KW

main28110-72020i3YP..YU60,80198409-198708

12V 1.4KW

main28115-78021i1W..WU75,9#198409-198708

24V 4.5KW,RR

main28115-78030i1W..WU75,9#198409-198708

24V 4.5KW,FR

28120YOKE ASSY, STARTER

main28120-15090i3YP..YU60,80198409-198708

12V 1.4KW

main28120-26070i3Y#..YU6#,70,80198409-198708

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-72010i3Y#..YU6#,70,80198409-198708

12V 1.0KW

main28130-72020i3YP..YU60,80198409-198708

12V 1.4KW

28137WASHER, FELT, STARTER

main90099-02323i3Y#..YU60,70,80198409-198412

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i3YP..YU60,80198409-198708

12V 1.4KW

main28140-26070i3Y#..YU6#,70,80198409-198708

12V 1.0KW

main28140-78010i1W..WU75,9#198409-198708

24V 4.5KW

28143SPRING, STARTER BRUSH

main90099-17112×4i3Y#..YU6#,70,80198409-198708

12V 1.0KW,1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34080i3Y#..YU6#,70,80198409-198708

12V 1.0KW

main28150-72020i3YP..YU60,80198409-198708

12V 1.4KW

main28150-78021i1W..WU75,9#198409-198708

24V 4.5KW

28160ARMATURE ASSY, STARTER

main28160-15090i3YP..YU60,80198409-198708

12V 1.4KW

main28160-26070i3Y#..YU6#,70,80198409-198708

12V 1.0KW

main28160-78010i1W..WU75,9#198409-198708

24V 4.5KW

28160ABEARING, STARTER ARMATURE

main28253-45020i3Y#..YU6#,70,80198409-198708

12V 1.0KW,NO.2

main90099-10113i3Y#..YU6#,70,80198409-198708

12V 1.0KW,NO.1

main90099-10143i3YP..YU60,80198409-198708

12V 1.4KW,NO.1

main90099-10144i3YP..YU60,80198409-198708

12V 1.4KW,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i3Y#..YU6#,70,80198409-198708

12V 1.0KW,1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3Y#..YU6#,70,80198409-198708

12V 1.0KW,1.4KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i3Y#..YU6#,70,80198409-198708

12V 1.0KW,1.4KW

28252GEAR, STARTER IDLE

main28254-45020i3Y#..YU6#,70,80198409-198708

12V 1.0KW,1.4KW

9009100902

main90091-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

24 parts on this diagram · 3 diagrams in section
