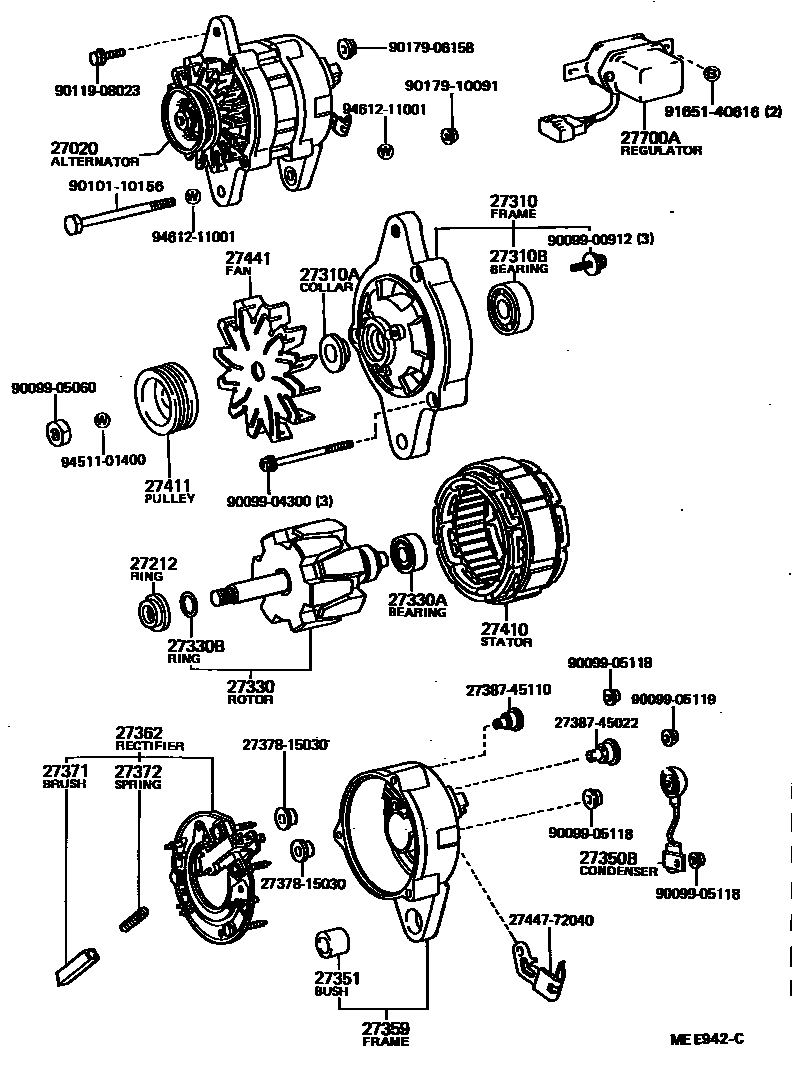

ALTERNATOR

0001 112V 45A 0002 124V 30A

27020ALTERNATOR ASSY

main27020-72050i3Y#..YU6#,70,80198409-198708

main27040-78020i1W..WU75,9#198409-198708

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i3Y#..YU6#,70,80198409-198708

12V 45A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-72030i3Y#..YU6#,70,80198409-198708

12V 45A

main27310-78020i1W..WU75,9#198409-198708

24V 30A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i3Y#..YU6#,70,80198409-198708

12V 45A

main27412-78010i1W..WU75,9#198409-198708

24V 30A

subS2741-21130

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i3Y#..YU6#,70,80198409-198708

12V 45A

sub90099-10223

27330ROTOR ASSY, ALTERNATOR

main27330-45020i3Y#..YU6#,70,80198409-198708

12V 45A

main27330-78030i1W..WU75,9#198409-198708

24V 30A

subS2733-01470

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i3Y#..YU6#,70,80198409-198708

12V 45A

sub90099-10116

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i3Y#..YU6#,70,80198409-198708

12V 45A

27350FRAME ASSY, RECTIFIER END

main27350-78010i1W..WU75,9#198409-198708

24V 30A

27350BCONDENSER, ALTERNATOR

main27355-78010i1W..WU75,9#198409-198708

24V 30A

main90099-52065i3Y#..YU6#,70,80198409-198708

12V 45A

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3Y#..YU6#,70,80198409-198708

12V 45A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-72030i3Y#..YU6#,70,80198409-198708

12V 45A

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i3Y#..YU6#,70,80198409-198708

12V 45A

27371BRUSH, ALTERNATOR

main27371-31011i3Y#..YU6#,70,80198409-198708

12V 45A

main27373-78010i1W..WU75,9#198409-198708

24V 30A

subS2737-11150

27372SPRING, ALTERNATOR BRUSH

main27372-31011i3Y#..YU6#,70,80198409-198708

12V 45A

main27372-78010i1W..WU75,9#198409-198708

24V 30A

27410STATOR ASSY, ALTERNATOR

main27410-38120i3Y#..YU6#,70,80198409-198708

12V 45A

main27410-78030i1W..WU75,9#198409-198708

24V 30A

subS2741-01580

27411PULLEY, ALTERNATOR

main27411-72040i3Y#..YU6#,70,80198409-198708

12V 45A

main27430-78020i1W..WU75,9#198409-198708

24V 30A

subS2743-11350

27441FAN, ALTERNATOR

main27441-34030i3Y#..YU6#,70,80198409-198708

12V 45A

main27441-78010i1W..WU75,9#198409-198708

24V 30A

subS2744-11140

27700AREGULATOR ASSY, GENERATOR

main27700-56060i3Y#..YU6#,70,80198409-198708

12V 45A

sub27700-72010

main27700-78010i1W..WU75,9#198409-198708

24V 30A

subS2770-01370

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744772040CLIP, ALTERNATOR CORD

main27447-72040

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110156

main90101-10156

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9165140616

main91651-40616

9451101400

main94511-01400

9461211001

main94612-11001

35 parts on this diagram · 2 diagrams in section
