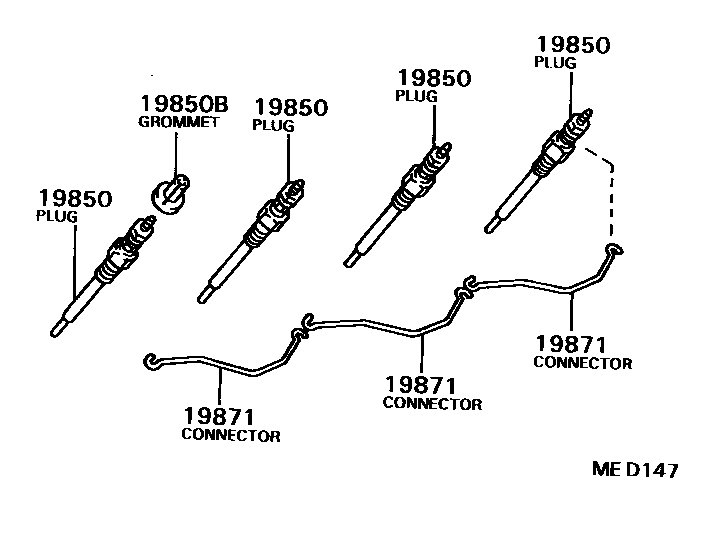

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-78010i1W..WU75,9#198409-198708

sub19850-78011

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1W..WU75,9#198409-198708

19871CONNECTOR, GLOW PLUG NO.1

main19871-78010i1W..WU75,9#198409-198708

sub19871-78021

3 parts on this diagram · 2 diagrams in section
