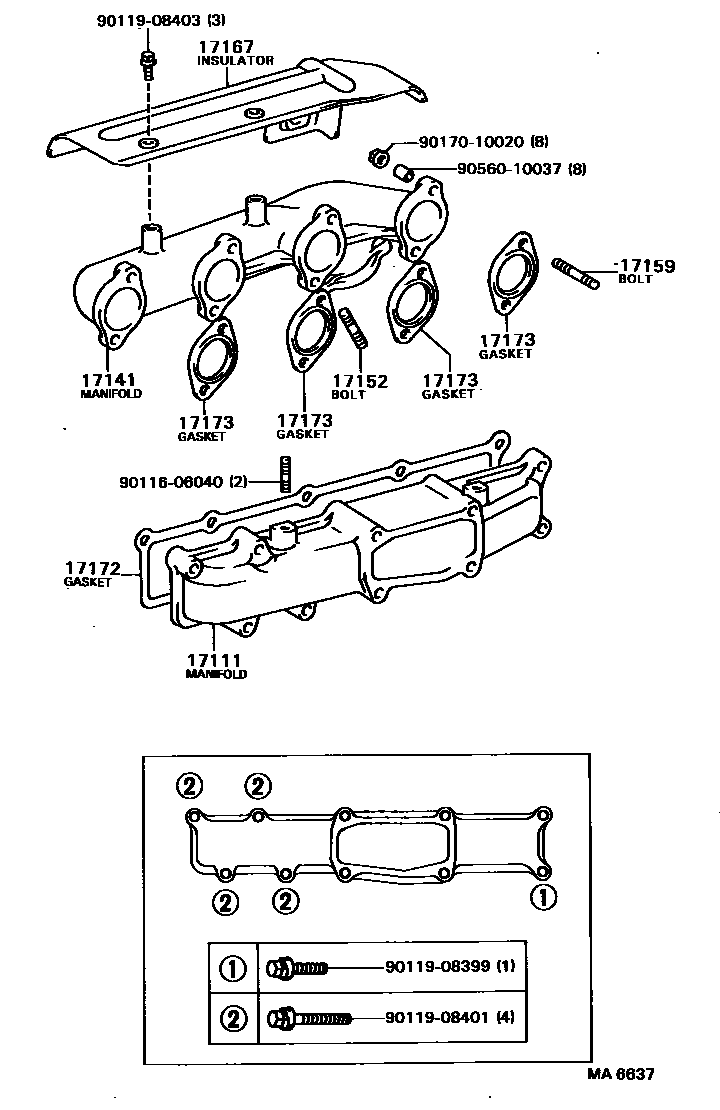

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17111-71010i3Y..YU6#,70198409-198708

main17111-72010i3YP..YU60,80198409-198503

main17111-72011i3YP..YU60,80198503-198708

main17111-78010i1W..WU75,9#198409-198708

17141MANIFOLD, EXHAUST

main17141-71020i3Y..YU6#,70198409-198708

main17141-72010i3YP..YU60,80198409-198708

main17141-78010i1W..WU75,9#198409-198708

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i3Y#..YU6#,70,80198409-198708

main90116-10081i1W..WU75,9#198409-198409

main90116-10110i1W..WU75,9#198409-198708

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i3Y#..YU6#,70,80198409-198708

main90116-10077i1W..WU75,9#198409-198708

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-56020i1W..WU75,9#198409-198708

main17167-71020i3Y..YU6#,70198409-198708

main17167-72010i3YP..YU60,80198409-198708

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-71010i3Y#..YU60,70,80198409-198506

main17172-71011i3Y#..YU60,70,80198506-198708

main17172-73010i3Y..YU6#,70198508-198708

main17172-78010i1W..WU75,9#198409-198708

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78010i1W..WU75,9#198409-198708

9011606040

main90116-06040

9011908399

main90119-08399

9011908401

main90119-08401

9011908403

main90119-08403

9017010020

main90170-10020

9056010037

main90560-10037

13 parts on this diagram · 2 diagrams in section
