ENGINE OIL COOLER

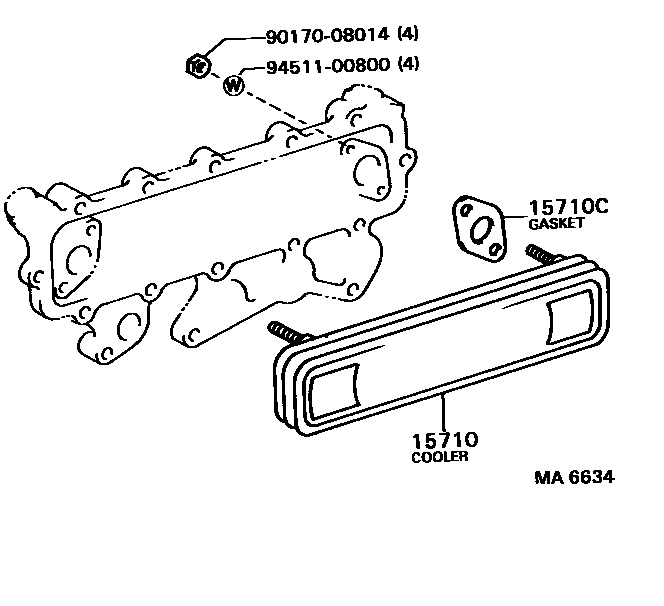

Parts diagram

15710COOLER ASSY, OIL

main15710-78010i198409-198708

15710CGASKET(FOR OIL COOLER)

main15725-78010×2i198409-198708

9017008014

main90170-08014

9451100800

main94511-00800

4 parts on this diagram · 1 diagram in section
